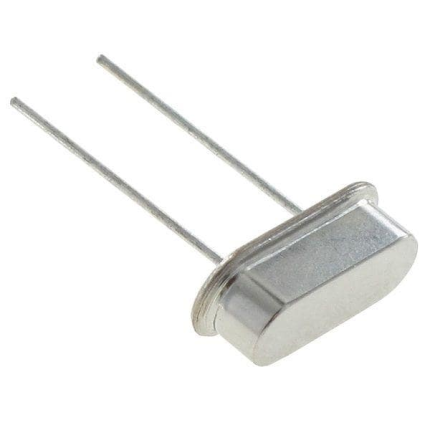

12.000MHz Low Profile Crystal
- Stable 12.000MHz frequency for digital timing
- Low-profile design suitable for tight PCB layouts
- High accuracy and low aging drift
- Compatible with most microcontrollers and USB ICs
- Ideal for embedded, communication, and timing circuits
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
5,00 EGP
11
People watching this product now!
Payment Methods:
Description
12.000MHz Low Profile Crystal
- Frequency: 12.000 MHz
- Type: Low Profile Quartz Crystal
- Package Type: Through-hole or SMD (depending on the variant)
- Load Capacitance: Typically around 18pF (check datasheet for specific details)
- Resonance Mode: Fundamental or Overtone (depending on the crystal type)
- Operating Temperature Range: -20°C to +70°C (varies by manufacturer)
- Applications: Oscillators, clock generation, microcontroller timing, frequency synthesis, RF circuits, and communication systems.
نظرة عامة ومواصفات المنتج — بالعربية
12.000MHz Low Profile Crystal متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Basic Electronic Components وCrystal Oscillators، بسعر 5,00 EGP. كود المنتج لدينا: EK1243. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Name: 12.000MHz Low Profile Crystal
- Frequency: 12.000MHz
- Type: HC-49S (Low Profile)
- Load Capacitance: 20pF
- Frequency Tolerance: ±20ppm
- Frequency Stability: ±20ppm
- Operating Mode: Fundamental
- Operating Temperature: -20°C to +70°C
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Basic Electronic Components في إكوسترا.
Specification
Specification
| WeightWeight | 1 g |
|---|---|
| Dimensions | 1,15 × 0,45 × 0,4 cm |
| Product Name | 12.000MHz Low Profile Crystal |
| Frequency | 12.000MHz |
| Type | HC-49S (Low Profile) |
| Load Capacitance | 20pF |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±20ppm |
| Operating Mode | Fundamental |
| Operating Temperature | -20°C to +70°C |
| Terminal Type | Through-Hole |
| Material | Quartz Crystal |
