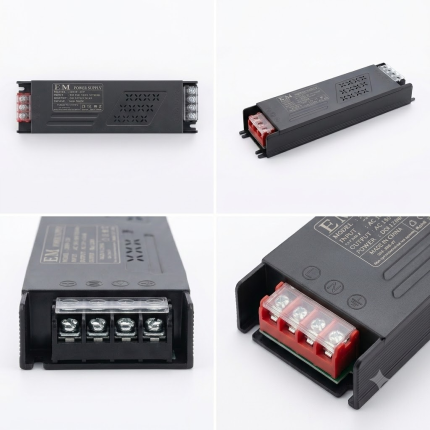

12V 200W LED Power Supply Surge Protected
12V 200W LED Power Supply Surge Protected
1. Power: 200W
2. Output Voltage: 12V DC
3. Output Current: 16.6A (Max)
4. Efficiency: ≥85%
5. Cooling: Fanless (Natural Convection)
6. Certifications: CE | RoHS
Apple Shopping Event
300,00 EGP
Payment Methods:
Description
This 12V 200W LED Power Supply is a switching mode power supply (SMPS) delivering a fixed 12V DC output at up to 16.6A. Input accepts either 110V AC or 220V AC via a selectable switch.
Output voltage can be adjusted within ±10% (approximately 10.8V–13.2V), with efficiency rated at 85% or higher. Protection covers surge, short circuit, overload, and overvoltage, with fanless natural convection cooling through a perforated aluminum case, operating across -20°C to 60°C.
Connected via a screw terminal block, this unit carries CE and RoHS certification, suited to LED strip lighting, CCTV systems, 3D printers, and general industrial automation.
Features:
- Fixed 12V DC output, up to 16.6A (200W)
- Dual input voltage: 110V AC / 220V AC selectable
- ±10% adjustable output voltage
- Efficiency ≥85%
- Surge, short circuit, overload, overvoltage protection
- Fanless natural convection cooling
- Aluminum vented metal case
- CE and RoHS certified
نظرة عامة ومواصفات المنتج — بالعربية
12V 200W LED Power Supply Surge Protected متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Power Supply، بسعر 300,00 EGP. كود المنتج لدينا: EK2012. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Power: 200W
- جهد الخرج: 12V DC
- Output Current: 16.6A (Max)
- Input Voltage: 110V AC / 220V AC (Selectable)
- Supply Type: Switching Mode Power Supply (SMPS)
- Shell Material: Aluminum / Vented Metal Case
- Cooling Type: Natural Convection (Fanless) / Perforated Heat Dissipation
- Key Protections: Surge / Short Circuit / Overload / Overvoltage
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Power Supply في إكوسترا.
Specification
Specification
| WeightWeight | 60 g |
|---|---|
| Dimensions | 7 × 5 × 3 cm |
| Power | 200W |
| Output Voltage | 12V DC |
| Output Current | 16.6A (Max) |
| Input Voltage | 110V AC, 220V AC (Selectable) |
| Supply Type | Switching Mode Power Supply (SMPS) |
| Shell Material | Aluminum, Vented Metal Case |
| Cooling Type | Natural Convection (Fanless), Perforated Heat Dissipation |
| Key Protections | Surge, Short Circuit, Overload, Overvoltage |
| Adjustable Output Voltage Range | ±10% (10.8V~13.2V) |
| Efficiency | ≥85% |
| Operating Temperature | -20°C ~ 60°C |
| Terminal Type | Screw Terminal Block |
| Certifications | CE, RoHS |
