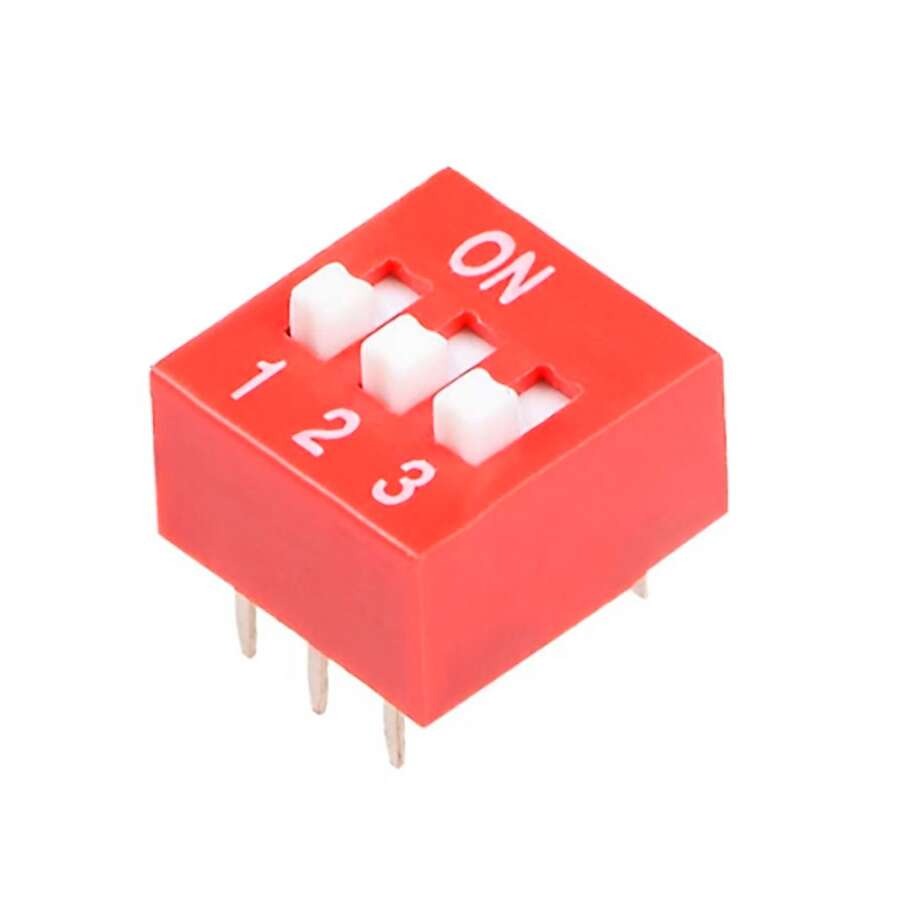

3 Position DIP Switch
- 3 individual SPST slide switches in a single DIP package
- 2.54mm pitch – perfect for breadboards and PCBs
- Clear ON/OFF labels for easy configuration
- Compact, low-profile design for tight spaces
- 25mA, 24V DC rated with ≤50mΩ contact resistance
- -20°C to +70°C operating temperature range
- Ideal for address setting, logic input, configuration
- Through-hole mount – microcontroller & embedded projects ready
Apple Shopping Event
6,00 EGP
Payment Methods:
Description
The 3 Position DIP Switch is a compact and reliable switch used for adjusting configuration settings in electronic circuits. This switch allows for easy manual control, enabling or disabling specific features in your project. With three distinct positions, it’s ideal for setting binary options or selecting between different operating modes.
Specifications:
- Number of Positions: 3
- Type: DIP (Dual Inline Package)
- Mounting Style: Through-hole
- Current Rating: Typically 0.1A
- Voltage Rating: Up to 12V DC
- Contact Resistance: Low for reliable performance
- Material: Durable plastic housing with gold-plated contacts for corrosion resistance
- Dimensions: Standard 2.54mm pitch
- Package: Single switch in a row of 3 positions
Key Features:
- Compact Design: Saves space while offering three functional positions
- Easy Configuration: Perfect for setting options like on/off, mode selection, or binary choices
- Durability: Long-lasting switch with low contact resistance
- Wide Application: Ideal for electronic projects, circuit boards, and prototypes
- User-Friendly: Easy to use for both beginners and advanced electronics enthusiasts
The 3 Position DIP switch is widely used in embedded systems, microcontroller projects, and devices that require manual configuration without needing software adjustments.
نظرة عامة ومواصفات المنتج — بالعربية
3 Position DIP Switch متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Basic Electronic Components وElectronic Switches، بسعر 6,00 EGP. كود المنتج لدينا: EK1719. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Type: DIP (Dual In-line Package) Switch
- Number Of Positions: 3
- Switch Type: ON/OFF
- طريقة التثبيت: Through-Hole PCB Mount
- Operating Voltage: 30 V DC / 250 V AC (typical)
- Operating Current: 25 mA / 50 mA (depends on model)
- Contact Material: Phosphor Bronze with Gold Plating (typical)
- Body Material: Plastic
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Basic Electronic Components في إكوسترا.
Specification
Specification
| WeightWeight | 2 g |
|---|---|
| Dimensions | 1 × 0,6 × 0,4 cm |
| Type | DIP (Dual In-line Package) Switch |
| Number of Positions | 3 |
| Switch Type | ON/OFF |
| Mounting Type | Through-Hole PCB Mount |
| Operating Voltage | 30 V DC / 250 V AC (typical) |
| Operating Current | 25 mA / 50 mA (depends on model) |
| Contact Material | Phosphor Bronze with Gold Plating (typical) |
| Body Material | Plastic |
| Actuator Type | Slide |
| Applications | Address Selection, Configuration Settings, Arduino / Microcontroller Projects, Electronic Devices |
| Package Contents | 1× 3-Position DIP Switch |
