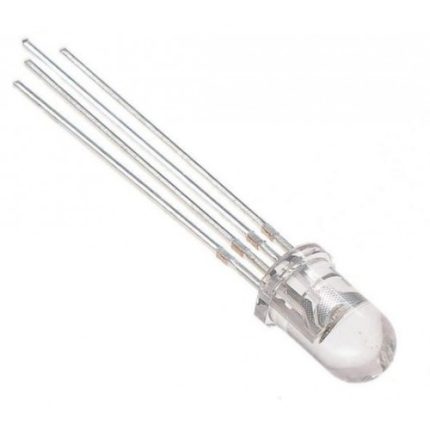

5mm RGB LED (Common Cathode)
- 🌈 5mm RGB LED with common cathode configuration
- 🔴🟢🔵 Separate R/G/B pins for full color mixing
- ⚡ Works great with 3.3V/5V microcontrollers (with resistors)
- 🎚️ Use PWM to control brightness and create effects
- 🧩 Ideal for indicators, decorative lighting, and DIY projects
- 📦 Standard 5mm through-hole package for easy soldering
- 🛠️ Breadboard friendly—quick prototyping
- ✅ Perfect for Arduino, ESP32, and electronics learning
Apple Shopping Event
4,00 EGP
Payment Methods:
Description
Description:
This set pieces 5mm RGB LEDs features both common cathode and common anode configurations. These tri-color emitting diodes offer vibrant, full-color display options for your DIY electronics projects, lighting designs, or displays. Available in both diffused and transparent highlight styles, these LEDs provide bright, clear light outputs with customizable color mixing.
Short Specification:
-
LED Type: 5mm RGB Tri-Color
-
Configuration: Common Cathode or Common Anode
-
Quantity: 100 pieces
-
Color Options: Red, Green, Blue (RGB)
-
Light Style: Diffused or Transparent Highlight
-
Forward Voltage: 2.0V (Red), 3.2V (Green/Blue)
-
Current: 20mA per LED
-
Mounting Type: Through-hole
-
Size: 5mm diameter
-
Application: Ideal for color mixing, lighting displays, and custom lighting solutions
Application:
Perfect for LED displays, decorative lighting, DIY projects, Arduino-based projects, and creating colorful lighting effects in models, robots, and visual displays.
Features:
-
Tri-color RGB LED for dynamic color changes
-
Available in common cathode and anode types
-
Diffused or transparent lens options for different lighting effects
-
Long-lasting, energy-efficient lighting solution
-
Suitable for a variety of custom electronics and lighting applications
نظرة عامة ومواصفات المنتج — بالعربية
5mm RGB LED (Common Cathode) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم LEDs and Indicators، بسعر 4,00 EGP. كود المنتج لدينا: EK1860. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- نوع الليد: 5mm RGB
- Configuration: Common Cathode
- Colors: Red, Green, Blue
- Forward Voltage: Red: 2.0V, Green: 3.0V, Blue: 3.0V (typical)
- Forward Current: 20mA (per color)
- Luminous Intensity: Red: 800–1200 mcd, Green: 500–1000 mcd, Blue: 200–400 mcd (typical)
- زاوية الرؤية: 20°–30°
- الخامة: Plastic
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من LEDs and Indicators في إكوسترا.
Specification
Specification
| WeightWeight | 1 g |
|---|---|
| Dimensions | 0,5 × 0,3 × 0,3 cm |
| LED Type | 5mm RGB |
| Configuration | Common Cathode |
| Colors | Red, Green, Blue |
| Forward Voltage | Red: 2.0V, Green: 3.0V, Blue: 3.0V (typical) |
| Forward Current | 20mA (per color) |
| Luminous Intensity | Red: 800–1200 mcd, Green: 500–1000 mcd, Blue: 200–400 mcd (typical) |
| Viewing Angle | 20°–30° |
| Material | Plastic |
| Operating Temperature | -20°C to +80°C |
