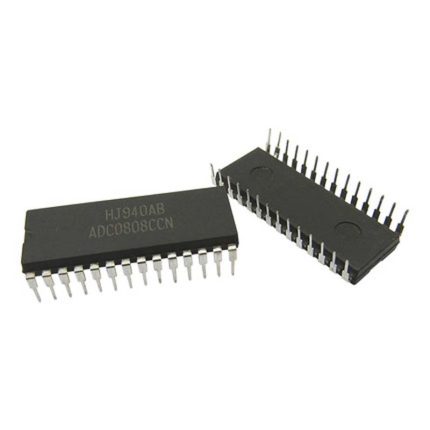

ADC0808CCN PDIP-28 Analog to Digital Converter-ADC
✅ 8-bit ADC with 8 input channels ✅ Parallel 8-bit digital output ✅ Single +5V power supply operation ✅ Fast conversion (~100 µs) ✅ Standard 28-pin PDIP package
The ADC0808CCN PDIP-28 Analog to Digital Converter-ADC is a µP compatible Analog-to-digital Converter (ADC) with 8-channel multiplexer. The 8-bit A/D converter uses a successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register.
The 8-channel multiplexer can directly access any of 8-single-ended analog signals. The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability and consumes minimal power. These features make this device ideally suited to applications from a process.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.
Features:
Easy interface to all microprocessors 8 Bits Resolution
Total Unadjusted Error ±½ LSB and ±1 LSB
Low Power: 15 mW
Conversion Time: 100 μs
Operates ratiometrically or with 5VDC or analog span adjusted voltage reference
No zero or full-scale adjust required
Green product and no Sb/Br
Applications: Automation & Process Control, Signal Processing
Package Includes:
1 x ADC0808CCN PDIP-28 Analog to Digital Converter-ADC
نظرة عامة ومواصفات المنتج — بالعربية
ADC0808CCN PDIP-28 Analog to Digital Converter-ADC متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم ADC and DAC ICs وSemiconductor ICs، بسعر 120,00 EGP. كود المنتج لدينا: EK798. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
Product Name: ADC0808CCN – PDIP-28 Analog to Digital Converter (ADC)
Type: Analog-to-Digital Converter (ADC)
الموديل: ADC0808CCN
Package Type: PDIP-28
Resolution: 8-Bit
Input Channels: 8 Single-Ended or 4 Differential
Conversion Time: 100 μs (typical)
Operating Voltage: 5 V DC
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
