DC 3-6V High Voltage Step up/Booster Module
1. Input Voltage: 3V ~ 6V DC
2. Input Current: 2A ~ 5A
3. High Voltage Output: Up to 400kV (Pulse DC)
4. Discharge Distance: 10mm ~ 20mm

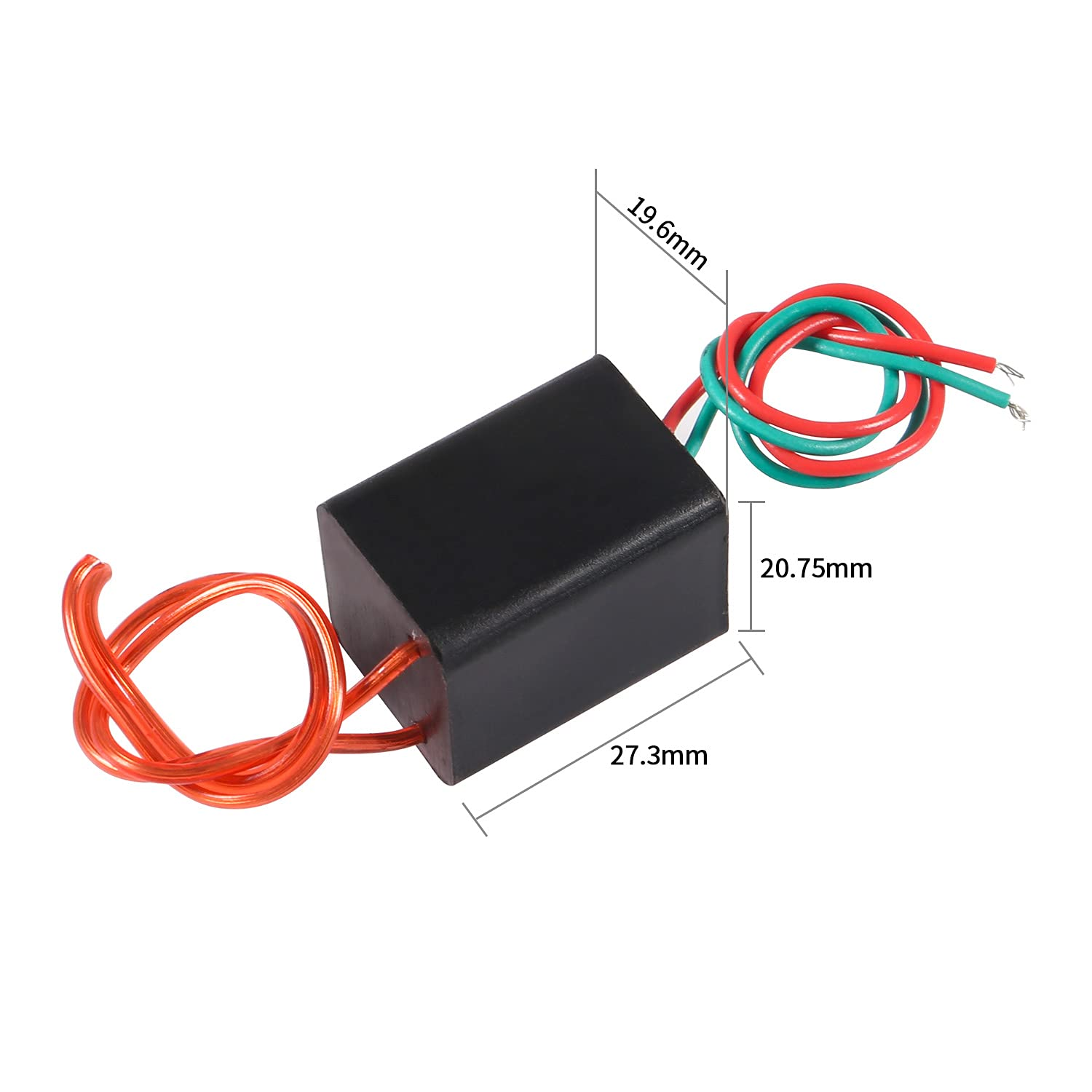

5. Dimensions: 27.3mm x 19.6mm x 20.75mm
This DC 3–6V High Voltage Step-Up/Booster Module is a pulse generator that converts a low 3V–6V DC input into a high-voltage pulsed DC output, drawing 2A to 5A of input current to generate discharge arcs of up to 400kV.
Input wiring uses a thin red wire for positive and a thin green wire for negative, while the high-voltage output is carried on thick translucent wires designed for arc discharge. At full output, the discharge distance is typically 10mm to 20mm.
The compact module measures 27.3mm x 19.6mm x 20.75mm and is fully epoxy resin potted, which provides insulation and shock resistance around the internal high-voltage components.
Because this module generates a genuine high-voltage arc, test the discharge distance starting from short to long, and avoid running it continuously for more than a few seconds at a time to prevent damaging the internal coils.
Features:
Pulsed high-voltage output up to 400kV
Input: 3V–6V DC at 2A–5A
Discharge distance: 10mm–20mm
Compact size: 27.3mm x 19.6mm x 20.75mm
Epoxy resin potted for insulation and shock resistance
Suited for DIY electronic lighters and spark gap experiments
