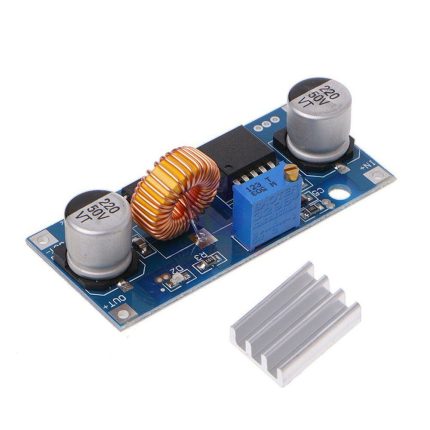

DC DC adjustable voltage converter 5A XL4015 With Heat Sink
- Adjustable output voltage via onboard potentiometer
- High output current up to 5A (4A recommended)
- Built-in heat sink for efficient cooling
- High efficiency up to 96%
- Overcurrent and thermal protection
- Stable and reliable power conversion
- LED indicator for power status
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
100,00 EGP
11
People watching this product now!
Payment Methods:
Description
A high-efficiency DC-DC step-down (buck) converter module based on the XL4015 chip, designed to provide stable and adjustable output voltage up to 5A. Equipped with a heat sink for improved thermal performance, making it ideal for power supply applications, DIY electronics, and battery-powered systems.
Features:
- Adjustable output voltage with onboard potentiometer
- High current output up to 5A (recommended ≤4A for continuous use)
- Built-in heat sink for better heat dissipation
- High efficiency up to 96%
- Overcurrent and thermal protection
- LED indicator for power status
Specifications:
- Model: XL4015 DC-DC Buck Converter
- Input Voltage: 5V – 36V DC
- Output Voltage: 1.25V – 32V DC (adjustable)
- Output Current: 5A max (4A recommended)
- Conversion Efficiency: Up to 96%
- Switching Frequency: 180 kHz
- Operating Temperature: -40°C to +85°C
- Cooling: Aluminum heat sink
- Applications: Power supply modules, battery chargers, LED drivers, DIY electronics
نظرة عامة ومواصفات المنتج — بالعربية
DC DC adjustable voltage converter 5A XL4015 With Heat Sink متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Tools، بسعر 100,00 EGP. كود المنتج لدينا: EK1959. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Module Type: DC-DC Step-Down (Buck) Converter
- Main Chip: XL4015
- Input Voltage: 8V ~ 36V DC
- جهد الخرج: 1.25V ~ 32V DC (Continuously Adjustable)
- Output Current: Up to 5A (Heatsink required for continuous draw > 3A)
- Output Power: 75W (Maximum)
- Conversion Efficiency: Up to 96%
- Switching Frequency: 180 KHz
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Tools في إكوسترا.
Specification
Specification
| WeightWeight | 10 g |
|---|---|
| Dimensions | 5 × 4 × 2 cm |
| Module Type | DC-DC Step-Down (Buck) Converter |
| Main Chip | XL4015 |
| Input Voltage | 8V ~ 36V DC |
| Output Voltage | 1.25V ~ 32V DC (Continuously Adjustable) |
| Output Current | Up to 5A (Heatsink required for continuous draw > 3A) |
| Output Power | 75W (Maximum) |
| Conversion Efficiency | Up to 96% |
| Switching Frequency | 180 KHz |
| Voltage Adjustment | On-board Multi-turn Potentiometer |
| On-Board Components | 2× 220uF 50V Filter Capacitors, High-Power Toroidal Inductor |
| Protection Features | Short Circuit Protection, Thermal Shutdown, Built-in Current Limiting (Note: No reverse polarity protection) |
| Included Hardware | 1× XL4015 Module, 1× Aluminum Heatsink |
| Applications | Embedded Systems Power, Custom Arduino/ESP32 Projects, High-Power LED Driving, DIY Variable Power Supplies |
