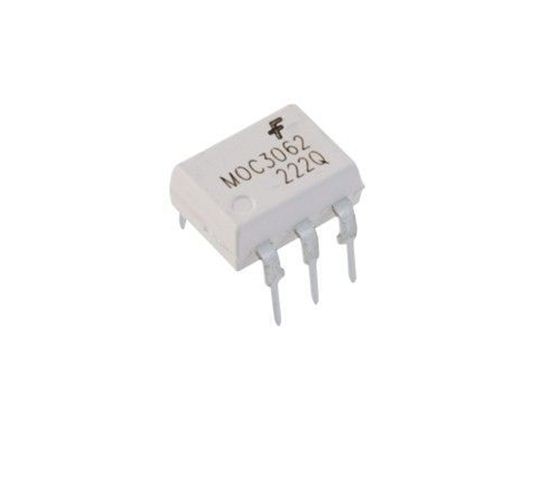

MOC3062 (TRIAC Opto-Coupler)
MOC3062 (TRIAC Opto-Coupler)
1. IC Type: Opto-Triac Coupler
2. Isolation Voltage: 7500 Vrms
3. Output Voltage Rating: 400V
4. Zero-Cross Detection: Yes
5. Package Type: DIP-6
Apple Shopping Event
1,00 EGP
Payment Methods:
Description
The MOC3062 is a TRIAC opto-coupler that lets a low-voltage control circuit switch a high-voltage AC load while maintaining electrical isolation between the two sides, rated for 7500Vrms isolation.
It includes built-in zero-cross detection, meaning it only allows the TRIAC to trigger when the AC waveform crosses zero volts — this reduces electrical noise and inrush current compared to random-phase switching, making it well suited to relay-style AC switching applications.
The output side is rated for 400V, and the device operates across -40°C to +85°C, requiring only a low trigger current on the input LED side. It’s housed in a standard DIP-6 package for easy breadboard or PCB integration.
Features:
- Opto-isolated TRIAC driver
- Zero-cross detection for clean AC switching
- Isolation voltage: 7500Vrms
- Output voltage rating: 400V
- Low input trigger current
- Operating temperature: -40°C to +85°C
- DIP-6 package
- Suited for solid state relays, light dimmers, and motor control
نظرة عامة ومواصفات المنتج — بالعربية
MOC3062 (TRIAC Opto-Coupler) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Optocoupler ICs، بسعر 1,00 EGP. كود المنتج لدينا: EK1892. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.
أهم المواصفات الفنية:
- Ic Type: Opto-Triac Coupler
- Output Device: TRIAC
- Zero Cross Detection: Yes
- Isolation Voltage: 7500 Vrms
- Trigger Current: Low Input Current
- Output Voltage Rating: 400V
- Operating Temperature: -40°C to +85°C
- Package Type: DIP-6
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Optocoupler ICs في إكوسترا.
Specification
Specification
| WeightWeight | 2 g |
|---|---|
| Dimensions | 1 × 0,7 × 0,4 cm |
| IC Type | Opto-Triac Coupler |
| Output Device | TRIAC |
| Zero-Cross Detection | Yes |
| Isolation Voltage | 7500 Vrms |
| Trigger Current | Low Input Current |
| Output Voltage Rating | 400V |
| Operating Temperature | -40°C to +85°C |
| Package Type | DIP-6 |
