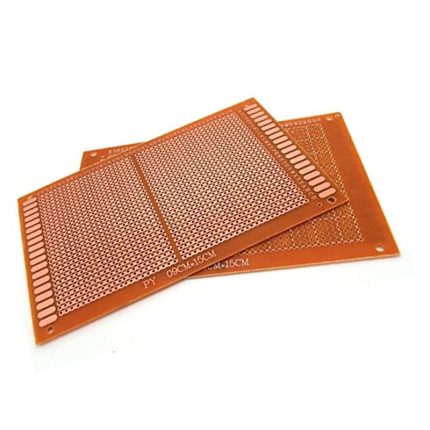

PCB LINE IC FR2 (9X15 cm2)
-
Pre-etched copper tracks for ICs and components
-
Optimized for DIP packages, resistors, and capacitors
-
Made from FR2 phenolic paper – easy to cut and drill
-
9×15 cm² single-layer board for prototyping
-
Standard 2.54mm hole pitch for through-hole components
-
Ideal for educational, DIY, and quick prototyping projects
Apple Shopping Event
30,00 EGP
Payment Methods:
Description
The PCB LINE IC FR2 (9×15 cm²) is a durable and versatile PCB (Printed Circuit Board) made from FR2 material, ideal for electronic prototyping and DIY projects. It provides a solid base for mounting and soldering electronic components, including ICs, resistors, capacitors, and more. Its compact size of 9×15 cm² makes it suitable for small to medium-sized projects.
Features:
- Material: Made from high-quality FR2 (phenolic paper) material, ensuring durability and easy handling.
- Size: 9×15 cm², perfect for compact electronic designs.
- Grid Layout: Pre-drilled holes with a standard grid pattern for easy component placement.
- IC-Friendly: Designed for use with integrated circuits (ICs) and other components.
- Versatile: Ideal for prototyping, hobby projects, and DIY circuits.
- Solderable: Excellent solder adhesion for reliable connections.
Specifications of PCB LINE IC FR2 (9×15 cm²):
- Material: FR2 (Phenolic Paper Laminate)
- Dimensions: 9 cm x 15 cm (90 mm x 150 mm)
- Thickness: ~1.6 mm
- Surface Finish: Copper-clad (single-sided or double-sided, based on variant)
- Hole Diameter: ~1 mm (standard for most components)
- Grid Spacing: 2.54 mm (0.1 inch, standard for ICs and components)
- Thermal Resistance: Suitable for standard soldering temperatures (~260°C max for short durations)
- Weight: Lightweight, ~25-30 grams (varies slightly by manufacturing)
- Compatibility: Supports through-hole components and prototyping applications.
- Environmental Resistance: Moderate resistance to humidity and heat.
This PCB is ideal for quick prototyping, small circuit development, and educational purposes.
نظرة عامة ومواصفات المنتج — بالعربية
PCB LINE IC FR2 (9X15 cm2) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Breadboard and Zero PCBs وPCB Board، بسعر 30,00 EGP. كود المنتج لدينا: EK1461. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Name: PCB Board – FR2 9×15 cm²
- Type: Single-Sided PCB Board
- الخامة: FR2 (Phenolic Paper)
- Copper Layer: Single-Sided
- Board Dimensions: 90×150 mm (9×15 cm²)
- Thickness: 1.6 mm (typical)
- اللون: Brown
- Surface Finish: Untinned / Raw Copper
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Breadboard and Zero PCBs في إكوسترا.
Specification
Specification
| WeightWeight | 30 g |
|---|---|
| Dimensions | 10 × 6 × 1 cm |
| Product Name | PCB Board – FR2 9×15 cm² |
| Type | Single-Sided PCB Board |
| Material | FR2 (Phenolic Paper) |
| Copper Layer | Single-Sided |
| Board Dimensions | 90×150 mm (9×15 cm²) |
| Thickness | 1.6 mm (typical) |
| Color | Brown |
| Surface Finish | Untinned / Raw Copper |
| Operating Temperature | -40°C to +105°C |
| Applications | DIY Electronics, Prototyping, Circuit Fabrication, Arduino Projects |
| Package Contents | 1× PCB Board – FR2 9×15 cm² |
