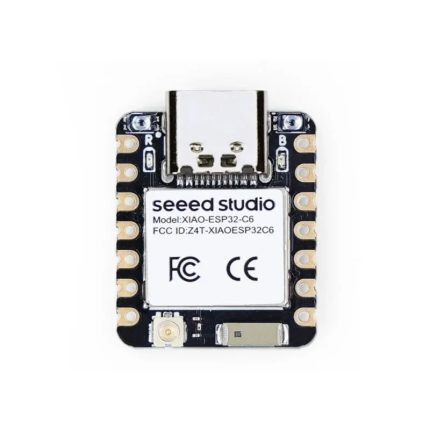

Seeed XIAO ESP32-C6 WiFi6/BLE5/Zigbee Dev Board
- 📡 Seeed XIAO ESP32-C6 dev board with WiFi 6 + BLE 5
- 🕸️ Built-in Zigbee/Thread (802.15.4) for smart home/IoT
- ⚡ Ultra-compact XIAO form factor—perfect for tiny projects
- 🔌 USB-C for power + programming
- 🧠 Powerful ESP32-C6 MCU for connected applications
- 🧩 Easy integration with sensors via GPIO / I2C / SPI / UART
- 🔋 Low-power modes for battery-powered devices
- 🏠 Ideal for Matter-ready IoT, automation, and wireless nodes
Apple Shopping Event
1.200,00 EGP
Payment Methods:
Description
Description:
The Seeed XIAO ESP32-C6 is an ultra-compact development board designed for next-generation IoT applications. It features the ESP32-C6 SoC, supporting WiFi 6, BLE 5, and Zigbee connectivity, offering high-performance wireless communication in a small form factor. Perfect for low-power IoT devices, smart home applications, and portable projects, the XIAO ESP32-C6 integrates multiple interfaces including GPIO, ADC, I2C, SPI, and UART for versatile development.
Specifications:
-
Microcontroller: ESP32-C6, RISC-V single-core, up to 160 MHz
-
Flash Memory: 4 MB
-
SRAM: 400 KB
-
Wireless Connectivity:
-
WiFi 6 (802.11ax)
-
Bluetooth 5
-
Zigbee 3.0
-
-
Digital I/O Pins: 11 GPIOs
-
Analog Input: 2 ADC channels
-
Interfaces: I2C, SPI, UART, PWM
-
Operating Voltage: 3.3V
-
USB: Type-C for programming and power
-
Dimensions: 23.5 × 17.5 mm
-
Power Consumption: Ultra-low power sleep modes supported
Short Features:
-
Small and compact XIAO form factor
-
Supports WiFi 6, BLE 5, and Zigbee 3.0
-
RISC-V core with high performance
-
Multiple GPIOs with ADC, PWM, and communication interfaces
-
USB Type-C for easy programming
Package Includes:
-
1 × Seeed XIAO ESP32-C6 Dev Board
نظرة عامة ومواصفات المنتج — بالعربية
Seeed XIAO ESP32-C6 WiFi6/BLE5/Zigbee Dev Board متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Development Boards، بسعر 1.200,00 EGP. كود المنتج لدينا: EK1890. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Name: Seeed XIAO ESP32-C6 WiFi6/BLE5/Zigbee Dev Board
- المتحكم الدقيق: ESP32-C6
- Processor: RISC-V Single-Core
- Clock Speed: Up to 160 MHz
- Wireless Connectivity: Wi-Fi 6 (802.11ax), Bluetooth 5 (BLE), Zigbee
- Operating Voltage: 3.3V
- Input Voltage: 5V via USB
- Usb Interface: USB Type-C
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Development Boards في إكوسترا.
Specification
Specification
| WeightWeight | 10 g |
|---|---|
| Dimensions | 2,1 × 1,75 × 0,35 cm |
| Product Name | Seeed XIAO ESP32-C6 WiFi6/BLE5/Zigbee Dev Board |
| Microcontroller | ESP32-C6 |
| Processor | RISC-V Single-Core |
| Clock Speed | Up to 160 MHz |
| Wireless Connectivity | Wi-Fi 6 (802.11ax), Bluetooth 5 (BLE), Zigbee |
| Operating Voltage | 3.3V |
| Input Voltage | 5V via USB |
| USB Interface | USB Type-C |
| Flash Memory | 4 MB |
| GPIO Pins | 11 |
| Interfaces | SPI, I2C, UART, PWM, ADC |
| Antenna | Onboard Antenna |
| Form Factor | Ultra-Compact (XIAO Series) |
| Programming Support | Arduino IDE, ESP-IDF |
| Application | IoT, Smart Home, Wireless Sensors, Embedded Systems |
