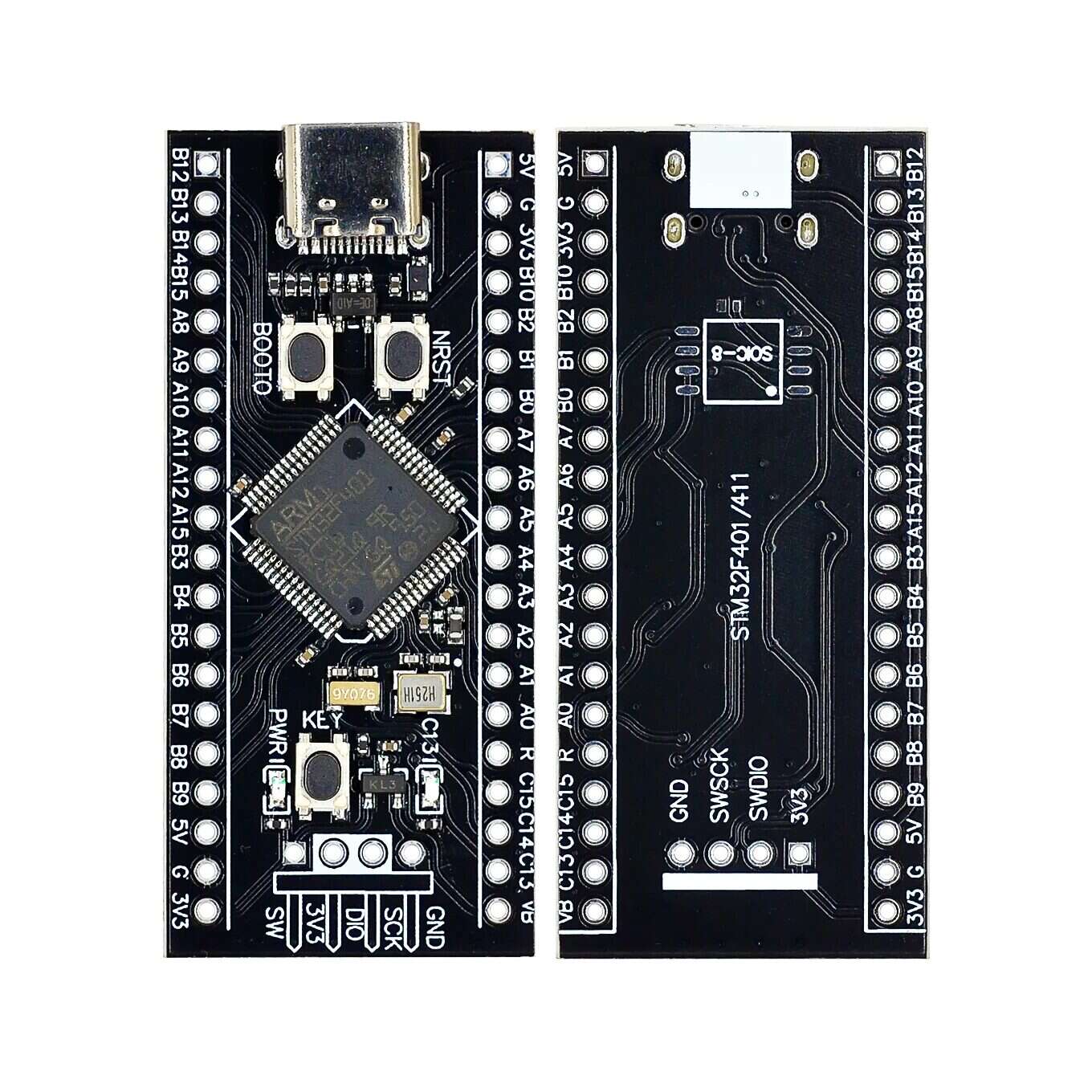

STM32F401RCT6 – STM32 Development Board (The Black Pill)
Product Highlights
- High-Performance Core: ARM Cortex-M4 32-bit RISC core operating at 84 MHz.
- Memory Power: 256KB Flash memory and 64KB SRAM for complex embedded applications.
- Modern Connectivity: Integrated USB Type-C for both power and high-speed data.
- Hardware Acceleration: Built-in Floating Point Unit (FPU) for fast mathematical calculations.
- Breadboard Friendly: Compact “Black Pill” design with a dual-row 40-pin layout.
- RTC Ready: Onboard 32.768kHz low-speed crystal for real-time clock applications.
Apple Shopping Event
350,00 EGP
Payment Methods:
Description
This is STM32F401CCU6 Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F401CCU6.
Board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M4 32-bit core.
Pinout Diagram:
Features :
- 100% Brand new and high-quality STM32 Board
- 84 MHz work frequency.
- 256K flash memory,64K SRAM.
- 1.7-3.6V power, I/O.
- 4-26MHz crystal.
- Onboard the Type-C USB interface, you can give the board power supply and USB communication.
Package Includes :
1 x STM32F401CCU6 Minimum System Board Microcomputer STM32 ARM Core Board
نظرة عامة ومواصفات المنتج — بالعربية
STM32F401RCT6 - STM32 Development Board (The Black Pill) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Development Boards، بسعر 350,00 EGP. كود المنتج لدينا: EK1403. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Name: STM32F401RCT6 Development Board
- Type: Microcontroller Development Board
- المتحكم الدقيق: STM32F401RCT6
- Core: ARM Cortex-M4 / 32-bit
- Operating Voltage: 3.3V
- Input Voltage: 5V via USB
- Flash Memory: 512 KB
- ذاكرة SRAM: 96 KB
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Development Boards في إكوسترا.
Specification
Specification
| WeightWeight | 15 g |
|---|---|
| Dimensions | 5,3 × 2,3 × 1,2 cm |
| Product Name | STM32F401RCT6 Development Board |
| Type | Microcontroller Development Board |
| Microcontroller | STM32F401RCT6 |
| Core | ARM Cortex-M4, 32-bit |
| Operating Voltage | 3.3V |
| Input Voltage | 5V via USB |
| Flash Memory | 512 KB |
| SRAM | 96 KB |
| Clock Speed | 84 MHz |
| Digital I/O Pins | 26 (Approx.) |
| Analog Input Pins | 10 (ADC) |
| Communication Interfaces | UART, I2C, SPI, CAN |
| Programming Interface | USB, SWD |
| LED Indicator | Onboard Power LED |
| Features | Compact, High Performance, Low Power, GPIO, PWM, ADC, DAC |
| Application | Embedded Systems, IoT Projects, Robotics, Prototyping |
