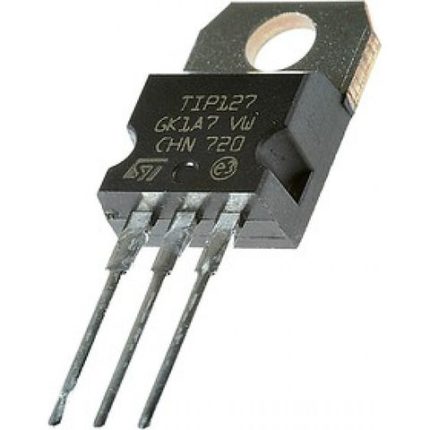

TIP127 Darlington PNP Transistor
- 🔌 TIP127 PNP Darlington power transistor
- 💪 High current gain—easy control with low base current
- ⚡ Ideal for switching motors, relays, solenoids, and lamps
- 🧩 Great for high-side switching with Arduino/MCUs
- 🛠️ TO-220 package—easy mounting and heatsinking
- 🔥 Use a heatsink for high current/continuous loads
- 🔁 Darlington design for strong amplification
- ✅ Reliable choice for power driver circuits
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
15,00 EGP
12
People watching this product now!
Payment Methods:
Description
TIP127 is a PNP type Darlington pair Transistor. It has a high gain value of 1000 and a collector current of 5A.
Package Includes:
1 x TIP127 Darlington PNP Transistor.
نظرة عامة ومواصفات المنتج — بالعربية
TIP127 Darlington PNP Transistor متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Basic Electronic Components وTransistor، بسعر 15,00 EGP. كود المنتج لدينا: EK823. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Type: Darlington Power Transistor
- الموديل: TIP127
- Polarity: PNP
- الاستخدامات: Medium Power Switching / Amplification
- طريقة التثبيت: Through-Hole
- Package: TO-220
- Pin Count: 3
- Pin Configuration: B-C-E (front view, typical)
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Basic Electronic Components في إكوسترا.
Specification
Specification
| WeightWeight | 2 g |
|---|---|
| Dimensions | 1 × 1 × 0,5 cm |
| Product Type | Darlington Power Transistor |
| Model | TIP127 |
| Polarity | PNP |
| Application | Medium Power Switching / Amplification |
| Mounting Type | Through-Hole |
| Package | TO-220 |
| Pin Count | 3 |
| Pin Configuration | B-C-E (front view, typical) |
| Collector-Emitter Voltage (VCEO) | 100 V |
| Collector Current (IC) | 5 A |
| Power Dissipation (PD) | 65 W (with proper heatsink) |
| DC Current Gain (hFE) | 1000 (typical) |
| VCE(sat) | 2.0 V (typical @ IC=3 A) |
| Base-Emitter Voltage (VBE(on)) | 2.5 V (typical @ IC=3 A) |
| Transition Frequency (fT) | 3 MHz (typical) |
| Operating Junction Temperature (TJ) | -65°C to +150°C |
| Applications | High-side switching, motor/relay driving, power control |
