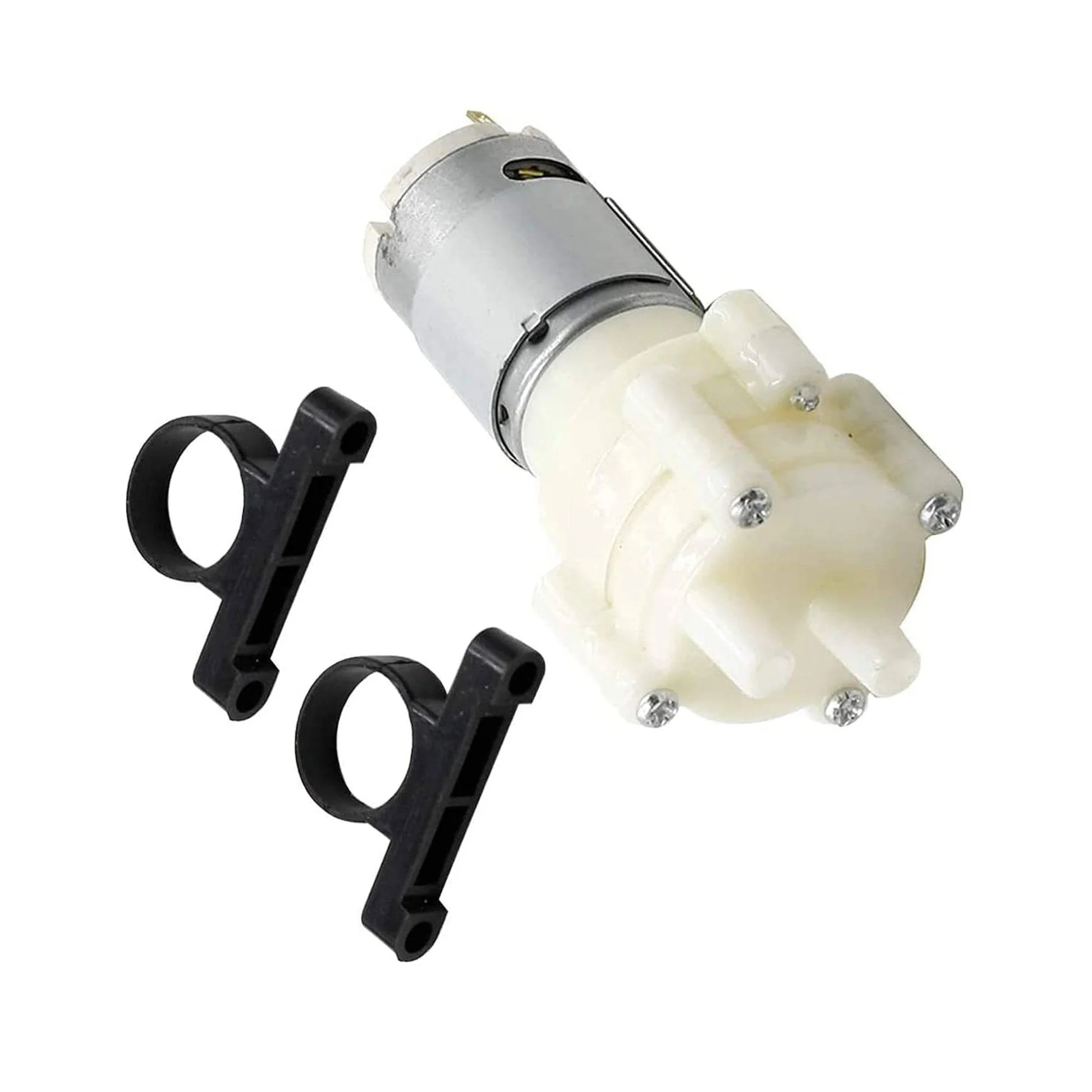

Water Pump R385 12VDC

  1. Working voltage: DC 6-12V.
  2. Working current: 0.5-0.7A.
  3. Biggest Suction:2 M
  4. Inner Diameter:4 mm
  5. Outer diameter: 8 mm
  6. Lifecycle: up to 2500 H
SKU: EK1636 Categories: , Tags: , , , , , , , , , , , , , ,

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

250,00 EGP

Compare
17 People watching this product now!

Payment Methods:

Description

If you need to transfer water from one place to another place, you will need this pump. This is 12V DC Diaphragm pump. Capable of pumping water at 1.6Liter / min rate. That is a pretty smooth rate.

Features
  • Compact Diaphragm water pump
  • Operating voltage: 12VDC
  • Rated current: 0.5A
  • Power: 6W
  • Flow Rate: 1.6L ± 0.1L / min
  • Water pressure at inlet: 0.3Mpa (MegaPascal), or 43.51 psi
  • Max continuous operating hour: 12 hours
  • Operating Temperature: 5ºC to 40ºC
  • Operating Water Temperature: 5ºC to 45ºC
  • Recommended working hour per day: 8 hours
  • Inlet and output host diameter: 7mm
🔌
Pin Connections
1 Table
Pin Connections Table 1
BoardSensor PinConnection
Pumpto H-bridge OUTmotor leads into an H-bridge driver's output terminals
📟
Water Pump R385 12VDC
7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico
Water Pump R385 12VDC - Arduino Uno
Water Pump R385 12VDC - Arduino Nano
Water Pump R385 12VDC - Arduino Mega
Water Pump R385 12VDC - ESP32
Water Pump R385 12VDC - ESP8266
Water Pump R385 12VDC - STM32
Water Pump R385 12VDC - Raspberry Pi Pico
📄 File: water_pump_r385_12vdc_-_arduino_uno.inoArduino Uno
626 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Water Pump R385 12VDC needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Uno.
6#define IN1 8
7#define IN2 9
8#define ENA 10
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: water_pump_r385_12vdc_-_arduino_nano.inoArduino Nano
627 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Water Pump R385 12VDC needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Nano.
6#define IN1 8
7#define IN2 9
8#define ENA 10
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: water_pump_r385_12vdc_-_arduino_mega.inoArduino Mega
627 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Water Pump R385 12VDC needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Mega.
6#define IN1 8
7#define IN2 9
8#define ENA 10
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: water_pump_r385_12vdc_-_esp32.inoESP32
624 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Water Pump R385 12VDC needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=26, IN2=27, ENA(speed)=25 on ESP32.
6#define IN1 26
7#define IN2 27
8#define ENA 25
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: water_pump_r385_12vdc_-_esp8266.inoESP8266
626 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Water Pump R385 12VDC needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=D5, IN2=D6, ENA(speed)=D7 on ESP8266.
6#define IN1 D5
7#define IN2 D6
8#define ENA D7
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: water_pump_r385_12vdc_-_stm32.inoSTM32
630 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Water Pump R385 12VDC needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=PB0, IN2=PB1, ENA(speed)=PA8 on STM32.
6#define IN1 PB0
7#define IN2 PB1
8#define ENA PA8
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: water_pump_r385_12vdc_-_raspberry_pi_pico.inoRaspberry Pi Pico
636 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Water Pump R385 12VDC needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=14, IN2=15, ENA(speed)=16 on Raspberry Pi Pico.
6#define IN1 14
7#define IN2 15
8#define ENA 16
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
A DC water pump is electrically just a DC motor - drive it through the same kind of H-bridge or single-transistor switch.
All copy right for ekostra.com

نظرة عامة ومواصفات المنتج — بالعربية

Water Pump R385 12VDC متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Motors | Drivers | Pumps | Actuators وWater Pump، بسعر 250,00 EGP. كود المنتج لدينا: EK1636. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

  • Item Type: Water Pump
  • Voltage Rating V: 6 to 12VDC
  • Operating Current A: 0.5 to 0.7
  • Suction Stroke Limit: 2M
  • Inner Diameter Id Mm: 4
  • Outer Diameter Od Mm: 8
  • Life Cycle: up to 2500 Hours
  • الوزن: 4 g

منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.

تصفّح المزيد من Motors | Drivers | Pumps | Actuators في إكوسترا.

Specification

Specification

WeightWeight40 g
Dimensions90 × 40 × 34 cm
item-typeWater Pump
voltage-rating-v6 to 12VDC
operating-current-a0.5 to 0.7
suction-stroke-limit2M
inner-diameter-id-mm4
outer-diameter-od-mm8
life-cycleup to 2500 Hours

Customer Reviews

Related Products

CNC Shield V3.0 For Arduino Uno - Ekostra Electronics In Egypt اكوسترا الكترونيكس
Compare
Quick view
Add to cart

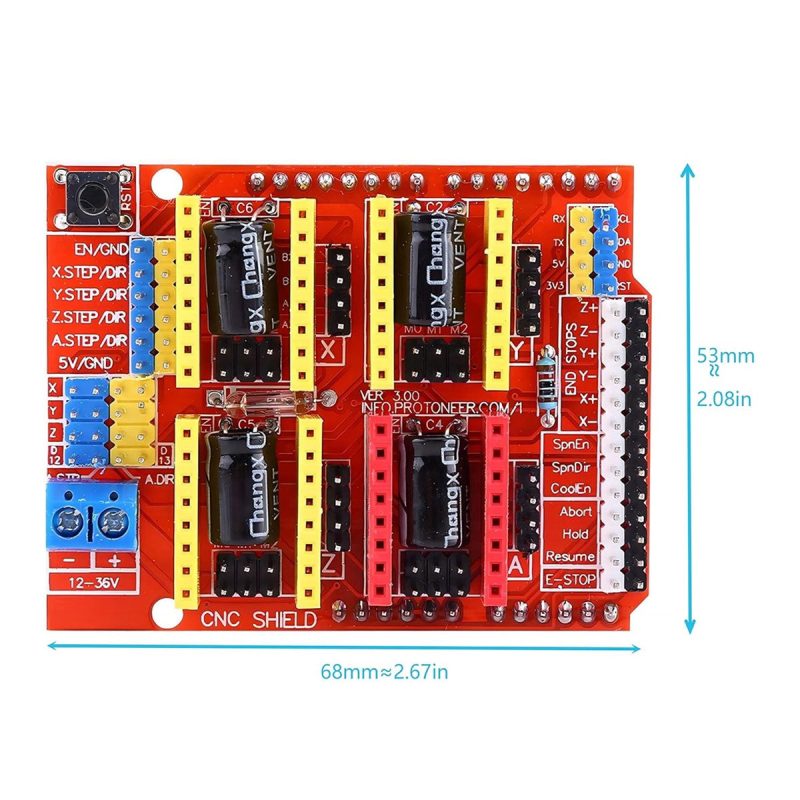

CNC Shield V3.0 For Arduino Uno

,
125,00 EGP
DC 3-6 V Mini Micro Submersible Water Pump - Ekostra Electronics In Egypt اكوسترا الكترونيكس
Compare
Quick view
Add to cart

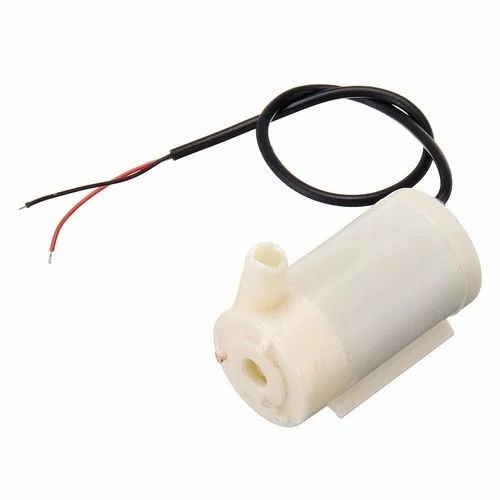

DC 3-6 V Mini Micro Submersible Water Pump

,
75,00 EGP
DC Motor 5V - Ekostra Electronics In Egypt اكوسترا الكترونيكس
Compare
Quick view
Add to cart

DC Motor 5V

,
15,00 EGP
Gripper – Robot Mechanical Arm Aluminum Metal Claws - Ekostra Electronics In Egypt اكوسترا الكترونيكس
-5% New

-5% OFF

Compare
Quick view
Add to cart

Gripper – Robot Mechanical Arm Aluminum Metal Claws

,
Original price was: 370,00 EGP.Current price is: 350,00 EGP.
L9110S DC Stepper Motor Driver Board HBridge - Ekostra Electronics In Egypt اكوسترا الكترونيكس
Compare
Quick view
Add to cart

L9110S DC Stepper Motor Driver Board HBridge

50,00 EGP
Mounting for DC Motor JGA25-370-CE 3D Printed - Ekostra Electronics In Egypt اكوسترا الكترونيكس
Compare
Quick view
Add to cart

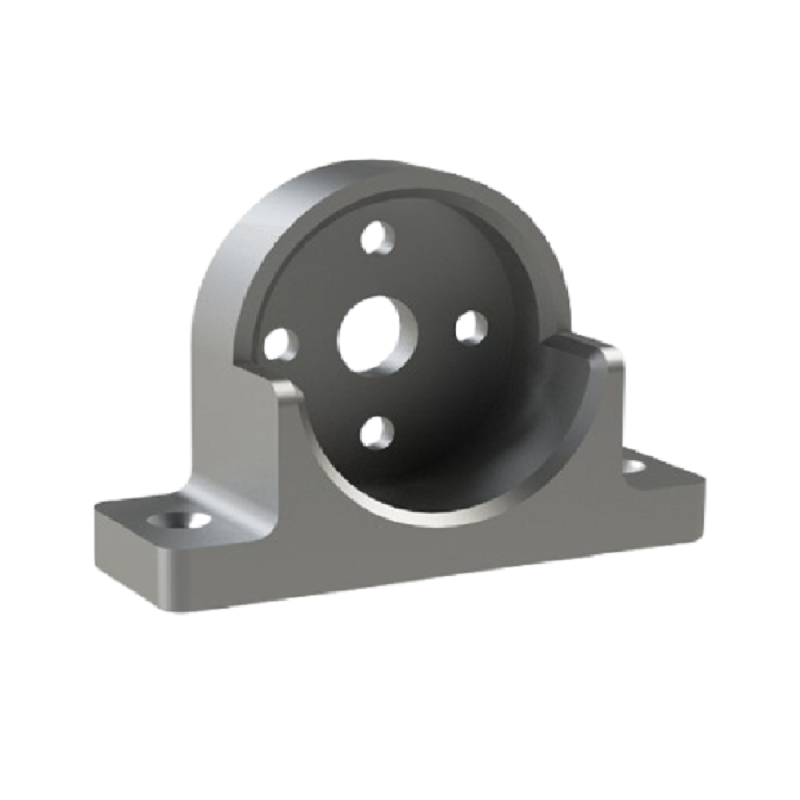

Mounting for DC Motor JGA25-370-CE 3D Printed
