10A range Current Sensor Module ACS712

Name: 10A range Current Sensor Module ACS712
SKU: EK805
Price: 65.00 EGP
Availability: OutOfStock

SKU: EK805 Category: Sensors Tag: Sensors

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

65,00 EGP

Compare

7 People watching this product now!

Payment Methods:

Description

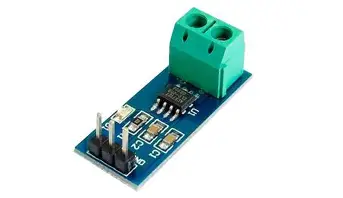

The 10A range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.

Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.

This ACS721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current.

The maximum AC or DC that can be detected can reach 10A, and the present current signal can be read via analog I / O port of Arduino.

Note:

ACS712 is based on the principle of the Hall test, please use this field to avoid an impact!

Connection Diagram:

Features :

Low-noise analog signal path.
Device bandwidth is set via the new FILTER pin.
5 µs output rise time in response to step input current.
Small footprint, low-profile SOIC8 package.
2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.
5.0 V, single-supply operation.
66 to 185 mV/A output sensitivity.
Output voltage proportional to AC or DC currents.
Factory-trimmed for accuracy.
Extremely stable output offset voltage.
Nearly zero magnetic hystereses.
The ratiometric output from the supply voltage.

Package Includes :

1 x 10A Range Current Sensor Module ACS712.

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
ACS712-10A	VCC/GND/OUT	5V (or 3.3V - see code note) / GND / board analog pin

📟

10A range Current Sensor Module ACS712 (2)

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

10A range Current Sensor Module ACS712 (2) - Arduino Uno

10A range Current Sensor Module ACS712 (2) - Arduino Nano

10A range Current Sensor Module ACS712 (2) - Arduino Mega

10A range Current Sensor Module ACS712 (2) - ESP32

10A range Current Sensor Module ACS712 (2) - ESP8266

10A range Current Sensor Module ACS712 (2) - STM32

10A range Current Sensor Module ACS712 (2) - Raspberry Pi Pico

📄 File: 10a_range_current_sensor_module_acs712_(2)_-_arduino_uno.inoArduino Uno

578 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Uno

6#define ACS_PIN A0

7const float VCC = 5.0;

8const float SENSITIVITY = 0.100; // V per A, for the ACS712 10A module variant

9const float ZERO_CURRENT_VOLTAGE = VCC / 2.0; // module outputs VCC/2 at 0A

11void setup() {

12 Serial.begin(115200);

13}

15void loop() {

16 int raw = analogRead(ACS_PIN);

17 float voltage = raw * 5.0 / 1023.0;

18 float current = (voltage - ZERO_CURRENT_VOLTAGE) / SENSITIVITY;

20 Serial.print("Current: "); Serial.print(current); Serial.println(" A");

22 delay(500);

23}

📄 File: 10a_range_current_sensor_module_acs712_(2)_-_arduino_nano.inoArduino Nano

579 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Nano

6#define ACS_PIN A0

7const float VCC = 5.0;

8const float SENSITIVITY = 0.100; // V per A, for the ACS712 10A module variant

9const float ZERO_CURRENT_VOLTAGE = VCC / 2.0; // module outputs VCC/2 at 0A

11void setup() {

12 Serial.begin(115200);

13}

15void loop() {

16 int raw = analogRead(ACS_PIN);

17 float voltage = raw * 5.0 / 1023.0;

18 float current = (voltage - ZERO_CURRENT_VOLTAGE) / SENSITIVITY;

20 Serial.print("Current: "); Serial.print(current); Serial.println(" A");

22 delay(500);

23}

📄 File: 10a_range_current_sensor_module_acs712_(2)_-_arduino_mega.inoArduino Mega

579 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Mega

6#define ACS_PIN A0

7const float VCC = 5.0;

8const float SENSITIVITY = 0.100; // V per A, for the ACS712 10A module variant

9const float ZERO_CURRENT_VOLTAGE = VCC / 2.0; // module outputs VCC/2 at 0A

11void setup() {

12 Serial.begin(115200);

13}

15void loop() {

16 int raw = analogRead(ACS_PIN);

17 float voltage = raw * 5.0 / 1023.0;

18 float current = (voltage - ZERO_CURRENT_VOLTAGE) / SENSITIVITY;

20 Serial.print("Current: "); Serial.print(current); Serial.println(" A");

22 delay(500);

23}

📄 File: 10a_range_current_sensor_module_acs712_(2)_-_esp32.inoESP32

834 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 34 on ESP32

6// NOTE: this module is normally supplied with 5V (its zero-current point is VCC/2).

7// Power it from 5V still if your board has a 5V pin (Uno/Nano/Mega do); on 3.3V-only

8// boards power the module from 3.3V instead and this code's VCC constant already matches.

9#define ACS_PIN 34

10const float VCC = 3.3;

11const float SENSITIVITY = 0.100; // V per A, for the ACS712 10A module variant

12const float ZERO_CURRENT_VOLTAGE = VCC / 2.0; // module outputs VCC/2 at 0A

14void setup() {

15 Serial.begin(115200);

16}

18void loop() {

19 int raw = analogRead(ACS_PIN);

20 float voltage = raw * 3.3 / 4095.0;

21 float current = (voltage - ZERO_CURRENT_VOLTAGE) / SENSITIVITY;

23 Serial.print("Current: "); Serial.print(current); Serial.println(" A");

25 delay(500);

26}

📄 File: 10a_range_current_sensor_module_acs712_(2)_-_esp8266.inoESP8266

836 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on ESP8266

6// NOTE: this module is normally supplied with 5V (its zero-current point is VCC/2).

7// Power it from 5V still if your board has a 5V pin (Uno/Nano/Mega do); on 3.3V-only

8// boards power the module from 3.3V instead and this code's VCC constant already matches.

9#define ACS_PIN A0

10const float VCC = 3.3;

11const float SENSITIVITY = 0.100; // V per A, for the ACS712 10A module variant

12const float ZERO_CURRENT_VOLTAGE = VCC / 2.0; // module outputs VCC/2 at 0A

14void setup() {

15 Serial.begin(115200);

16}

18void loop() {

19 int raw = analogRead(ACS_PIN);

20 float voltage = raw * 3.3 / 1023.0;

21 float current = (voltage - ZERO_CURRENT_VOLTAGE) / SENSITIVITY;

23 Serial.print("Current: "); Serial.print(current); Serial.println(" A");

25 delay(500);

26}

📄 File: 10a_range_current_sensor_module_acs712_(2)_-_stm32.inoSTM32

836 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin PA0 on STM32

6// NOTE: this module is normally supplied with 5V (its zero-current point is VCC/2).

7// Power it from 5V still if your board has a 5V pin (Uno/Nano/Mega do); on 3.3V-only

8// boards power the module from 3.3V instead and this code's VCC constant already matches.

9#define ACS_PIN PA0

10const float VCC = 3.3;

11const float SENSITIVITY = 0.100; // V per A, for the ACS712 10A module variant

12const float ZERO_CURRENT_VOLTAGE = VCC / 2.0; // module outputs VCC/2 at 0A

14void setup() {

15 Serial.begin(115200);

16}

18void loop() {

19 int raw = analogRead(ACS_PIN);

20 float voltage = raw * 3.3 / 4095.0;

21 float current = (voltage - ZERO_CURRENT_VOLTAGE) / SENSITIVITY;

23 Serial.print("Current: "); Serial.print(current); Serial.println(" A");

25 delay(500);

26}

📄 File: 10a_range_current_sensor_module_acs712_(2)_-_raspberry_pi_pico.inoRaspberry Pi Pico

846 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 26 on Raspberry Pi Pico

6// NOTE: this module is normally supplied with 5V (its zero-current point is VCC/2).

7// Power it from 5V still if your board has a 5V pin (Uno/Nano/Mega do); on 3.3V-only

8// boards power the module from 3.3V instead and this code's VCC constant already matches.

9#define ACS_PIN 26

10const float VCC = 3.3;

11const float SENSITIVITY = 0.100; // V per A, for the ACS712 10A module variant

12const float ZERO_CURRENT_VOLTAGE = VCC / 2.0; // module outputs VCC/2 at 0A

14void setup() {

15 Serial.begin(115200);

16}

18void loop() {

19 int raw = analogRead(ACS_PIN);

20 float voltage = raw * 3.3 / 4095.0;

21 float current = (voltage - ZERO_CURRENT_VOLTAGE) / SENSITIVITY;

23 Serial.print("Current: "); Serial.print(current); Serial.println(" A");

25 delay(500);

26}

Project Notes:

Hall-effect AC/DC current sensor, 10A variant.

نظرة عامة ومواصفات المنتج — بالعربية

10A range Current Sensor Module ACS712 متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Sensors، بسعر 65,00 EGP. كود المنتج لدينا: EK805. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.

أهم المواصفات الفنية:

Product Name: ACS712 10A Range Current Sensor Module
Sensor Type: Hall Effect Current Sensor
Measurement Range: ±10 A
Supply Voltage: 5V
Output Type: Analog
Sensitivity: 100 mV/A
Isolation Voltage: 2.1 kV RMS
Bandwidth: 80 kHz

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Sensors في إكوسترا.

Specification

WeightWeight	0,005 g
Dimensions	3,1 × 1,3 × 1,3 cm
Product Name	ACS712 10A Range Current Sensor Module
Sensor Type	Hall Effect Current Sensor
Measurement Range	±10 A
Supply Voltage	5V
Output Type	Analog
Sensitivity	100 mV/A
Isolation Voltage	2.1 kV RMS
Bandwidth	80 kHz
Response Time	Fast
Current Measurement Type	AC / DC
Accuracy	High Accuracy
Onboard Components	Filter Capacitors
Application	Current Monitoring, Power Management, Motor Control, DIY Electronics
