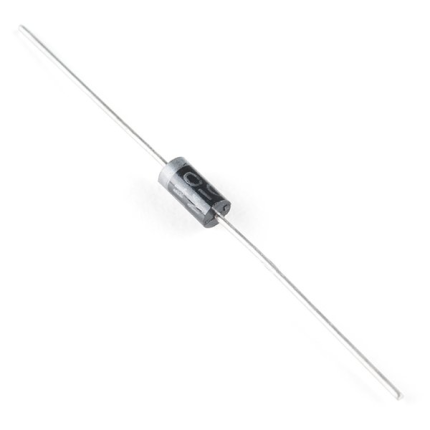

1N4007 General Purpose Plastic Rectifier ( 1A , 1000V )
- 1A current capacity
- 1000V reverse voltage rating
- DO-41 plastic package
- Ideal for low-frequency AC/DC rectification
- General-purpose use in power supplies and circuits
Apple Shopping Event
1,00 EGP
Payment Methods:
Description
The 1N4007 is a versatile, general-purpose rectifier diode designed for use in a wide range of applications where high voltage and current handling are required. It features a plastic package and is capable of withstanding a peak reverse voltage of 1000V and a maximum forward current of 1A, making it suitable for power supplies, switching circuits, and other electronic applications.
Key Features:
- Maximum Forward Current: 1A
- Peak Reverse Voltage: 1000V
- Forward Voltage Drop: Typically 0.7V
- Package Type: DO-41 (Plastic)
- Polarity: Standard Diode (Anode and Cathode identification)
- Applications:
- Power rectification in AC to DC converters
- Protection against reverse voltage
- Power supplies and chargers
- Switching and signal processing circuits
Benefits:
- High reverse voltage tolerance, ideal for high-voltage applications
- Reliable performance with low forward voltage drop
- Compact and durable plastic package for ease of use in various circuits
The 1N4007 is a must-have for any electronics toolkit, providing durable and effective rectification for medium to high-power applications.
نظرة عامة ومواصفات المنتج — بالعربية
1N4007 General Purpose Plastic Rectifier ( 1A , 1000V ) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Basic Electronic Components وDiode، بسعر 1,00 EGP. كود المنتج لدينا: EK923. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Type: Diode / Rectifier
- الموديل: 1N4007
- Maximum Forward Current: 1 A
- Peak Reverse Voltage: 1000 V
- Forward Voltage Drop: 0.7 V (typical at 1 A)
- Reverse Recovery Time: 30 µs (typical)
- Package Type: DO-41
- Operating Temperature: -55°C to +150°C
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Basic Electronic Components في إكوسترا.
Specification
Specification
| WeightWeight | 1 g |
|---|---|
| Dimensions | 2,5 × 0,5 × 0,5 cm |
| Type | Diode / Rectifier |
| Model | 1N4007 |
| Maximum Forward Current | 1 A |
| Peak Reverse Voltage | 1000 V |
| Forward Voltage Drop | 0.7 V (typical at 1 A) |
| Reverse Recovery Time | 30 µs (typical) |
| Package Type | DO-41 |
| Operating Temperature | -55°C to +150°C |
| Applications | Power Supplies, Rectification, Electronics Circuits, DIY Projects |
| Package Contents | 1× 1N4007 General Purpose Plastic Rectifier |
