3 Channel Path Tracing Module

3-channel IR line tracking module with adjustable sensitivity for robot path detection.

SKU: EK458 Categories: , Tags: , , , , , , , , ,

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

150,00 EGP

Compare
11 People watching this product now!

Payment Methods:

Description

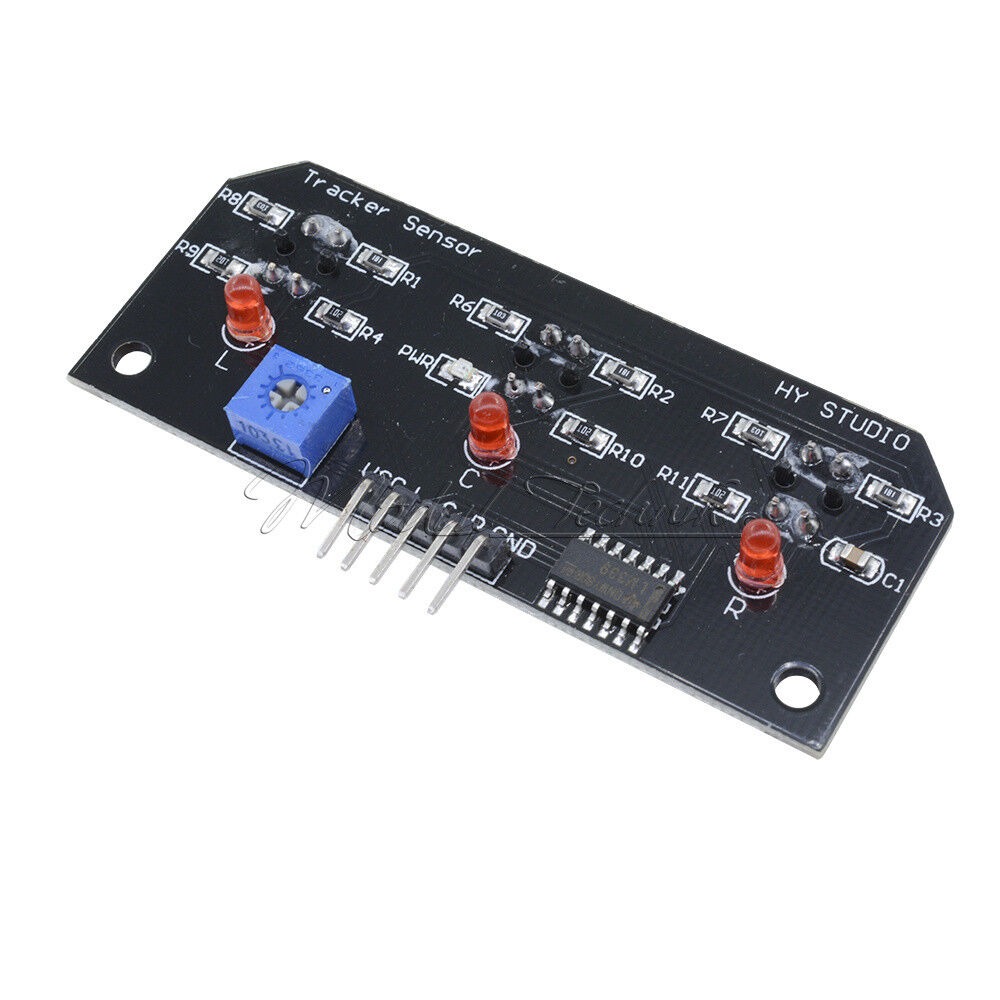

It is a 5V 3 Channel Infrared Line Track Tracking Tracker Sensor Module For Arduino AVR ARM PIC.

Pin Definition:
  1. VCC            Voltage Supply ( 5 V)
  2. GND            Ground
  3. L                  Signal from L infrared sensor     (high / low)
  4. C                 Signal from C infrared sensor (high / low)
  5. R                 Signal from R infrared sensor (high / low)

Features:

  1. 3 channel tracking sensors, must have in your Arduino DIY Robot Projects;
  2. Uses infrared light detection, anti-jamming capability, using CTRT5000 sensor, adjustable sensitivity, stable performance;
  3. Working voltage : 5V
  4. With lights, a fixed bolt hole for easy installation

Package Includes:

1 x 3 Channel Path Tracing Module

🔌
Pin Connections
1 Table
Pin Connections Table 1
BoardSensor PinConnection
Line ArrayVCC/GND/OUT1-33.3-5V / GND / 3 board digital pins
📟
3 Channel Path Tracing Module
7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico
3 Channel Path Tracing Module - Arduino Uno
3 Channel Path Tracing Module - Arduino Nano
3 Channel Path Tracing Module - Arduino Mega
3 Channel Path Tracing Module - ESP32
3 Channel Path Tracing Module - ESP8266
3 Channel Path Tracing Module - STM32
3 Channel Path Tracing Module - Raspberry Pi Pico
📄 File: 3_channel_path_tracing_module_-_arduino_uno.inoArduino Uno
511 characters
