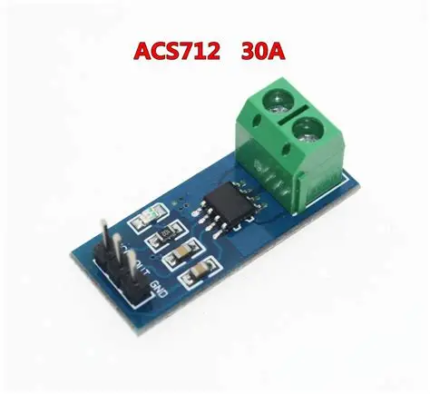

30A range Current Sensor Module ACS712
30A range Current Sensor Module ACS712
1. Current Range: 30A AC/DC
2. Type: Hall-effect based linear sensor
3. Sensitivity: 185 mV/A
4. Output: Analog voltage proportional to current
5. Features: Electrical isolation, low offset
Apple Shopping Event
100,00 EGP
Payment Methods:
Description
The 30A range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.
Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.
This ACS721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current.
The maximum AC or DC that can be detected can reach 30A, and the present current signal can be read via analog I / O port of Arduino.
Note:
ACS712 is based on the principle of the Hall test, please use this field to avoid an impact!
Connection Diagram:
Features :
- Low-noise analog signal path.
- Device bandwidth is set via the new FILTER pin.
- 5 µs output rise time in response to step input current.
- Small footprint, low-profile SOIC8 package.
- 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.
- 5.0 V, single-supply operation.
- 66 to 185 mV/A output sensitivity.
- Output voltage proportional to AC or DC currents.
- Factory-trimmed for accuracy.
- Extremely stable output offset voltage.
- Nearly zero magnetic hystereses.
- The ratiometric output from the supply voltage.
Package Includes :
1 x 30A Range Current Sensor Module ACS712.
نظرة عامة ومواصفات المنتج — بالعربية
30A range Current Sensor Module ACS712 متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Current and Voltage وSensors، بسعر 100,00 EGP. كود المنتج لدينا: EK807. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Current Range: 30A (AC/DC)
- Sensor Type: Hall-Effect Linear
- Sensitivity: 185 mV/A
- Isolation: Electrical Isolation (Copper Path)
- Output: Analog Voltage (Ratiometric)
- الاستخدامات: Power Monitoring / Motor Control / Automation
- الوزن: 6 g
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Current and Voltage في إكوسترا.
Specification
Specification
| WeightWeight | 6 g |
|---|---|
| Dimensions | 3 × 2 × 1 cm |
| Current Range | 30A (AC/DC) |
| Sensor Type | Hall-Effect Linear |
| Sensitivity | 185 mV/A |
| Isolation | Electrical Isolation (Copper Path) |
| Output | Analog Voltage (Ratiometric) |
| Application | Power Monitoring, Motor Control, Automation |
