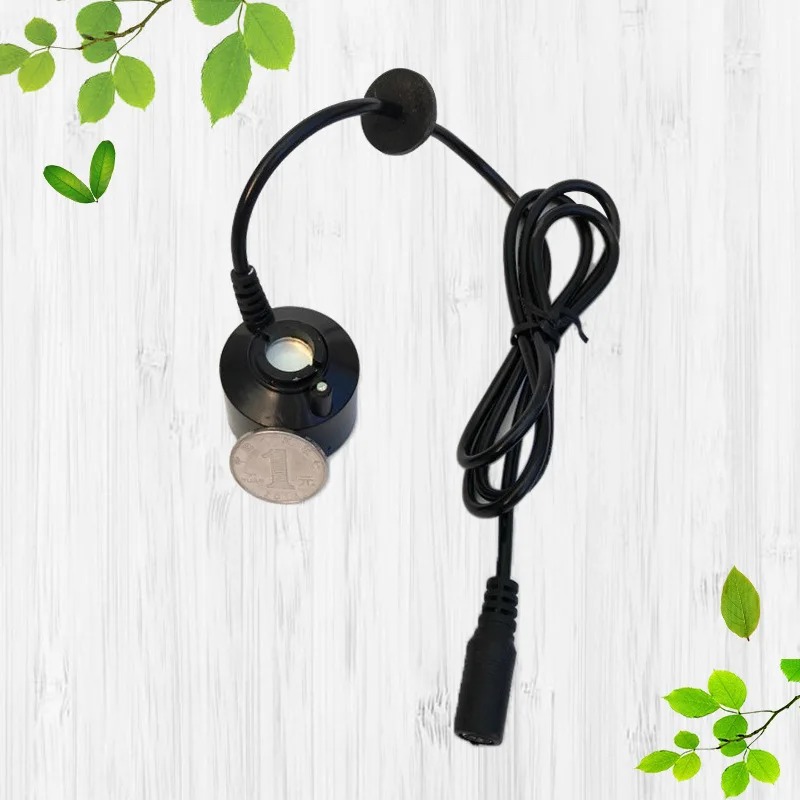

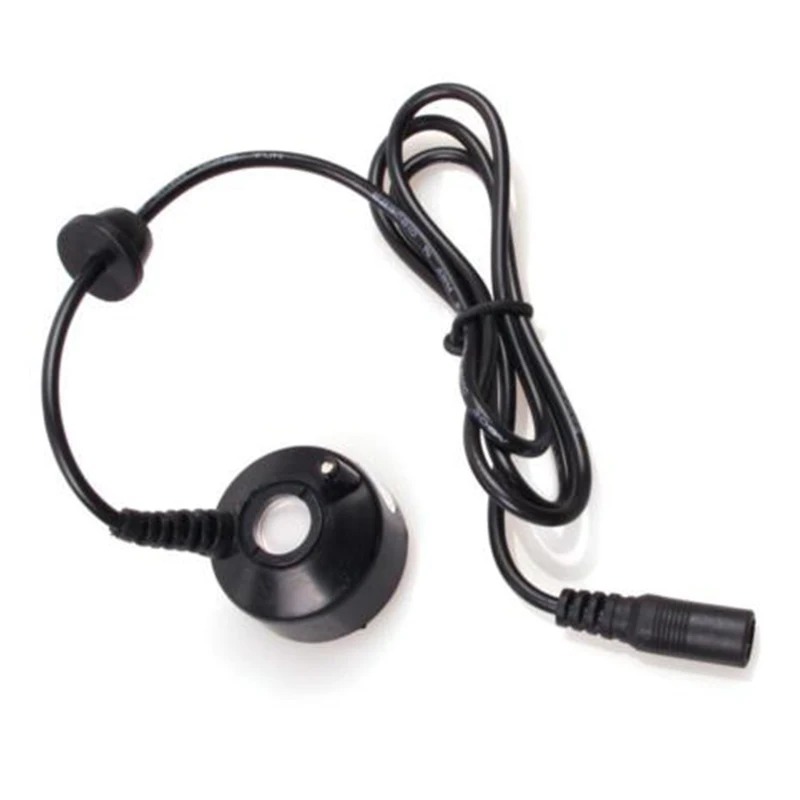

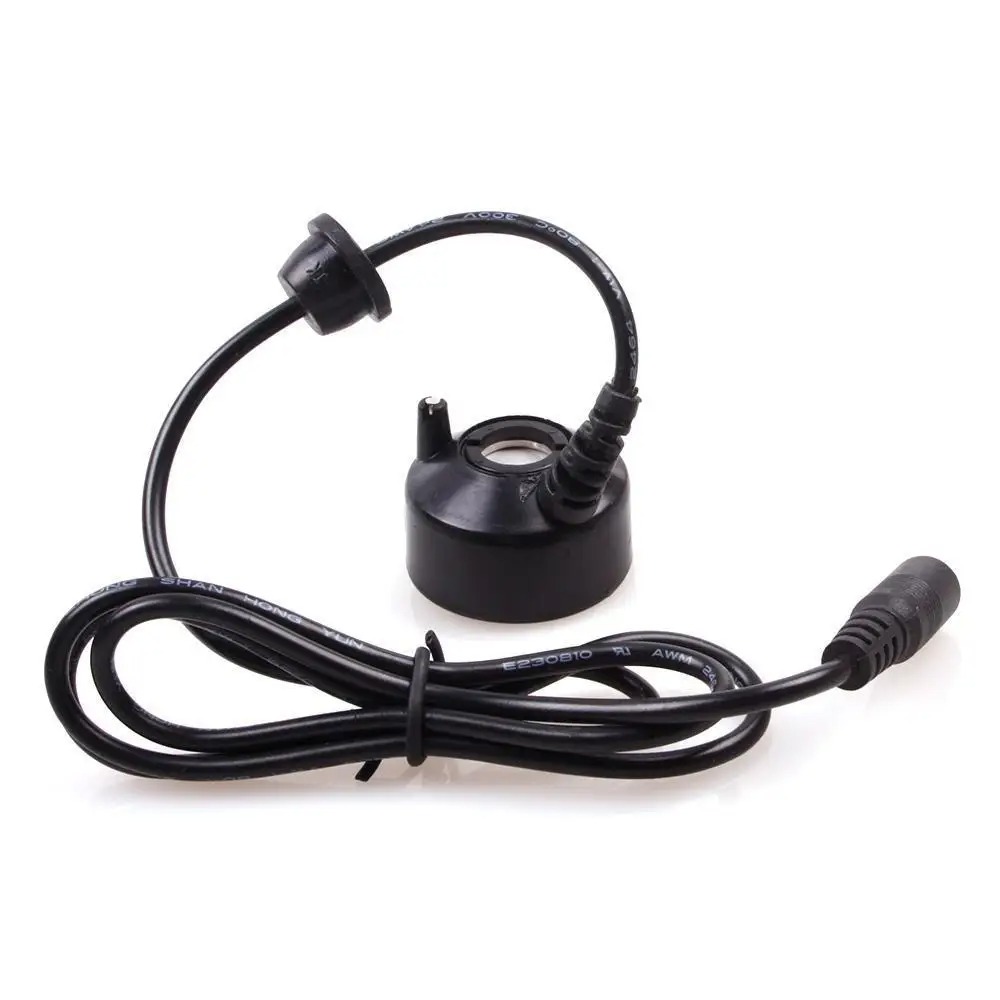

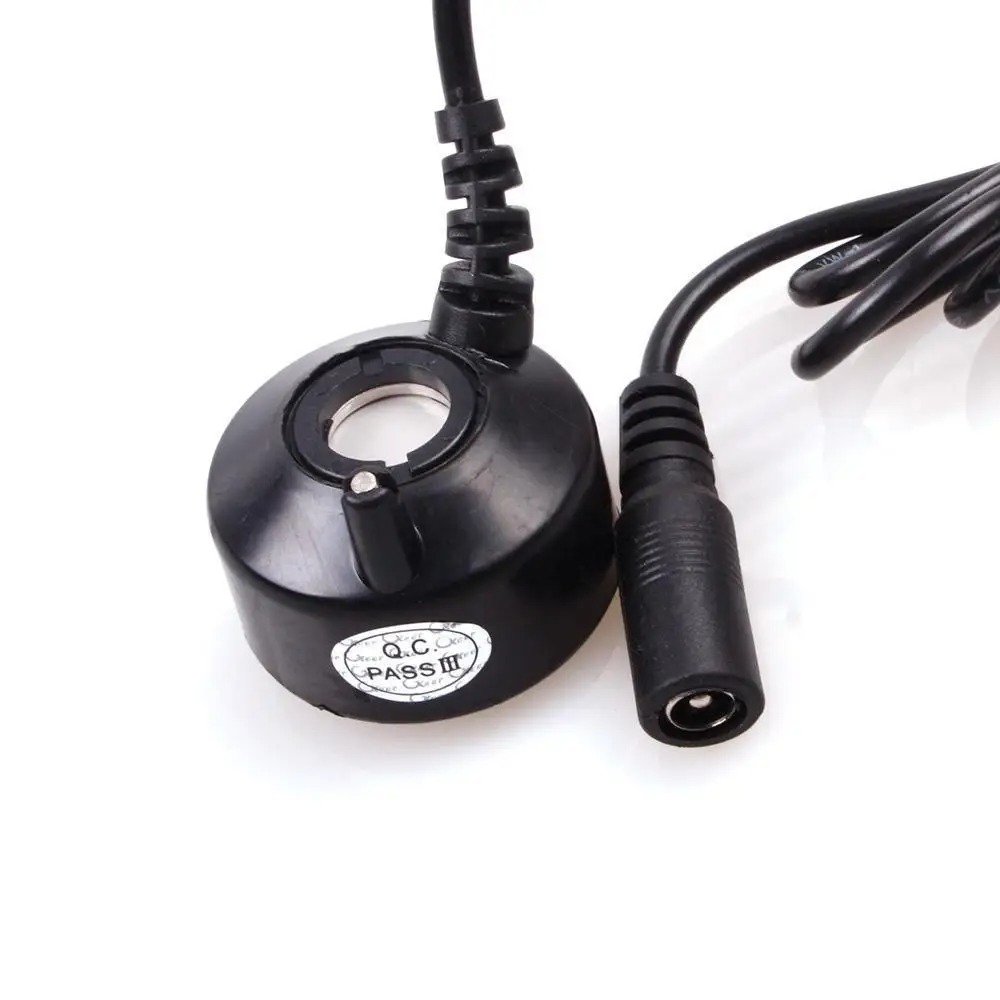

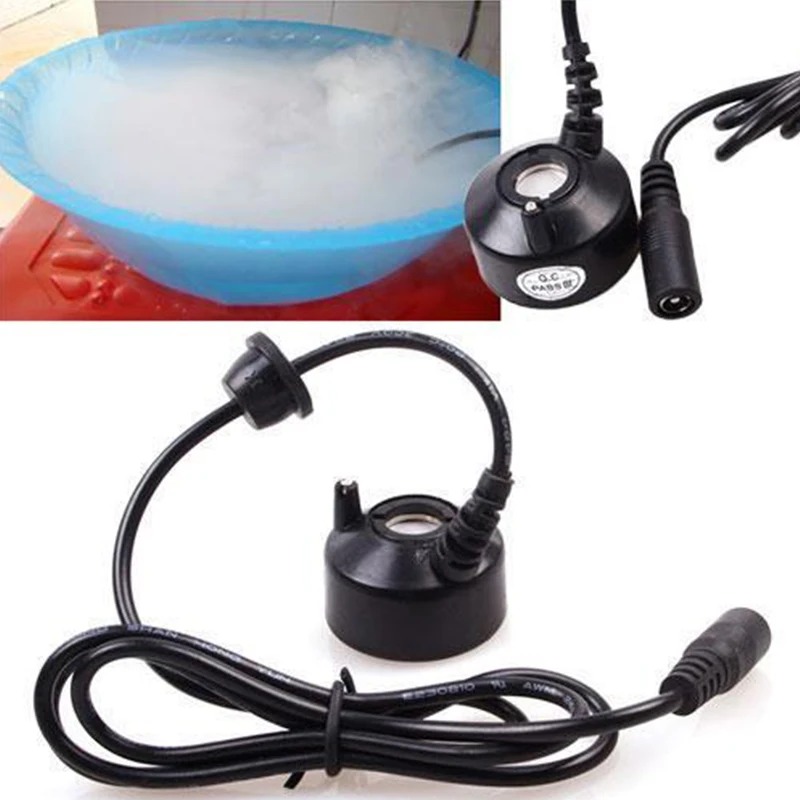

36mm Ultrasonic Mist Maker Module (24V DC)

Cool Atomization: Uses 1.7 MHz vibrations to create fine mist without heat, preserving essential oils.
Efficient Performance: Delivers $ge$ 300 mL/hour of mist while consuming only 15W–20W.
Compact & Durable: 36mm diameter design with corrosion-resistant components for easy integration.
Safety Integrated: Built-in sensor automatically shuts the unit off if water levels drop too low.
Low-Voltage Operation: Operates safely on 24V DC power, ideal for DIY and decorative projects.

SKU: EK2002 Category: Electronic Modules Tags: Cold Mist Technology, DIY Projects, Electronic Modules, Fogger, Humidifier Module, Piezoelectric Ceramic, Ultrasonic, Ultrasonic Mist Maker, Ultrasonic Technology, Water Atomizer, أجهزة الترطيب, بخاخ مياه, تقنية الموجات فوق الصوتية, تكنولوجيا التبخير البارد, رذاذ الماء, سيراميك بيزو, ضباب فوق صوتي, مشاريع اصنعها بنفسك

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

550,00 EGP

Compare

10 People watching this product now!

Payment Methods:

Description

This 36mm Ultrasonic Mist Maker Module is a high-efficiency component designed to convert water into a fine, cool mist through high-frequency ultrasonic vibrations. It is an ideal solution for applications requiring humidification, special effects, or aromatherapy.

Description

The module utilizes a piezoelectric ceramic disc that vibrates at ultrasonic frequencies (typically around 1.7 MHz). When submerged in water, these vibrations create pressure waves that break the water’s surface tension, turning liquid into tiny water droplets (mist) without the need for heat. This device operates on a 24V DC power supply, making it safe and easy to integrate into DIY projects, indoor gardening, or decorative water fountains.

Features

Ultrasonic Atomization: Produces a consistent, fine mist without heating the water, preserving the properties of added essential oils.
Energy Efficient: Operates on low-voltage DC power, providing high performance with minimal power consumption.
Easy Integration: Compact 36mm design fits easily into various containers or custom-built water features.
Durable Build: Equipped with high-quality, corrosion-resistant components suitable for water immersion.
Auto-Safety: Typically features a built-in sensor that helps prevent damage by turning the device off when water levels are too low.

Specifications

Specification	Details
Diameter	36mm
Operating Voltage	24V DC
Atomization Frequency	~1.7 MHz
Atomization Volume	≥ 300 mL/hour
Power Consumption	~15W – 20W (varies by load)
Water Depth Requirement	30mm – 50mm below the sensor
Operating Temperature	5°C to 45°C

Important Notes for Implementation:

Water Quality: Use clean, tap, or distilled water. Mineral buildup (hard water) can decrease the lifespan of the ceramic disc.

Depth: For optimal mist generation, ensure the module is submerged at the recommended depth. If the water level is too deep or too shallow, the mist production will be significantly reduced.

Maintenance: Regularly clean the ceramic disc with a soft cloth or a mild vinegar solution to prevent limescale buildup, which is the most common cause of performance degradation.

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Mist Maker	to driver circuit enable	board digital pin -> transistor -> driver enable line

📟
