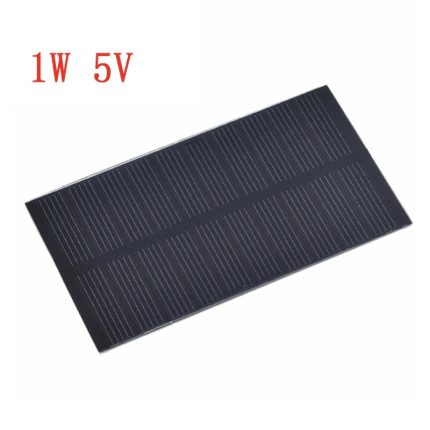

Solar Panel 1W 5V
- 1 Watt power output at ~5V
- Compact and easy to integrate
- Renewable and clean solar energy source
- Ideal for small-scale solar and battery charging projects
Apple Shopping Event
200,00 EGP
Payment Methods:
Description
The 1 Watt 5 Volt Solar Panel is a compact photovoltaic module designed to convert sunlight into electrical energy. It provides a steady 5V output at a power rating of 1 Watt, suitable for small electronics, battery charging, and low-power applications. Ideal for DIY solar projects, remote sensors, and portable devices.
Specifications
-
Power Output: 1 Watt
-
Voltage (Open Circuit): Approximately 5V
-
Current (Short Circuit): Approx. 200mA
-
Operating Voltage (Max Power Point): Around 4.5V
-
Operating Current (Max Power Point): Around 220mA
-
Dimensions: Typically small and compact (varies by manufacturer)
-
Material: Monocrystalline or polycrystalline silicon cells
-
Operating Temperature: -40°C to +85°C
-
Connection: Leads or solder pads for easy integration
Features
-
Compact and lightweight design
-
Provides clean, renewable energy from sunlight
-
Low maintenance and durable construction
-
Suitable for charging small batteries or powering microcontrollers
-
Can be used indoors with adequate light exposure (lower efficiency)
Applications
-
Power source for small electronics and sensors
-
Battery charging (e.g., Li-ion or NiMH batteries)
-
Educational solar energy projects
-
Remote monitoring and IoT devices
-
Portable and off-grid power solutions
نظرة عامة ومواصفات المنتج — بالعربية
Solar Panel 1W 5V متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Electronic Modules وSolar Panels and Controllers، بسعر 200,00 EGP. كود المنتج لدينا: EK490. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Type: Solar Panel
- Pa Model: 1W 5V Solar Panel
- Power (W): 1
- Output Voltage (V): 5
- Output Current (Ma): 200 (approx.)
- Length (Mm): 110
- Width (Mm): 60
- Height (Mm): 3
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Electronic Modules في إكوسترا.
Specification
Specification
| WeightWeight | 8 g |
|---|---|
| Dimensions | 4 × 3 × 1,5 cm |
| Product Type | Solar Panel |
| Model | 1W 5V Solar Panel |
| Power (W) | 1 |
| Output Voltage (V) | 5 |
| Output Current (mA) | 200 (approx.) |
| Length (mm) | 110 |
| Width (mm) | 60 |
| Height (mm) | 3 |
| Weight (g) | 25 |
| Material | Polycrystalline Silicon |
| Frame Type | Frameless |
| Output Type | DC |
| Connector Type | Solder Pads / Wire (varies) |
| Efficiency | Standard |
| Waterproof | No (unless specified) |
| Application | DIY Projects, Solar Charging, Battery Charging, Educational Use |
