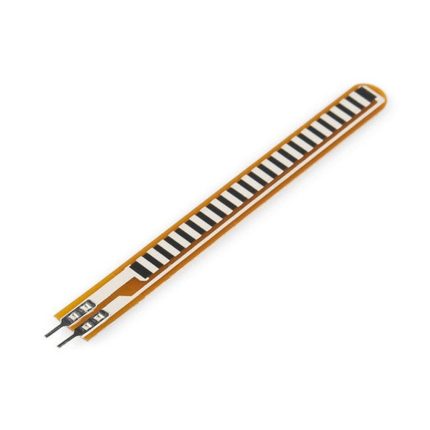

Flex Sensor 5.6 cm (Detect Bending Motion)

5.6 cm length flexible sensor
Resistance varies with bending angle (approx. 10 kΩ flat)
Easy to interface with microcontrollers
Durable and responsive to motion
Ideal for motion and gesture detection

SKU: EK500 Categories: Load / Pressure / Force / Flex Sensor, Sensors Tags: Connect flex sensor to Arduino, Flex sensor Arduino nano, Flex sensor datasheet, Flex sensor egypt, Flex Sensor price, Flex sensor with Arduino, Flex Sensor سعر, Flex sensor شرح, Load / Pressure / Force / Flex Sensor, Sensors

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

750,00 EGP

Compare

6 People watching this product now!

Payment Methods:

Description

A simple Flex Sensor 2.2″ – Bend Sensor with a length of 2.2″ which bends and flexes with a physical device. As the sensor is flex, the resistance across the sensor increases. A connector is 0.1″ spaced and breadboard friendly. Applications in – Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments, Physical Therapy.

The flex sensor is a bend detecting sensor that has got numerous applications in robotics, medical and haptic technology. The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller.

Note: The base of the sensor is sensitive to bending and may get damaged. Make sure that you bend only the sensing area.

Applications:

Angle Displacement Measurement.
Bends and Flexes physically with the motion device.
Robotics Applications.
Gaming (Virtual Motion).
Medical Devices.
Computer Peripherals.
Musical Instruments.
Physical Therapy.

Features:

Angle Displacement Measurement.
Bends and Flexes physically with the motion device.
Simple Construction.

Package Includes:

1 x SpectraSymbol Flex Sensor 2.2″ Bend Sensor for Hand Gesture Recognition.

نظرة عامة ومواصفات المنتج — بالعربية

Flex Sensor 5.6 cm (Detect Bending Motion) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Load / Pressure / Force / Flex Sensor وSensors، بسعر 750,00 EGP. كود المنتج لدينا: EK500. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Total Length Cm: 8
Active Sensor Length: 80mm
Life Cycle: >1 million
Height: 0.43mm (0.017")
Flat Resistance: 10K Ohms ±30%
Bend Resistance: minimum 20K Ohms ±30% (@ 180° pinch bend)
Power Rating: 0.5 Watts continuous; 1 Watt Peak.
الوزن: 6 g

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Load / Pressure / Force / Flex Sensor في إكوسترا.

Specification

WeightWeight	6 g
Dimensions	3 × 2 × 1 cm
total-length-cm	8
active-sensor-length	80mm
life-cycle	>1 million
height	0.43mm (0.017″)
flat-resistance	10K Ohms ±30%
bend-resistance	minimum 20K Ohms ±30% (@ 180° pinch bend)
power-rating	0.5 Watts continuous; 1 Watt Peak.
