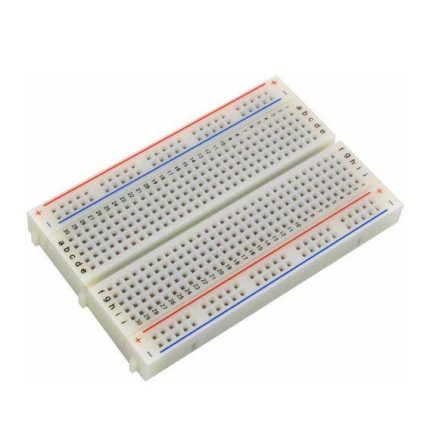

Breadboard 400 point
- 400 tie points for circuit prototyping
- Solderless and reusable
- Includes power rails for easy voltage supply
- Compact and portable design
- Compatible with standard 0.1” pitch components
Apple Shopping Event
30,00 EGP
Payment Methods:
Description
400 Tie Points – Solderless Breadboard is a high-quality breadboard with power lanes and printed top face for easy prototyping.
A breadboard is used to make up temporary circuits for testing or to try out an idea. No soldering is required so it is easy to change connections and replace components.
It is Reusable for fast build a prototype of an electronic circuit – will accept transistors, diodes, LEDs, resistors, capacitors and virtually all types of components – No soldering required – Can modify or revise the circuits easily Fit for jumper wire of 0.8mm diameter – Standard 2.54mm hole spacing Adhesive sheet on the backside of the board – Multiple breadboards can be spliced together too.
Specifications and features:
- 400 tie points
- 1 Double strip, Total 300 tie points
- 2 Power lanes, Total 100 tie points in power lanes
- Perfect for Arduino shield prototyping and testing
- Plastic housing, metal contact clips
Package Includes:
1 x 400 Tie Points Contacts Mini Circuit Experiment Solderless Breadboard
نظرة عامة ومواصفات المنتج — بالعربية
Breadboard 400 point متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Breadboard and Zero PCBs وBreadboards، بسعر 30,00 EGP. كود المنتج لدينا: EK511. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Name: Breadboard – 400 Points
- Type: Solderless Breadboard / Prototype Board
- Number Of Tie Points: 400
- Power Rails: 2 (positive and negative)
- Bus Strips: Yes, with Red/Blue Markings
- الخامة: ABS Plastic Base with Phosphor Bronze Spring Clips
- طريقة التثبيت: Solderless / Adhesive Base
- Operating Temperature: -40°C to +85°C
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Breadboard and Zero PCBs في إكوسترا.
Specification
Specification
| WeightWeight | 25 g |
|---|---|
| Dimensions | 8,2 × 5,5 × 0,8 cm |
| Product Name | Breadboard – 400 Points |
| Type | Solderless Breadboard / Prototype Board |
| Number of Tie Points | 400 |
| Power Rails | 2 (positive and negative) |
| Bus Strips | Yes, with Red/Blue Markings |
| Material | ABS Plastic Base with Phosphor Bronze Spring Clips |
| Mounting Type | Solderless / Adhesive Base |
| Operating Temperature | -40°C to +85°C |
| Applications | Arduino / Microcontroller Projects, Electronics Prototyping, DIY Circuits, Educational Electronics |
| Package Contents | 1× 400-Point Solderless Breadboard |
