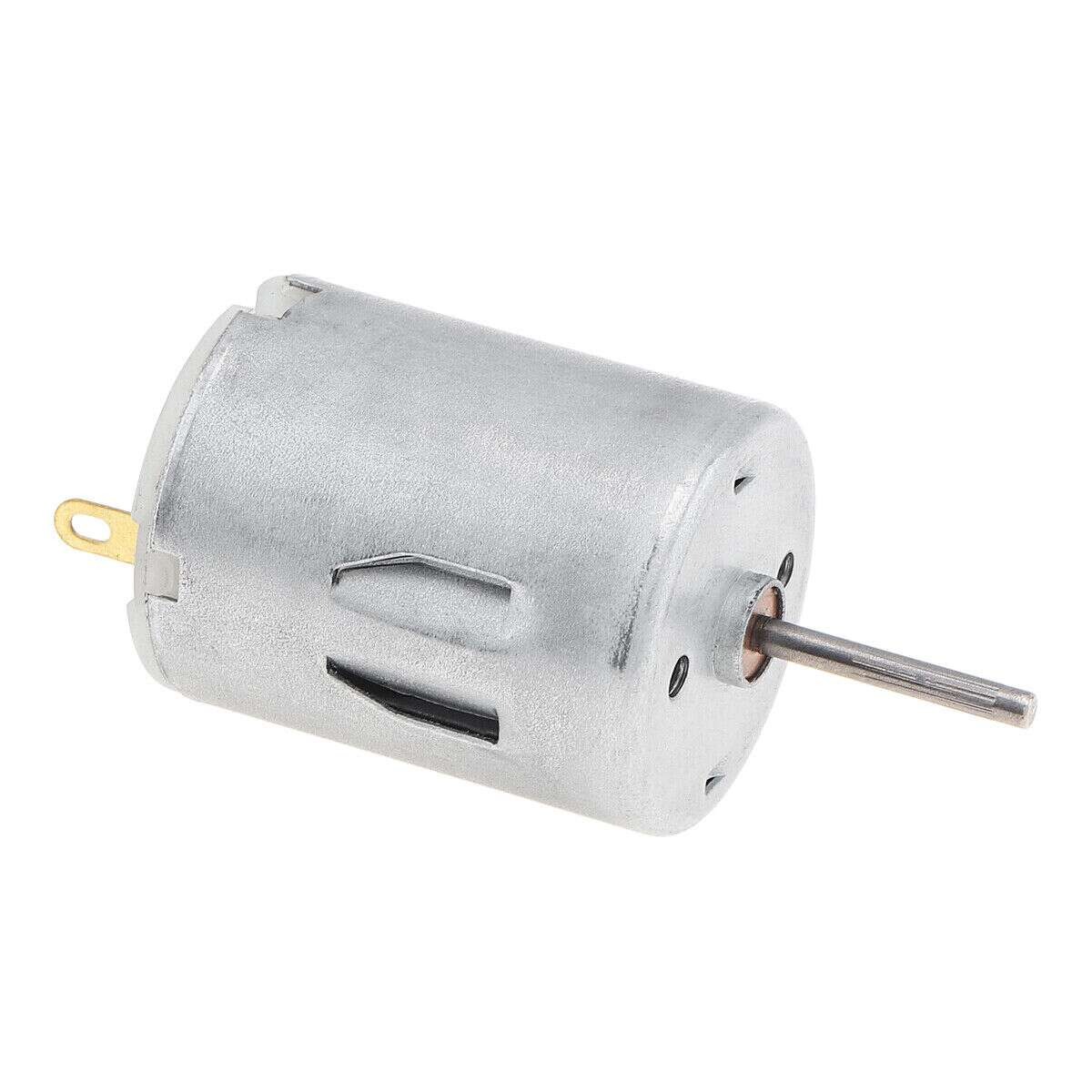

DC Motor R280 3-12V 13750RPM

  • Wide voltage range – operates from 3V to 12V DC
  • High-speed output – up to 13,750 RPM @ 12V
  • Compact body – ~24mm diameter, ~30mm length
  • Brushed DC motor – simple, efficient, and easy to drive
  • Standard face-mount holes – quick and secure installation
  • Ideal for toys & fans – perfect for hobby and prototyping use
  • Great for robotics & models – reliable performance in small builds
  • Low power and lightweight – excellent for battery-powered projects
SKU: EK1701 Categories: , Tags: ,

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

50,00 EGP

Compare
4 People watching this product now!

Payment Methods:

Description

Description

Compact and efficient R280 DC motor with a voltage range of 3-12V and a maximum speed of 13750 RPM. Perfect for small projects, toys, and hobbyist applications requiring high-speed performance.

Short Features

  • Operates between 3-12V DC
  • Maximum speed of 13750 RPM
  • Lightweight and compact design
  • Suitable for a variety of hobbyist and DIY projects
  • Durable construction for long-lasting use

Specification

  • Model: R280
  • Voltage Range: 3-12V DC
  • Speed: 13750 RPM (at 12V no-load)
  • Current: ~0.5A (no-load at 12V)
  • Torque: Suitable for lightweight applications
  • Dimensions: Compact cylindrical motor (standard R280 size)
  • Material: Metal casing with reliable internal components
  • Applications: Toys, small fans, portable tools, and RC vehicles
🔌
Pin Connections
1 Table
Pin Connections Table 1
BoardSensor PinConnection
Motorto H-bridge OUTmotor leads into an H-bridge driver's output terminals
📟
DC Motor R280 3-12V 13750RPM
7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico
DC Motor R280 3-12V 13750RPM - Arduino Uno
DC Motor R280 3-12V 13750RPM - Arduino Nano
DC Motor R280 3-12V 13750RPM - Arduino Mega
DC Motor R280 3-12V 13750RPM - ESP32
DC Motor R280 3-12V 13750RPM - ESP8266
DC Motor R280 3-12V 13750RPM - STM32
DC Motor R280 3-12V 13750RPM - Raspberry Pi Pico
📄 File: dc_motor_r280_3-12v_13750rpm_-_arduino_uno.inoArduino Uno
633 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// DC Motor R280 3-12V 13750RPM needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Uno.
6#define IN1 8
7#define IN2 9
8#define ENA 10
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: dc_motor_r280_3-12v_13750rpm_-_arduino_nano.inoArduino Nano
634 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// DC Motor R280 3-12V 13750RPM needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Nano.
6#define IN1 8
7#define IN2 9
8#define ENA 10
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: dc_motor_r280_3-12v_13750rpm_-_arduino_mega.inoArduino Mega
634 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// DC Motor R280 3-12V 13750RPM needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Mega.
6#define IN1 8
7#define IN2 9
8#define ENA 10
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: dc_motor_r280_3-12v_13750rpm_-_esp32.inoESP32
631 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// DC Motor R280 3-12V 13750RPM needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=26, IN2=27, ENA(speed)=25 on ESP32.
6#define IN1 26
7#define IN2 27
8#define ENA 25
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: dc_motor_r280_3-12v_13750rpm_-_esp8266.inoESP8266
633 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// DC Motor R280 3-12V 13750RPM needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=D5, IN2=D6, ENA(speed)=D7 on ESP8266.
6#define IN1 D5
7#define IN2 D6
8#define ENA D7
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: dc_motor_r280_3-12v_13750rpm_-_stm32.inoSTM32
637 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// DC Motor R280 3-12V 13750RPM needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=PB0, IN2=PB1, ENA(speed)=PA8 on STM32.
6#define IN1 PB0
7#define IN2 PB1
8#define ENA PA8
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
📄 File: dc_motor_r280_3-12v_13750rpm_-_raspberry_pi_pico.inoRaspberry Pi Pico
643 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// DC Motor R280 3-12V 13750RPM needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=14, IN2=15, ENA(speed)=16 on Raspberry Pi Pico.
6#define IN1 14
7#define IN2 15
8#define ENA 16
9
10void setup() {
11 Serial.begin(115200);
12 pinMode(IN1, OUTPUT);
13 pinMode(IN2, OUTPUT);
14 pinMode(ENA, OUTPUT);
15}
16
17void loop() {
18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);
19 analogWrite(ENA, 200); // run forward at ~78% speed
20 delay(2000);
21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop
22 delay(1000);
23}
Bare DC motor - needs an H-bridge driver module (L298N/L293D/L9110S) wired between it and the microcontroller.
All copy right for ekostra.com

نظرة عامة ومواصفات المنتج — بالعربية

DC Motor R280 3-12V 13750RPM متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم DC Motor وMotors | Drivers | Pumps | Actuators، بسعر 50,00 EGP. كود المنتج لدينا: EK1701. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

  • الموديل: R280
  • Operating Voltage: 3–12 V DC
  • No Load Speed: 13,750 RPM (at 12V)
  • Rated Current: 120–300 mA (depends on voltage and load)
  • Stall Current: ~1.2 A (typical at 12V)
  • Shaft Type: Round Metal Shaft
  • Motor Type: Brushed DC Motor
  • Torque: ~10–20 g·cm (depends on load and voltage)

منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.

تصفّح المزيد من DC Motor في إكوسترا.

Specification

Specification

WeightWeight40 g
Dimensions2,8 × 2 × 1,5 cm
ModelR280
Operating Voltage3–12 V DC
No-Load Speed13,750 RPM (at 12V)
Rated Current120–300 mA (depends on voltage and load)
Stall Current~1.2 A (typical at 12V)
Shaft TypeRound Metal Shaft
Motor TypeBrushed DC Motor
Torque~10–20 g·cm (depends on load and voltage)
Operating Temperature-10°C to +60°C
Mounting2 Screw Holes for Bracket
ApplicationsSmall Robotics, RC Vehicles, DIY Electronics Projects, Arduino / Raspberry Pi Projects
Package Contents1× R280 DC Motor (3–12V, 13,750 RPM)
