TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
Wire Description
Red – Positive
Brown – Negative
Orange – Signal
Features:
Gear Type: Metal gear
Servo Plug: JR (Fits JR and Futaba)
Servo arms & screws included, and fit with Futaba servo arm
It’s a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec , GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
CE & RoHS approved
We have upgraded our servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.
Package Includes:

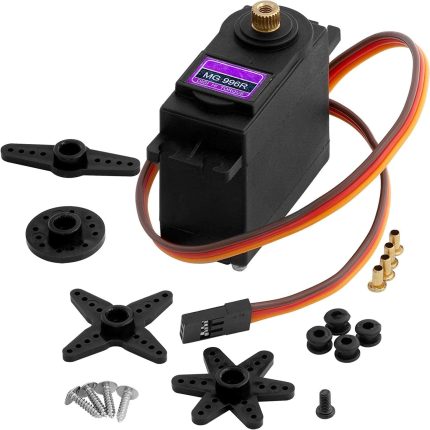

1 x TowerPro MG996R Digital High Torque Servo Motor and Accessories Parts(as shown in the image)
MG996R Metal Gear Servo Motor - 180 Rotation, 11 kg cm High Torque - Arduino Uno
MG996R Metal Gear Servo Motor - 180 Rotation, 11 kg cm High Torque - Arduino Nano
MG996R Metal Gear Servo Motor - 180 Rotation, 11 kg cm High Torque - Arduino Mega
MG996R Metal Gear Servo Motor - 180 Rotation, 11 kg cm High Torque - ESP32
MG996R Metal Gear Servo Motor - 180 Rotation, 11 kg cm High Torque - ESP8266
MG996R Metal Gear Servo Motor - 180 Rotation, 11 kg cm High Torque - STM32
MG996R Metal Gear Servo Motor - 180 Rotation, 11 kg cm High Torque - Raspberry Pi Pico
📄 File: mg996r_metal_gear_servo_motor_-_180_rotation,_11_kg_cm_high_torque_-_arduino_uno.inoArduino Uno
567 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Signal pin 9 on Arduino Uno. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
5// Signal pin 9 on Arduino Nano. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
6#include <Servo.h>
7
8Servo myServo;
9#define SERVO_PIN 9
10
11voidsetup() {
12Serial.begin(115200);
13 myServo.attach(SERVO_PIN);
14}
15
16voidloop() {
17for (int angle = 0; angle <= 180; angle += 5) {
18 myServo.write(angle);
19delay(20);
20 }
21for (int angle = 180; angle >= 0; angle -= 5) {
22 myServo.write(angle);
23delay(20);
24 }
25}
📄 File: mg996r_metal_gear_servo_motor_-_180_rotation,_11_kg_cm_high_torque_-_arduino_mega.inoArduino Mega
568 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Signal pin 9 on Arduino Mega. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
5// Signal pin 25 on ESP32. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
5// Signal pin D1 on ESP8266. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
5// Signal pin PA8 on STM32. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
6#include <Servo.h>
7
8Servo myServo;
9#define SERVO_PIN PA8
10
11voidsetup() {
12Serial.begin(115200);
13 myServo.attach(SERVO_PIN);
14}
15
16voidloop() {
17for (int angle = 0; angle <= 180; angle += 5) {
18 myServo.write(angle);
19delay(20);
20 }
21for (int angle = 180; angle >= 0; angle -= 5) {
22 myServo.write(angle);
23delay(20);
24 }
25}
📄 File: mg996r_metal_gear_servo_motor_-_180_rotation,_11_kg_cm_high_torque_-_raspberry_pi_pico.inoRaspberry Pi Pico
575 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// Signal pin 15 on Raspberry Pi Pico. Power the servo from a separate 5V supply for anything beyond a single small SG90 - a board's own 5V pin can't supply a servo's stall current.
6#include <Servo.h>
7
8Servo myServo;
9#define SERVO_PIN 15
10
11voidsetup() {
12Serial.begin(115200);
13 myServo.attach(SERVO_PIN);
14}
15
16voidloop() {
17for (int angle = 0; angle <= 180; angle += 5) {
18 myServo.write(angle);
19delay(20);
20 }
21for (int angle = 180; angle >= 0; angle -= 5) {
22 myServo.write(angle);
23delay(20);
24 }
25}
High-torque standard-size servo, 0-180 degree position control.
نظرة عامة ومواصفات المنتج — بالعربية
MG996R Metal Gear Servo Motor – 180° Rotation, 11 kg·cm High Torque متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Motors | Drivers | Pumps | Actuators وServo Motors، بسعر 225,00 EGP. كود المنتج لدينا: EK350. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
جهد التشغيل (فولت): 4.8 ~ 6.6
Temperature Range: 0- 55℃
Stall Torque 4 8V Kg Cm: 9.40
Stall Torque 6 6V Kg Cm: 11
Operating Speed 4 8V: 0.19sec/60°
Operating Speed 6 6V: 0.15sec/60°
Dead Bandwidth: 1uS
Gear Type: Half Metal
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
Specification
