DC Motor

Name: DC Motor
SKU: EK395
Price: 30.00 EGP
Availability: InStock

DC Motor
1. Type: Brushed DC
2. Voltage: 3–12 V typical
3. Output: Rotation
4. Mounting: Shaft and housing

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

30,00 EGP

Compare

10 People watching this product now!

Payment Methods:

Description

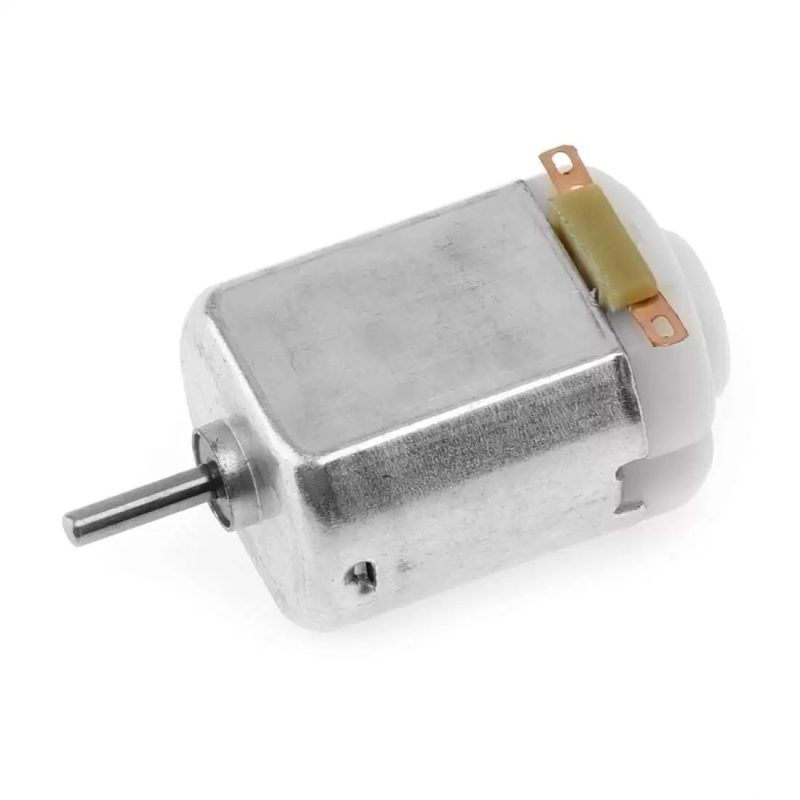

This is a standard DC motor, a rotary actuator that converts electrical energy into mechanical motion. It operates on direct current (DC) and generates a continuous rotational output when a voltage is applied. The motor typically features a cylindrical housing with a shaft protruding from one end, and two electrical terminals for power and ground.

DC motors are widely used in robotics, automation, and DIY projects for driving wheels, fans, and other moving parts. Performance parameters such as speed, torque, and power consumption depend on the applied voltage and load. This motor is suitable for low-voltage applications such as battery-powered devices and educational kits.

Type: Brushed DC motor
Voltage: Low-voltage (e.g., 3–12 V typical)
Output: Rotational motion
Mounting: Through-hole or bracket
Wide application in robotics and hobby projects
Reliable and low-cost
Terminals for easy wiring
Compact size for integration

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Motor	to H-bridge OUT	motor leads into an H-bridge driver's output terminals

📟

DC Motor

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

DC Motor - Arduino Uno

DC Motor - Arduino Nano

DC Motor - Arduino Mega

DC Motor - ESP32

DC Motor - ESP8266

DC Motor - STM32

DC Motor - Raspberry Pi Pico

📄 File: dc_motor_-_arduino_uno.inoArduino Uno

613 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Motor needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Uno.

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_motor_-_arduino_nano.inoArduino Nano

614 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Motor needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Nano.

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_motor_-_arduino_mega.inoArduino Mega

614 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Motor needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Mega.

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_motor_-_esp32.inoESP32

611 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Motor needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=26, IN2=27, ENA(speed)=25 on ESP32.

6#define IN1 26

7#define IN2 27

8#define ENA 25

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_motor_-_esp8266.inoESP8266

613 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Motor needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=D5, IN2=D6, ENA(speed)=D7 on ESP8266.

6#define IN1 D5

7#define IN2 D6

8#define ENA D7

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_motor_-_stm32.inoSTM32

617 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Motor needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=PB0, IN2=PB1, ENA(speed)=PA8 on STM32.

6#define IN1 PB0

7#define IN2 PB1

8#define ENA PA8

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_motor_-_raspberry_pi_pico.inoRaspberry Pi Pico

623 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Motor needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=14, IN2=15, ENA(speed)=16 on Raspberry Pi Pico.

6#define IN1 14

7#define IN2 15

8#define ENA 16

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

Project Notes:

Bare DC motor - needs an H-bridge driver module (L298N/L293D/L9110S) wired between it and the microcontroller.

نظرة عامة ومواصفات المنتج — بالعربية

DC Motor متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Motors | Drivers | Pumps | Actuators، بسعر 30,00 EGP. كود المنتج لدينا: EK395. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Motor Type: Brushed DC
Rated Voltage: 3–12 V (typical)
Output: Rotational
Terminals: 2 wires
Mounting: Shaft and housing (standard)
الاستخدامات: Robotics / DIY / Educational Kits
الوزن: 1 g

منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.

تصفّح المزيد من Motors | Drivers | Pumps | Actuators في إكوسترا.

Specification

WeightWeight	10 g
Dimensions	5 × 4 × 2 cm
Motor Type	Brushed DC
Rated Voltage	3–12 V (typical)
Output	Rotational
Terminals	2 wires
Mounting	Shaft and housing (standard)
Application	Robotics, DIY, Educational Kits
