Stepper Motor 5V

Rated voltage: 5V DC
Reduction Ratio: 64:1
Step Angle: 5.625° /64
Frequency: 100Hz
Self-positioning Torque: >34.3mN.m
Friction torque: 600-1200 gf.cm
Pull in torque: 300 gf.cm

SKU: EK1451 Category: Motors | Drivers | Pumps | Actuators Tags: Motors, Stepper Motor

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

70,00 EGP

Compare

4 People watching this product now!

Payment Methods:

Description

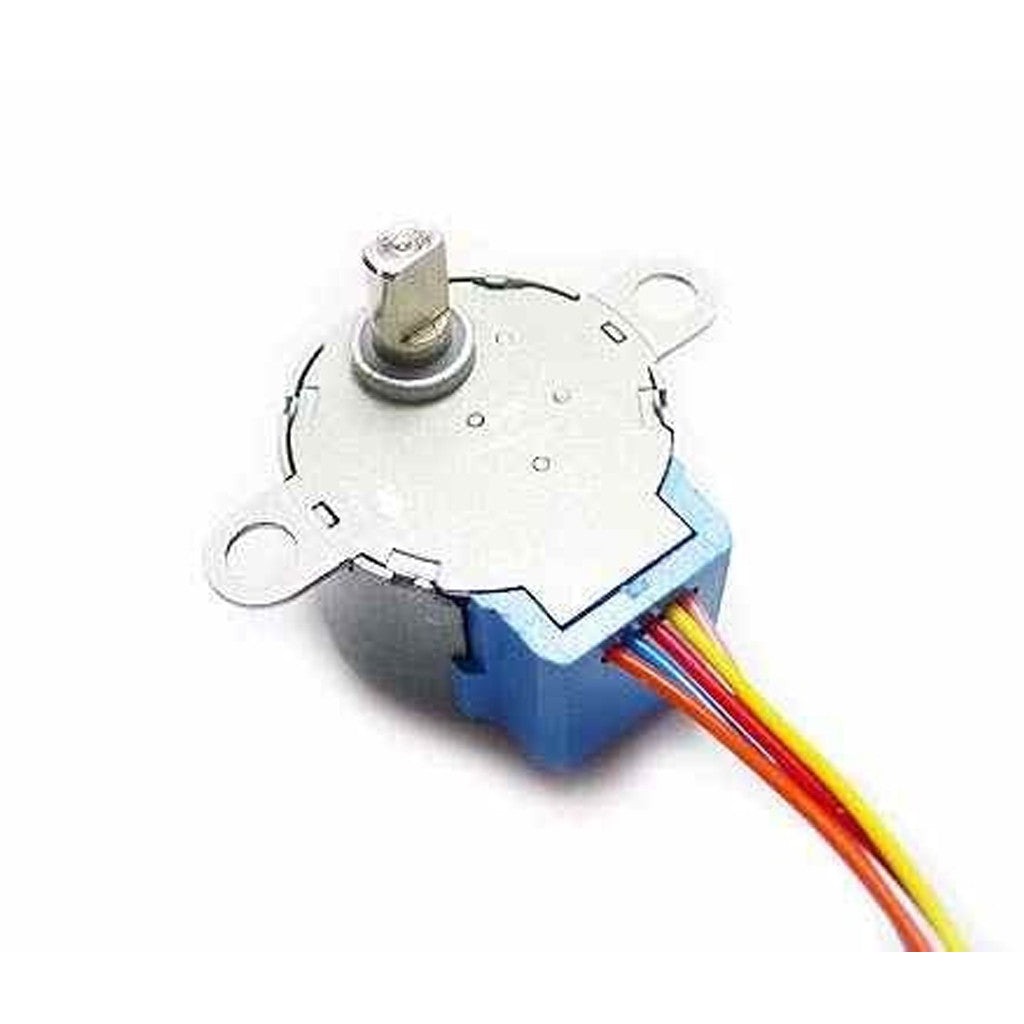

This 28BYJ-48 Stepper Motor DC 5V is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.

Thia 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed the quality of these compact stepper motors.

The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor that has 5-wires.

As stated before the pack contains ULN2003 Stepper Motor Driver which is a Mini Stepper Motor Driver. The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor.

Features :

Brand new and high-quality product.
Stepper motor with a standard interface, when used directly pluggable.
A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
Compact size stepper motor perfect for small robotics applications.

Package Includes :

1 x 28BYJ-48 Stepper Motor

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Stepper + ULN2003	IN1-IN4	4 board digital pins

📟

Stepper Motor 5V

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

Stepper Motor 5V - Arduino Uno

Stepper Motor 5V - Arduino Nano

Stepper Motor 5V - Arduino Mega

Stepper Motor 5V - ESP32

Stepper Motor 5V - ESP8266

Stepper Motor 5V - STM32

Stepper Motor 5V - Raspberry Pi Pico

📄 File: stepper_motor_5v_-_arduino_uno.inoArduino Uno

535 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// IN1-IN4 on pins 8, 9, 10, 11 on Arduino Uno

6#include <Stepper.h>

8const int STEPS_PER_REV = 2048; // 28BYJ-48 with internal gearbox (common ULN2003 pairing)

9Stepper myStepper(STEPS_PER_REV, 8, 10, 9, 11); // note IN1,IN3,IN2,IN4 order for this library

11void setup() {

12 Serial.begin(115200);

13 myStepper.setSpeed(10); // RPM

14}

16void loop() {

17 myStepper.step(STEPS_PER_REV / 4); // quarter turn

18 delay(1000);

19 myStepper.step(-STEPS_PER_REV / 4);

20 delay(1000);

21}

📄 File: stepper_motor_5v_-_arduino_nano.inoArduino Nano

536 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// IN1-IN4 on pins 8, 9, 10, 11 on Arduino Nano

6#include <Stepper.h>

8const int STEPS_PER_REV = 2048; // 28BYJ-48 with internal gearbox (common ULN2003 pairing)

9Stepper myStepper(STEPS_PER_REV, 8, 10, 9, 11); // note IN1,IN3,IN2,IN4 order for this library

11void setup() {

12 Serial.begin(115200);

13 myStepper.setSpeed(10); // RPM

14}

16void loop() {

17 myStepper.step(STEPS_PER_REV / 4); // quarter turn

18 delay(1000);

19 myStepper.step(-STEPS_PER_REV / 4);

20 delay(1000);

21}

📄 File: stepper_motor_5v_-_arduino_mega.inoArduino Mega

536 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// IN1-IN4 on pins 8, 9, 10, 11 on Arduino Mega

6#include <Stepper.h>

8const int STEPS_PER_REV = 2048; // 28BYJ-48 with internal gearbox (common ULN2003 pairing)

9Stepper myStepper(STEPS_PER_REV, 8, 10, 9, 11); // note IN1,IN3,IN2,IN4 order for this library

11void setup() {

12 Serial.begin(115200);

13 myStepper.setSpeed(10); // RPM

14}

16void loop() {

17 myStepper.step(STEPS_PER_REV / 4); // quarter turn

18 delay(1000);

19 myStepper.step(-STEPS_PER_REV / 4);

20 delay(1000);

21}

📄 File: stepper_motor_5v_-_esp32.inoESP32

533 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// IN1-IN4 on pins 13, 12, 14, 27 on ESP32

6#include <Stepper.h>

8const int STEPS_PER_REV = 2048; // 28BYJ-48 with internal gearbox (common ULN2003 pairing)

9Stepper myStepper(STEPS_PER_REV, 13, 14, 12, 27); // note IN1,IN3,IN2,IN4 order for this library

11void setup() {

12 Serial.begin(115200);

13 myStepper.setSpeed(10); // RPM

14}

16void loop() {

17 myStepper.step(STEPS_PER_REV / 4); // quarter turn

18 delay(1000);

19 myStepper.step(-STEPS_PER_REV / 4);

20 delay(1000);

21}

📄 File: stepper_motor_5v_-_esp8266.inoESP8266

535 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// IN1-IN4 on pins D5, D6, D7, D8 on ESP8266

6#include <Stepper.h>

8const int STEPS_PER_REV = 2048; // 28BYJ-48 with internal gearbox (common ULN2003 pairing)

9Stepper myStepper(STEPS_PER_REV, D5, D7, D6, D8); // note IN1,IN3,IN2,IN4 order for this library

11void setup() {

12 Serial.begin(115200);

13 myStepper.setSpeed(10); // RPM

14}

16void loop() {

17 myStepper.step(STEPS_PER_REV / 4); // quarter turn

18 delay(1000);

19 myStepper.step(-STEPS_PER_REV / 4);

20 delay(1000);

21}

📄 File: stepper_motor_5v_-_stm32.inoSTM32

541 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// IN1-IN4 on pins PB0, PB1, PB2, PB3 on STM32

6#include <Stepper.h>

8const int STEPS_PER_REV = 2048; // 28BYJ-48 with internal gearbox (common ULN2003 pairing)

9Stepper myStepper(STEPS_PER_REV, PB0, PB2, PB1, PB3); // note IN1,IN3,IN2,IN4 order for this library

11void setup() {

12 Serial.begin(115200);

13 myStepper.setSpeed(10); // RPM

14}

16void loop() {

17 myStepper.step(STEPS_PER_REV / 4); // quarter turn

18 delay(1000);

19 myStepper.step(-STEPS_PER_REV / 4);

20 delay(1000);

21}

📄 File: stepper_motor_5v_-_raspberry_pi_pico.inoRaspberry Pi Pico

545 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// IN1-IN4 on pins 14, 15, 16, 17 on Raspberry Pi Pico

6#include <Stepper.h>

8const int STEPS_PER_REV = 2048; // 28BYJ-48 with internal gearbox (common ULN2003 pairing)

9Stepper myStepper(STEPS_PER_REV, 14, 16, 15, 17); // note IN1,IN3,IN2,IN4 order for this library

11void setup() {

12 Serial.begin(115200);

13 myStepper.setSpeed(10); // RPM

14}

16void loop() {

17 myStepper.step(STEPS_PER_REV / 4); // quarter turn

18 delay(1000);

19 myStepper.step(-STEPS_PER_REV / 4);

20 delay(1000);

21}

Project Notes:

Small unipolar stepper (5V, typically 28BYJ-48 style) - pairs with a ULN2003 driver board, not a step/dir driver.

نظرة عامة ومواصفات المنتج — بالعربية

Stepper Motor 5V متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Motors | Drivers | Pumps | Actuators، بسعر 70,00 EGP. كود المنتج لدينا: EK1451. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Self Positioning Torque: >34.3mN.m
Rated Voltage: 5VDC
Reduction Ratio: 64:1
Step Angle: 5.625° /64
Frequency Hz: 100
Friction Torque Gf Cm: 600-1200
Pull In Torque Gf Cm: 300
الوزن: 4 g

منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.

تصفّح المزيد من Motors | Drivers | Pumps | Actuators في إكوسترا.

Specification

WeightWeight	40 g
Dimensions	4 × 3 × 3 cm
self-positioning-torque	>34.3mN.m
rated-voltage	5VDC
reduction-ratio	64:1
step-angle	5.625° /64
frequency-hz	100
friction-torque-gf-cm	600-1200
pull-in-torque-gf-cm	300
