A4988 Stepper Motor Driver - Ekostra Electronics In Egypt اكوسترا الكترونيكس

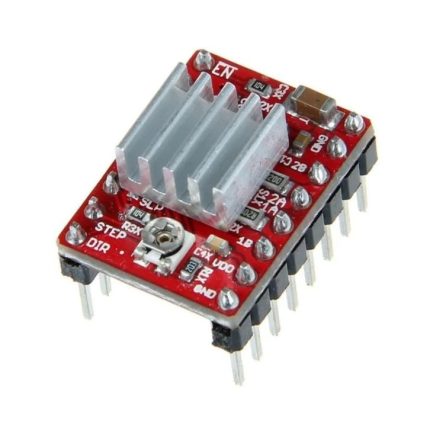

A4988 Stepper Motor Driver

  1. Supply Voltage : 8-35 VDC.
  2. Current : 1.0A  (no heatsink ).
  3. Current : 2.0A (with heat-sinking).
  4. logic input : 3 – 5.5V .
  5. Automatic current decay mode detection / choice.
  6. Mixed with slow current decay mode.
SKU: EK389 Categories: , Tags: , , , , , , , , , ,

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

75,00 EGP

Compare
18 People watching this product now!

Payment Methods:

Description

The A4988 driver Stepper Motor Driver is a complete micro-stepping motor driver with built-in converter, easy to operate. It operates from 8 V to 35 V and can deliver up to approximately 1 A per phase without a heat sink or forced air flow (it is rated for 2 A per coil with sufficient additional cooling).

A4988 driver Stepper Motor Driver includes a fixed off-time current regulator, the regulator can be in slow or mixed decay mode. The converter is the key to the easy implementation of the A4988.

There are no phase sequence tables, the high-frequency control interface programming etc. The application of A4988 interface is very suitable for a complex microprocessor is not available or overload. In the stepping operation, the chopping control in the A4988 automatically selects the current decay mode (slow or mixed). The mix decay current control scheme can reduce the audible motor noise, increased step accuracy, and reduced power consumption.

Provide internal synchronous rectification contr

ol circuitry, in order to improve the pulse width modulation (PWM) power consumption during operation.

Internal circuit protection includes thermal shutdown with hysteresis, under-voltage lockout (UVLO) and crossover current protection. Don’t need special power-up sequencing. A4988 uses surface mount QFN package (ES), the size is 5 mm × 5 mm, nominal overall package height is 0.90 mm, with an exposed thermal pad to enhance the heat dissipation function.



Features :

  1. Automatic current decay mode detection/choice.
  2. Mixed with slow current decay mode.
  3. The low power dissipation of synchronous rectifier.
  4. Internal UVLO(ultra voltage lockout).
  5. Crossover current protection.
  6. Thermal shutdown circuit.
  7. Ground fault protection.
  8. Loading and short circuit protection.
  9. The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16.

Package Includes :

1 x A4988 Stepper Motor Driver- Normal quality.

1 x Heat sink.

🔌
Pin Connections
1 Table
Pin Connections Table 1
BoardSensor PinConnection
A4988STEP/DIRboard digital pin / board digital pin
📟
A4988 Stepper Motor Driver
7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico
A4988 Stepper Motor Driver - Arduino Uno
A4988 Stepper Motor Driver - Arduino Nano
A4988 Stepper Motor Driver - Arduino Mega
A4988 Stepper Motor Driver - ESP32
A4988 Stepper Motor Driver - ESP8266
A4988 Stepper Motor Driver - STM32
A4988 Stepper Motor Driver - Raspberry Pi Pico
📄 File: a4988_stepper_motor_driver_-_arduino_uno.inoArduino Uno
813 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// A4988: STEP=3, DIR=4 on Arduino Uno. Motor power comes from the driver's own VMOT supply, not the microcontroller.
6#define STEP_PIN 3
7#define DIR_PIN 4
8
9void setup() {
10 Serial.begin(115200);
11 pinMode(STEP_PIN, OUTPUT);
12 pinMode(DIR_PIN, OUTPUT);
13}
14
15void loop() {
16 digitalWrite(DIR_PIN, HIGH);
17 for (int i = 0; i < 200; i++) { // 200 steps = 1 full revolution on a 1.8deg/step motor at full-step
18 digitalWrite(STEP_PIN, HIGH);
19 delayMicroseconds(800);
20 digitalWrite(STEP_PIN, LOW);
21 delayMicroseconds(800);
22 }
23 delay(500);
24
25 digitalWrite(DIR_PIN, LOW);
26 for (int i = 0; i < 200; i++) {
27 digitalWrite(STEP_PIN, HIGH);
28 delayMicroseconds(800);
29 digitalWrite(STEP_PIN, LOW);
30 delayMicroseconds(800);
31 }
32 delay(500);
33}
📄 File: a4988_stepper_motor_driver_-_arduino_nano.inoArduino Nano
814 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// A4988: STEP=3, DIR=4 on Arduino Nano. Motor power comes from the driver's own VMOT supply, not the microcontroller.
6#define STEP_PIN 3
7#define DIR_PIN 4
8
9void setup() {
10 Serial.begin(115200);
11 pinMode(STEP_PIN, OUTPUT);
12 pinMode(DIR_PIN, OUTPUT);
13}
14
15void loop() {
16 digitalWrite(DIR_PIN, HIGH);
17 for (int i = 0; i < 200; i++) { // 200 steps = 1 full revolution on a 1.8deg/step motor at full-step
18 digitalWrite(STEP_PIN, HIGH);
19 delayMicroseconds(800);
20 digitalWrite(STEP_PIN, LOW);
21 delayMicroseconds(800);
22 }
23 delay(500);
24
25 digitalWrite(DIR_PIN, LOW);
26 for (int i = 0; i < 200; i++) {
27 digitalWrite(STEP_PIN, HIGH);
28 delayMicroseconds(800);
29 digitalWrite(STEP_PIN, LOW);
30 delayMicroseconds(800);
31 }
32 delay(500);
33}
📄 File: a4988_stepper_motor_driver_-_arduino_mega.inoArduino Mega
814 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// A4988: STEP=3, DIR=4 on Arduino Mega. Motor power comes from the driver's own VMOT supply, not the microcontroller.
6#define STEP_PIN 3
7#define DIR_PIN 4
8
9void setup() {
10 Serial.begin(115200);
11 pinMode(STEP_PIN, OUTPUT);
12 pinMode(DIR_PIN, OUTPUT);
13}
14
15void loop() {
16 digitalWrite(DIR_PIN, HIGH);
17 for (int i = 0; i < 200; i++) { // 200 steps = 1 full revolution on a 1.8deg/step motor at full-step
18 digitalWrite(STEP_PIN, HIGH);
19 delayMicroseconds(800);
20 digitalWrite(STEP_PIN, LOW);
21 delayMicroseconds(800);
22 }
23 delay(500);
24
25 digitalWrite(DIR_PIN, LOW);
26 for (int i = 0; i < 200; i++) {
27 digitalWrite(STEP_PIN, HIGH);
28 delayMicroseconds(800);
29 digitalWrite(STEP_PIN, LOW);
30 delayMicroseconds(800);
31 }
32 delay(500);
33}
📄 File: a4988_stepper_motor_driver_-_esp32.inoESP32
811 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// A4988: STEP=26, DIR=27 on ESP32. Motor power comes from the driver's own VMOT supply, not the microcontroller.
6#define STEP_PIN 26
7#define DIR_PIN 27
8
9void setup() {
10 Serial.begin(115200);
11 pinMode(STEP_PIN, OUTPUT);
12 pinMode(DIR_PIN, OUTPUT);
13}
14
15void loop() {
16 digitalWrite(DIR_PIN, HIGH);
17 for (int i = 0; i < 200; i++) { // 200 steps = 1 full revolution on a 1.8deg/step motor at full-step
18 digitalWrite(STEP_PIN, HIGH);
19 delayMicroseconds(800);
20 digitalWrite(STEP_PIN, LOW);
21 delayMicroseconds(800);
22 }
23 delay(500);
24
25 digitalWrite(DIR_PIN, LOW);
26 for (int i = 0; i < 200; i++) {
27 digitalWrite(STEP_PIN, HIGH);
28 delayMicroseconds(800);
29 digitalWrite(STEP_PIN, LOW);
30 delayMicroseconds(800);
31 }
32 delay(500);
33}
📄 File: a4988_stepper_motor_driver_-_esp8266.inoESP8266
813 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// A4988: STEP=D5, DIR=D6 on ESP8266. Motor power comes from the driver's own VMOT supply, not the microcontroller.
6#define STEP_PIN D5
7#define DIR_PIN D6
8
9void setup() {
10 Serial.begin(115200);
11 pinMode(STEP_PIN, OUTPUT);
12 pinMode(DIR_PIN, OUTPUT);
13}
14
15void loop() {
16 digitalWrite(DIR_PIN, HIGH);
17 for (int i = 0; i < 200; i++) { // 200 steps = 1 full revolution on a 1.8deg/step motor at full-step
18 digitalWrite(STEP_PIN, HIGH);
19 delayMicroseconds(800);
20 digitalWrite(STEP_PIN, LOW);
21 delayMicroseconds(800);
22 }
23 delay(500);
24
25 digitalWrite(DIR_PIN, LOW);
26 for (int i = 0; i < 200; i++) {
27 digitalWrite(STEP_PIN, HIGH);
28 delayMicroseconds(800);
29 digitalWrite(STEP_PIN, LOW);
30 delayMicroseconds(800);
31 }
32 delay(500);
33}
📄 File: a4988_stepper_motor_driver_-_stm32.inoSTM32
815 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// A4988: STEP=PB0, DIR=PB1 on STM32. Motor power comes from the driver's own VMOT supply, not the microcontroller.
6#define STEP_PIN PB0
7#define DIR_PIN PB1
8
9void setup() {
10 Serial.begin(115200);
11 pinMode(STEP_PIN, OUTPUT);
12 pinMode(DIR_PIN, OUTPUT);
13}
14
15void loop() {
16 digitalWrite(DIR_PIN, HIGH);
17 for (int i = 0; i < 200; i++) { // 200 steps = 1 full revolution on a 1.8deg/step motor at full-step
18 digitalWrite(STEP_PIN, HIGH);
19 delayMicroseconds(800);
20 digitalWrite(STEP_PIN, LOW);
21 delayMicroseconds(800);
22 }
23 delay(500);
24
25 digitalWrite(DIR_PIN, LOW);
26 for (int i = 0; i < 200; i++) {
27 digitalWrite(STEP_PIN, HIGH);
28 delayMicroseconds(800);
29 digitalWrite(STEP_PIN, LOW);
30 delayMicroseconds(800);
31 }
32 delay(500);
33}
📄 File: a4988_stepper_motor_driver_-_raspberry_pi_pico.inoRaspberry Pi Pico
823 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// A4988: STEP=14, DIR=15 on Raspberry Pi Pico. Motor power comes from the driver's own VMOT supply, not the microcontroller.
6#define STEP_PIN 14
7#define DIR_PIN 15
8
9void setup() {
10 Serial.begin(115200);
11 pinMode(STEP_PIN, OUTPUT);
12 pinMode(DIR_PIN, OUTPUT);
13}
14
15void loop() {
16 digitalWrite(DIR_PIN, HIGH);
17 for (int i = 0; i < 200; i++) { // 200 steps = 1 full revolution on a 1.8deg/step motor at full-step
18 digitalWrite(STEP_PIN, HIGH);
19 delayMicroseconds(800);
20 digitalWrite(STEP_PIN, LOW);
21 delayMicroseconds(800);
22 }
23 delay(500);
24
25 digitalWrite(DIR_PIN, LOW);
26 for (int i = 0; i < 200; i++) {
27 digitalWrite(STEP_PIN, HIGH);
28 delayMicroseconds(800);
29 digitalWrite(STEP_PIN, LOW);
30 delayMicroseconds(800);
31 }
32 delay(500);
33}
Step/direction bipolar stepper driver, up to 1/16 microstepping.
All copy right for ekostra.com

نظرة عامة ومواصفات المنتج — بالعربية

A4988 Stepper Motor Driver متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Motor Drivers وMotors | Drivers | Pumps | Actuators، بسعر 75,00 EGP. كود المنتج لدينا: EK389. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

  • Model Series: A4988 Series
  • Voltage Rating V: 8 to 35VDC
  • Current Rating A: 1 to 2
  • Logic Voltage V: 3 ~ 5.5
  • Current A W O Heatsink: 1A
  • Current A With Heatsink: 2A
  • الوزن: 4 g

منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.

تصفّح المزيد من Motor Drivers في إكوسترا.

Specification

Specification

WeightWeight40 g
Dimensions4 × 3 × 3 cm
model-seriesA4988 Series
voltage-rating-v8 to 35VDC
current-rating-a1 to 2
logic-voltage-v3 ~ 5.5
current-a-w-o-heatsink1A
current-a-with-heatsink2A
