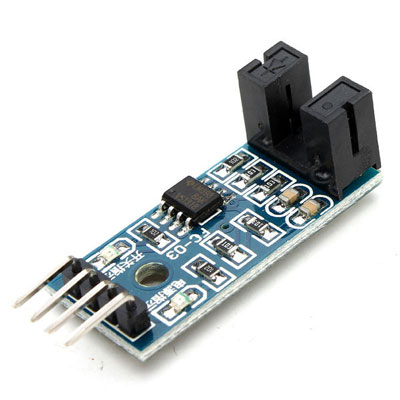

IR Photoelectric Encoder Sensor 4Pin

Name: IR Photoelectric Encoder Sensor 4Pin
SKU: EK480
Price: 45.00 EGP
Availability: InStock

SKU: EK480 Categories: Rotary Encoder, Sensors Tags: Rotary Encoder, Sensors

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

45,00 EGP

Compare

19 People watching this product now!

Payment Methods:

Description

<p>This speed measuring sensor is a wide voltage, high resolution, short response time, and the switch output speed measurement module. It can test the motor’s rotational speed with a black encoder (measured spec. is related to the encoder, the inner diameter of D type encoder that provided is 4mm, can be used for motor output shaft w/ 4mm diameter, which is TT motor we matched, yellow shell and white axis)</p> <hr /> <h4>Features and Specification:</h4> <ol> <li>Signal output: A, B two way; The TTL level</li> <li>Disc diameter: 24mm</li> <li>Inner Disc Diameter:: 4 mm</li> <li>The encoder resolution is about 20 line</li> <li>Speed measuring sensor configuration: The configuration can measure 1 road motor speed</li> </ol> <hr /> <h4><strong>Package Includes :</strong></h4> <p>1 x Double Speed Measuring Module kit</p> <p>1 x Screw set</p>

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Encoder Sensor	VCC/GND/OUT	3.3-5V / GND / board digital pin

📟

IR Photoelectric Encoder Sensor 4Pin

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

IR Photoelectric Encoder Sensor 4Pin - Arduino Uno

IR Photoelectric Encoder Sensor 4Pin - Arduino Nano

IR Photoelectric Encoder Sensor 4Pin - Arduino Mega

IR Photoelectric Encoder Sensor 4Pin - ESP32

IR Photoelectric Encoder Sensor 4Pin - ESP8266

IR Photoelectric Encoder Sensor 4Pin - STM32

IR Photoelectric Encoder Sensor 4Pin - Raspberry Pi Pico

📄 File: ir_photoelectric_encoder_sensor_4pin_-_arduino_uno.inoArduino Uno

322 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 2 on Arduino Uno

6#define SWITCH_PIN 2

8void setup() {

9 Serial.begin(115200);

10 pinMode(SWITCH_PIN, INPUT);

11}

13void loop() {

14 int state = digitalRead(SWITCH_PIN);

15 Serial.println(state == HIGH ? "Slot: TRIGGERED" : "Slot: idle");

16 delay(200);

17}

📄 File: ir_photoelectric_encoder_sensor_4pin_-_arduino_nano.inoArduino Nano

323 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 2 on Arduino Nano

6#define SWITCH_PIN 2

8void setup() {

9 Serial.begin(115200);

10 pinMode(SWITCH_PIN, INPUT);

11}

13void loop() {

14 int state = digitalRead(SWITCH_PIN);

15 Serial.println(state == HIGH ? "Slot: TRIGGERED" : "Slot: idle");

16 delay(200);

17}

📄 File: ir_photoelectric_encoder_sensor_4pin_-_arduino_mega.inoArduino Mega

323 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 2 on Arduino Mega

6#define SWITCH_PIN 2

8void setup() {

9 Serial.begin(115200);

10 pinMode(SWITCH_PIN, INPUT);

11}

13void loop() {

14 int state = digitalRead(SWITCH_PIN);

15 Serial.println(state == HIGH ? "Slot: TRIGGERED" : "Slot: idle");

16 delay(200);

17}

📄 File: ir_photoelectric_encoder_sensor_4pin_-_esp32.inoESP32

316 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 4 on ESP32

6#define SWITCH_PIN 4

8void setup() {

9 Serial.begin(115200);

10 pinMode(SWITCH_PIN, INPUT);

11}

13void loop() {

14 int state = digitalRead(SWITCH_PIN);

15 Serial.println(state == HIGH ? "Slot: TRIGGERED" : "Slot: idle");

16 delay(200);

17}

📄 File: ir_photoelectric_encoder_sensor_4pin_-_esp8266.inoESP8266

320 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin D4 on ESP8266

6#define SWITCH_PIN D4

8void setup() {

9 Serial.begin(115200);

10 pinMode(SWITCH_PIN, INPUT);

11}

13void loop() {

14 int state = digitalRead(SWITCH_PIN);

15 Serial.println(state == HIGH ? "Slot: TRIGGERED" : "Slot: idle");

16 delay(200);

17}

📄 File: ir_photoelectric_encoder_sensor_4pin_-_stm32.inoSTM32

320 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin PB4 on STM32

6#define SWITCH_PIN PB4

8void setup() {

9 Serial.begin(115200);

10 pinMode(SWITCH_PIN, INPUT);

11}

13void loop() {

14 int state = digitalRead(SWITCH_PIN);

15 Serial.println(state == HIGH ? "Slot: TRIGGERED" : "Slot: idle");

16 delay(200);

17}

📄 File: ir_photoelectric_encoder_sensor_4pin_-_raspberry_pi_pico.inoRaspberry Pi Pico

328 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 2 on Raspberry Pi Pico

6#define SWITCH_PIN 2

8void setup() {

9 Serial.begin(115200);

10 pinMode(SWITCH_PIN, INPUT);

11}

13void loop() {

14 int state = digitalRead(SWITCH_PIN);

15 Serial.println(state == HIGH ? "Slot: TRIGGERED" : "Slot: idle");

16 delay(200);

17}

Project Notes:

Slotted opto-interrupter (photoelectric encoder) - digital pulse per slot pass.

نظرة عامة ومواصفات المنتج — بالعربية

IR Photoelectric Encoder Sensor 4Pin متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Rotary Encoder وSensors، بسعر 45,00 EGP. كود المنتج لدينا: EK480. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:
