E18-D80NK Adjustable Infrared Sensor Switch 3-80cm

Adjustable sensing range: 3 cm to 80 cm
Digital NPN output (normally open)
Operates at 5V DC with low current consumption
Fast response time (<2 ms)
Compact and easy to install
Ideal for obstacle detection and automation applications

SKU: EK533 Categories: Proximity Sensor, Sensors Tags: Infrared, Proximity Sensor, Sensors

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

275,00 EGP

Compare

3 People watching this product now!

Payment Methods:

Description

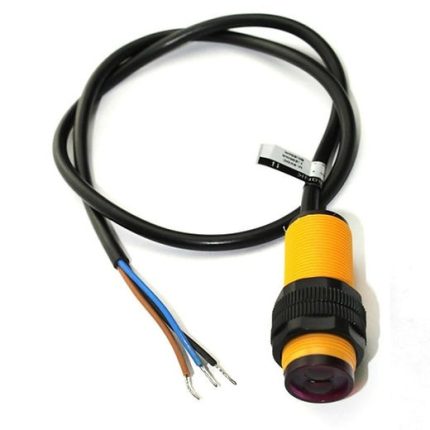

The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.

The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.

The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.

Connection

Red wire: +5V
Green wire: GND
Yellow wire: Digital output

Brown wire: +5V
Blue wire: GND
Black wire: Digital output.

Features :

Diffuse reflective type.
Digital output.
Adjustable detection distance.
Low consumption.
Compact size.

Package Includes :

1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm.

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
E18-D80NK	Brown/Blue/Black	5V (Brown) / GND (Blue) / board digital pin via pull-up, or use INPUT_PULLUP (Black)

📟

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm - Arduino Uno

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm - Arduino Nano

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm - Arduino Mega

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm - ESP32

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm - ESP8266

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm - STM32

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm - Raspberry Pi Pico

📄 File: e18-d80nk_adjustable_infrared_sensor_switch_3-80cm_-_arduino_uno.inoArduino Uno

444 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 7 on Arduino Uno. Onboard comparator IC (e.g. LM393) gives a clean digital output - no ADC needed.

6#define IR_PIN 7

8void setup() {

9 Serial.begin(115200);

10 pinMode(IR_PIN, INPUT);

11}

13void loop() {

14 int obstacle = digitalRead(IR_PIN); // most modules: LOW = obstacle detected

15 Serial.println(obstacle == LOW ? "Obstacle detected!" : "Path clear.");

16 delay(200);

17}

📄 File: e18-d80nk_adjustable_infrared_sensor_switch_3-80cm_-_arduino_nano.inoArduino Nano

445 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 7 on Arduino Nano. Onboard comparator IC (e.g. LM393) gives a clean digital output - no ADC needed.

6#define IR_PIN 7

8void setup() {

9 Serial.begin(115200);

10 pinMode(IR_PIN, INPUT);

11}

13void loop() {

14 int obstacle = digitalRead(IR_PIN); // most modules: LOW = obstacle detected

15 Serial.println(obstacle == LOW ? "Obstacle detected!" : "Path clear.");

16 delay(200);

17}

📄 File: e18-d80nk_adjustable_infrared_sensor_switch_3-80cm_-_arduino_mega.inoArduino Mega

445 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 7 on Arduino Mega. Onboard comparator IC (e.g. LM393) gives a clean digital output - no ADC needed.

6#define IR_PIN 7

8void setup() {

9 Serial.begin(115200);

10 pinMode(IR_PIN, INPUT);

11}

13void loop() {

14 int obstacle = digitalRead(IR_PIN); // most modules: LOW = obstacle detected

15 Serial.println(obstacle == LOW ? "Obstacle detected!" : "Path clear.");

16 delay(200);

17}

📄 File: e18-d80nk_adjustable_infrared_sensor_switch_3-80cm_-_esp32.inoESP32

440 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 27 on ESP32. Onboard comparator IC (e.g. LM393) gives a clean digital output - no ADC needed.

6#define IR_PIN 27

8void setup() {

9 Serial.begin(115200);

10 pinMode(IR_PIN, INPUT);

11}

13void loop() {

14 int obstacle = digitalRead(IR_PIN); // most modules: LOW = obstacle detected

15 Serial.println(obstacle == LOW ? "Obstacle detected!" : "Path clear.");

16 delay(200);

17}

📄 File: e18-d80nk_adjustable_infrared_sensor_switch_3-80cm_-_esp8266.inoESP8266

442 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin D6 on ESP8266. Onboard comparator IC (e.g. LM393) gives a clean digital output - no ADC needed.

6#define IR_PIN D6

8void setup() {

9 Serial.begin(115200);

10 pinMode(IR_PIN, INPUT);

11}

13void loop() {

14 int obstacle = digitalRead(IR_PIN); // most modules: LOW = obstacle detected

15 Serial.println(obstacle == LOW ? "Obstacle detected!" : "Path clear.");

16 delay(200);

17}

📄 File: e18-d80nk_adjustable_infrared_sensor_switch_3-80cm_-_stm32.inoSTM32

442 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin PB1 on STM32. Onboard comparator IC (e.g. LM393) gives a clean digital output - no ADC needed.

6#define IR_PIN PB1

8void setup() {

9 Serial.begin(115200);

10 pinMode(IR_PIN, INPUT);

11}

13void loop() {

14 int obstacle = digitalRead(IR_PIN); // most modules: LOW = obstacle detected

15 Serial.println(obstacle == LOW ? "Obstacle detected!" : "Path clear.");

16 delay(200);

17}

📄 File: e18-d80nk_adjustable_infrared_sensor_switch_3-80cm_-_raspberry_pi_pico.inoRaspberry Pi Pico

452 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Digital pin 16 on Raspberry Pi Pico. Onboard comparator IC (e.g. LM393) gives a clean digital output - no ADC needed.

6#define IR_PIN 16

8void setup() {

9 Serial.begin(115200);

10 pinMode(IR_PIN, INPUT);

11}

13void loop() {

14 int obstacle = digitalRead(IR_PIN); // most modules: LOW = obstacle detected

15 Serial.println(obstacle == LOW ? "Obstacle detected!" : "Path clear.");

16 delay(200);

17}

Project Notes:

IR proximity switch with adjustable range - digital output (NPN).

نظرة عامة ومواصفات المنتج — بالعربية

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Proximity Sensor وSensors، بسعر 275,00 EGP. كود المنتج لدينا: EK533. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Product Name: E18-D80NK Adjustable Infrared Sensor Switch
Type: Infrared Proximity Sensor / Switch
الموديل: E18-D80NK
Detection Range: 3–80 cm (adjustable)
Operating Voltage: 3.3–5 V DC
Output Type: Digital (High/Low)
Output Current: ≤100 mA
Sensing Method: Infrared Reflection

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Proximity Sensor في إكوسترا.

Specification

WeightWeight	6 g
Dimensions	3,6 × 1,4 × 1,8 cm
Product Name	E18-D80NK Adjustable Infrared Sensor Switch
Type	Infrared Proximity Sensor / Switch
Model	E18-D80NK
Detection Range	3–80 cm (adjustable)
Operating Voltage	3.3–5 V DC
Output Type	Digital (High/Low)
Output Current	≤100 mA
Sensing Method	Infrared Reflection
Response Time	<2 ms (typical)
Mounting Type	Through-Hole / Bracket Mount
Material	Plastic Housing with PCB
Operating Temperature	-10°C to +70°C
Applications	Obstacle Detection, Object Sensing, Arduino / Microcontroller Projects, DIY Robotics, Automation
Package Contents	1× E18-D80NK Adjustable Infrared Sensor Switch 3–80 cm
