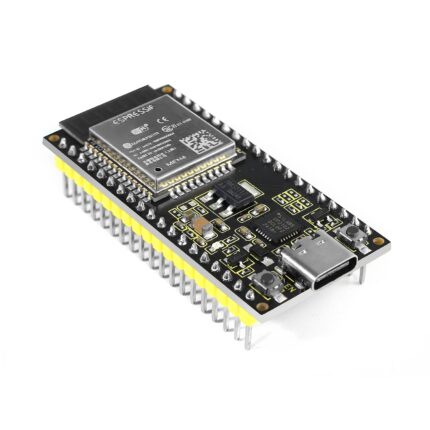

ESP32 Development Board 38 pin WIFI – Bluetooth (Type C)

Dual-Core ESP32 Processor with WiFi and Bluetooth support
38 GPIO Pins for versatile connectivity
Type-C USB Port for fast and reliable power/data
Built-in Flash & Antenna for wireless applications
Ideal for IoT, Smart Devices, and Embedded Projects

SKU: EK1819 Categories: AI Thinker ESP Modules and Development Boards, Development Boards, ESP WiFi Module Tags: AI Thinker ESP Modules and Development Boards, Bluetooth, Development Boards, ESP WiFi Module., ESP32, WiFi

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

420,00 EGP

Compare

8 People watching this product now!

Payment Methods:

Description

This module is a 38-pin ESP32 Development Board featuring WiFi and Bluetooth connectivity, and equipped with a USB Type-C interface for faster and more reliable power and data transfer.

Powered by the ESP32 dual-core processor, this board offers high performance, low power consumption, and built-in wireless capabilities, making it ideal for a wide range of IoT applications such as smart home systems, wearable devices, wireless sensor networks, and automation projects.

With 38 GPIO pins, it provides rich peripheral options including PWM, ADC, DAC, I2C, SPI, UART, and more. The Type-C connector allows for modern compatibility and robust connectivity, while its compact, breadboard-friendly layout makes it perfect for both prototyping and final project deployment.

Features:

Based on ESP32 dual-core 32-bit LX6 microprocessor
Built-in WiFi (802.11 b/g/n) and Bluetooth 4.2 (Classic + BLE)
USB Type-C interface for power and programming
38 GPIO pins with support for ADC, DAC, I2C, SPI, PWM, UART
Operating voltage: 3.3V logic, powered via 5V USB
Compact and breadboard-friendly design
Ideal for IoT, wireless control, and embedded development

Package Includes:
1 x ESP32 Development Board 38-pin WiFi + Bluetooth (USB Type-C)

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
ESP32	(program directly, no wiring needed)	connect via its own USB port

📟

ESP32 Development Board 38 pin WIFI - Bluetooth (Type C)

1 Example • C/C++ | Boards: ESP32

Wrap

ESP32 Development Board 38 pin WIFI - Bluetooth (Type C) - ESP32

📄 File: esp32_development_board_38_pin_wifi_-_bluetooth_(type_c)_-_esp32.inoESP32

435 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5#include <WiFi.h>

7const char* ssid = "YOUR_WIFI_SSID";

8const char* password = "YOUR_WIFI_PASSWORD";

10void setup() {

11 Serial.begin(115200);

12 WiFi.begin(ssid, password);

13 Serial.print("Connecting");

14 while (WiFi.status() != WL_CONNECTED) {

15 delay(500);

16 Serial.print(".");

17 }

18 Serial.print("\nConnected, IP: ");

19 Serial.println(WiFi.localIP());

20}

22void loop() {

23}

Project Notes:

This is a standalone ESP32 development board, not a peripheral you wire to another board - you program it directly (it IS the "board"). Shown here: a basic WiFi-connect sketch you'd upload to it.

نظرة عامة ومواصفات المنتج — بالعربية

ESP32 Development Board 38 pin WIFI – Bluetooth (Type C) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم AI Thinker ESP Modules and Development Boards وDevelopment Boards وESP WiFi Module، بسعر 420,00 EGP. كود المنتج لدينا: EK1819. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

المتحكم الدقيق: ESP32 (dual-core, 32-bit)
Connectivity: Wi-Fi & Bluetooth
Pins: 38 GPIO
Usb Interface: Type-C
Operating Voltage: 3.3V
الخامة: PCB with electronic components
Usage: IoT projects, wireless communication, robotics, embedded systems
الوزن: 1 g

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من AI Thinker ESP Modules and Development Boards في إكوسترا.

Specification

WeightWeight	10 g
Dimensions	5,5 × 2,8 × 1,2 cm
Microcontroller	ESP32 (dual-core, 32-bit)
Connectivity	Wi-Fi & Bluetooth
Pins	38 GPIO
USB Interface	Type-C
Operating Voltage	3.3V
Material	PCB with electronic components
Usage	IoT projects, wireless communication, robotics, embedded systems
