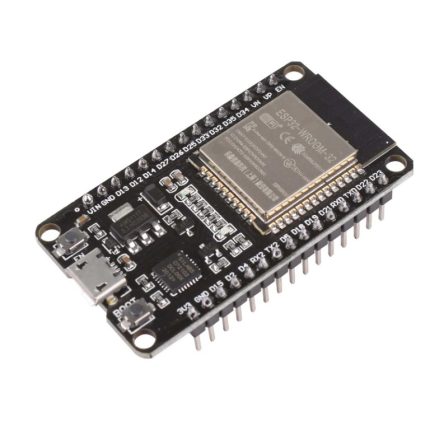

ESP32 Development Board CH9102X WiFi+Bluetooth

Ultra-low-power management.
4 MB Flash.
Current: 80 mA.
Supply Voltage: 3.0 V ~ 3.6 V.
Data Rate: 150 Mbps.
Frequency: 2.4 GHz.

SKU: EK338 Categories: ESP WiFi Module, IoT and Wireless Tags: Bluetooth, ESP WiFi Module., ESP32, IoT and Wireless, WiFi

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Original price was: 400,00 EGP.Current price is: 350,00 EGP.

Compare

16 People watching this product now!

Payment Methods:

Description

ESP32 comes in the nodemcu structure we are familiar with, but it also offers bluetooth support.
Exciting for IOT applications, this ESP-WROOM-32 model has internal antenna, RF balun, power amplifier, low-noise amplifier, filters and power management unit.
It has 2.4 GHz dual-mode Wi-Fi and TSMC 40nm low power technology Bluetooth chips.

Specifications:

High price/performance ratio.
Suitable for embedded projects with its small dimensions
It is quite powerful with LWIP protocol support and Freertos.
Supports AP,STA and AP+STA modes
Lua program supports

Steps:

Download and install the Arduino IDE.
Open https://github.com/espressif/arduino-esp32, install according to the explanation in the installation part.
Install the CP2102 driver for the serial communication chip.
Install the product on your computer with a USB micro cable.
Copy the test program below to the arduino IDE.
Select ESP32 Dev Module from Tools/Boards
Select the port where you plug the ESP32 into.
Press the BOOT button on the ESP32. Upload it on the Arduino IDE. It takes about 15 seconds. It is recommended to keep the BOOT button pressed during this time.
Open the serial terminal and select baud 9600 (normally 9600)
It will type the word Hello every second.

Useful Links:

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
ESP32	(program directly, no wiring needed)	connect via its own USB port

📟

ESP32 Development Board CH9102X WiFi+Bluetooth

1 Example • C/C++ | Boards: ESP32

Wrap

ESP32 Development Board CH9102X WiFi+Bluetooth - ESP32

📄 File: esp32_development_board_ch9102x_wifi+bluetooth_-_esp32.inoESP32

435 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5#include <WiFi.h>

7const char* ssid = "YOUR_WIFI_SSID";

8const char* password = "YOUR_WIFI_PASSWORD";

10void setup() {

11 Serial.begin(115200);

12 WiFi.begin(ssid, password);

13 Serial.print("Connecting");

14 while (WiFi.status() != WL_CONNECTED) {

15 delay(500);

16 Serial.print(".");

17 }

18 Serial.print("\nConnected, IP: ");

19 Serial.println(WiFi.localIP());

20}

22void loop() {

23}

Project Notes:

This is a standalone ESP32 development board, not a peripheral you wire to another board - you program it directly (it IS the "board"). Shown here: a basic WiFi-connect sketch you'd upload to it.

نظرة عامة ومواصفات المنتج — بالعربية

ESP32 Development Board CH9102X WiFi+Bluetooth متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم ESP WiFi Module وIoT and Wireless، بسعر 350,00 EGP. كود المنتج لدينا: EK338. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Processor: Two Low-Power Xtensa 32-bit LX6 Microprocessors
Operating Voltage V: 3.0V – 3.6V
Operating Current Ma: 80
Clock Frequency Mhz: 80 ~ 240
Flash Memory Mb: 4
Data Rate Mbps: 150
Sram Memory Kb: 520
الوزن: 35 g

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من ESP WiFi Module في إكوسترا.

Specification

WeightWeight	35,0000 g
Dimensions	28 × 45 × 14 cm
processor	Two Low-Power Xtensa 32-bit LX6 Microprocessors
operating-voltage-v	3.0V – 3.6V
operating-current-ma	80
clock-frequency-mhz	80 ~ 240
flash-memory-mb	4
data-rate-mbps	150
sram-memory-kb	520
