WiFi Serial ESP-01 Breakout Board

Breadboard-friendly design for easy prototyping.
Full access to all ESP-01/ESP-01S pins.
Built-in 3.3V regulator for stable power.
Compact, lightweight, and portable.
Compatible with ESP-01 and ESP-01S modules.
Ideal for IoT and Arduino projects.

SKU: EK1297 Categories: ESP WiFi Module, IoT and Wireless Tags: ESP WiFi Module., ESP-01 Breadboard Adapter, ESP-01 for Arduino, ESP-01S Breadboard Module, ESP-01S Breakout Board, ESP8266 Breakout Board, ESP8266 WiFi Adapter, IoT and Wireless, IoT Breadboard Adapter, Serial WiFi Transceiver, WiFi, WiFi Module Adapter

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

40,00 EGP

Compare

13 People watching this product now!

Payment Methods:

Description

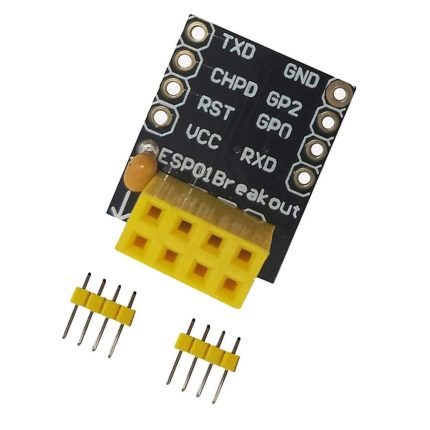

The ESP-01/ESP-01S Breakout Board is designed for seamless integration of ESP-01 and ESP-01S modules into breadboard setups. It simplifies prototyping by providing easy access to all pins, making it perfect for serial WiFi transceiver networks and Arduino-based IoT projects. Whether you’re building smart home systems, sensor networks, or other IoT applications, this breakout board enhances convenience and efficiency in your designs.

Features

Breadboard-Friendly Design: Easily plugs into standard breadboards without pin conflicts.
Pin Access: Provides full access to all ESP-01/ESP-01S pins for hassle-free wiring.
Stable Power Supply: Integrated 3.3V regulator ensures safe and stable operation.
Compact Size: Lightweight and space-efficient for portable and small-scale projects.
Universal Compatibility: Works with both ESP-01 and ESP-01S modules.
Ease of Use: Perfect for beginners and advanced users developing IoT solutions.

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
ESP-01	VCC/GND/TX/RX	3.3V / GND / board RX pin / board TX pin

📟

WiFi Serial ESP-01 Breakout Board

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

WiFi Serial ESP-01 Breakout Board - Arduino Uno

WiFi Serial ESP-01 Breakout Board - Arduino Nano

WiFi Serial ESP-01 Breakout Board - Arduino Mega

WiFi Serial ESP-01 Breakout Board - ESP32

WiFi Serial ESP-01 Breakout Board - ESP8266

WiFi Serial ESP-01 Breakout Board - STM32

WiFi Serial ESP-01 Breakout Board - Raspberry Pi Pico

📄 File: wifi_serial_esp-01_breakout_board_-_arduino_uno.inoArduino Uno

659 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// RX=2, TX=3 on Arduino Uno. ESP-01 is 3.3V-only for both power and logic - never feed it 5V directly.

6#include <SoftwareSerial.h>

7SoftwareSerial LINK_SERIAL(2, 3);

9void setup() {

10 Serial.begin(115200);

11 LINK_SERIAL.begin(115200); // many ESP-01 modules default to 115200; some are 9600 - check yours

12 LINK_SERIAL.println("AT");

13 LINK_SERIAL.println("AT+CWMODE=1"); // station mode

14}

16void loop() {

17 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read());

18 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // type AT+CWJAP="ssid","password" etc. in the Serial Monitor

19}

📄 File: wifi_serial_esp-01_breakout_board_-_arduino_nano.inoArduino Nano

660 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// RX=2, TX=3 on Arduino Nano. ESP-01 is 3.3V-only for both power and logic - never feed it 5V directly.

6#include <SoftwareSerial.h>

7SoftwareSerial LINK_SERIAL(2, 3);

9void setup() {

10 Serial.begin(115200);

11 LINK_SERIAL.begin(115200); // many ESP-01 modules default to 115200; some are 9600 - check yours

12 LINK_SERIAL.println("AT");

13 LINK_SERIAL.println("AT+CWMODE=1"); // station mode

14}

16void loop() {

17 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read());

18 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // type AT+CWJAP="ssid","password" etc. in the Serial Monitor

19}

📄 File: wifi_serial_esp-01_breakout_board_-_arduino_mega.inoArduino Mega

628 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// RX=19, TX=18 on Arduino Mega. ESP-01 is 3.3V-only for both power and logic - never feed it 5V directly.

6#define LINK_SERIAL Serial1

8void setup() {

9 Serial.begin(115200);

10 LINK_SERIAL.begin(115200); // many ESP-01 modules default to 115200; some are 9600 - check yours

11 LINK_SERIAL.println("AT");

12 LINK_SERIAL.println("AT+CWMODE=1"); // station mode

13}

15void loop() {

16 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read());

17 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // type AT+CWJAP="ssid","password" etc. in the Serial Monitor

18}

📄 File: wifi_serial_esp-01_breakout_board_-_esp32.inoESP32

621 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// RX=16, TX=17 on ESP32. ESP-01 is 3.3V-only for both power and logic - never feed it 5V directly.

6#define LINK_SERIAL Serial1

8void setup() {

9 Serial.begin(115200);

10 LINK_SERIAL.begin(115200); // many ESP-01 modules default to 115200; some are 9600 - check yours

11 LINK_SERIAL.println("AT");

12 LINK_SERIAL.println("AT+CWMODE=1"); // station mode

13}

15void loop() {

16 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read());

17 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // type AT+CWJAP="ssid","password" etc. in the Serial Monitor

18}

📄 File: wifi_serial_esp-01_breakout_board_-_esp8266.inoESP8266

659 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// RX=D7, TX=D8 on ESP8266. ESP-01 is 3.3V-only for both power and logic - never feed it 5V directly.

6#include <SoftwareSerial.h>

7SoftwareSerial LINK_SERIAL(D7, D8);

9void setup() {

10 Serial.begin(115200);

11 LINK_SERIAL.begin(115200); // many ESP-01 modules default to 115200; some are 9600 - check yours

12 LINK_SERIAL.println("AT");

13 LINK_SERIAL.println("AT+CWMODE=1"); // station mode

14}

16void loop() {

17 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read());

18 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // type AT+CWJAP="ssid","password" etc. in the Serial Monitor

19}

📄 File: wifi_serial_esp-01_breakout_board_-_stm32.inoSTM32

624 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// RX=PA10, TX=PA9 on STM32. ESP-01 is 3.3V-only for both power and logic - never feed it 5V directly.

6#define LINK_SERIAL Serial1

8void setup() {

9 Serial.begin(115200);

10 LINK_SERIAL.begin(115200); // many ESP-01 modules default to 115200; some are 9600 - check yours

11 LINK_SERIAL.println("AT");

12 LINK_SERIAL.println("AT+CWMODE=1"); // station mode

13}

15void loop() {

16 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read());

17 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // type AT+CWJAP="ssid","password" etc. in the Serial Monitor

18}

📄 File: wifi_serial_esp-01_breakout_board_-_raspberry_pi_pico.inoRaspberry Pi Pico

631 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// RX=1, TX=0 on Raspberry Pi Pico. ESP-01 is 3.3V-only for both power and logic - never feed it 5V directly.

6#define LINK_SERIAL Serial1

8void setup() {

9 Serial.begin(115200);

10 LINK_SERIAL.begin(115200); // many ESP-01 modules default to 115200; some are 9600 - check yours

11 LINK_SERIAL.println("AT");

12 LINK_SERIAL.println("AT+CWMODE=1"); // station mode

13}

15void loop() {

16 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read());

17 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // type AT+CWJAP="ssid","password" etc. in the Serial Monitor

18}

Project Notes:

Breakout carrier for an ESP-01 module (adds regulator/header pitch) - same AT-command UART usage as a bare ESP-01.

نظرة عامة ومواصفات المنتج — بالعربية

WiFi Serial ESP-01 Breakout Board متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم ESP WiFi Module وIoT and Wireless، بسعر 40,00 EGP. كود المنتج لدينا: EK1297. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Product Name: WiFi Serial ESP-01 Breakout Board
Compatibility: ESP-01 / ESP-01S Modules
Input Voltage: 3.3V
Regulator: On-board 3.3V LDO
واجهة الاتصال: UART (TX, RX)
Power Pins: 3.3V, GND
Additional Pins: RST, CH_PD, GPIO0, GPIO2
Usage: Easy mounting and prototyping for ESP-01

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من ESP WiFi Module في إكوسترا.

Specification

WeightWeight	8 g
Dimensions	3,5 × 2,5 × 1 cm
Product Name	WiFi Serial ESP-01 Breakout Board
Compatibility	ESP-01 / ESP-01S Modules
Input Voltage	3.3V
Regulator	On-board 3.3V LDO
Interface	UART (TX, RX)
Power Pins	3.3V, GND
Additional Pins	RST, CH_PD, GPIO0, GPIO2
Usage	Easy mounting and prototyping for ESP-01
Connector Type	2×4 Female Header
Mount Type	PCB Module
