HC-05 Bluetooth Module with 6 Pins and Integrated Button - Ekostra Electronics In Egypt اكوسترا الكترونيكس

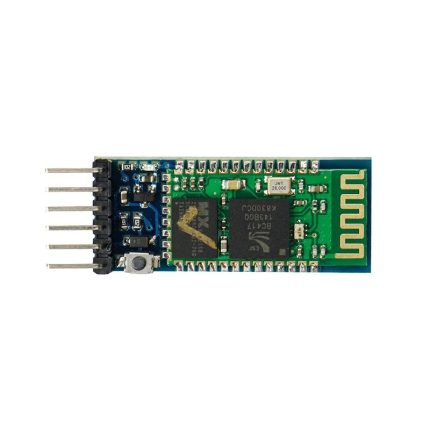

HC-05 Bluetooth Module with 6 Pins and Integrated Button

  1. Bluetooth protocol: Bluetooth Specification v2.0+EDR.
  2. Frequency: 2.4GHz ISM band.
  3. Modulation: GFSK(Gaussian Frequency Shift Keying).
  4. Emission power: =4dBm, Class 2.
  5. Sensitivity: =-84dBm at 0.1% BER.
SKU: EK327 Categories: , Tags: , , ,

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Original price was: 250,00 EGP.Current price is: 225,00 EGP.

Compare
6 People watching this product now!

Payment Methods:

Description

HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller.  It uses the UART protocol to make it easy to send and receive data wirelessly.

The HC-06 module is a slave only device.  This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules.  To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.

Applications:

  • Embedded Projects.
  • Industrial Applications.
  • Computer and Portable Devices.
  • GPS receiver.

Features:

  • Working current: matching for 30 mA, matching the communication for 8 mA.
  • Dormancy current: no dormancy.
  • Used for a GPS navigation system, water, and electricity gas meter reading system.
  • With the computer and Bluetooth adapter, PDA, seamless connection equipment.
  • Bluetooth module HC-08 Master and slave Two in one module.
  • Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
  • Potter default rate of 9600, the user can be set up.
  • Bluetooth protocol: Bluetooth Specification v2.0+EDR
  • Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
  • Security: Authentication and encryption.
  • Profiles: Bluetooth serial port.

Tutorials

Package Includes:

1 x HC-05 6pin Bluetooth Module with Button

🔌
Pin Connections
1 Table
Pin Connections Table 1
BoardSensor PinConnection
HC-05VCC/GND/TX/RX3.3-5V / GND / board RX pin / board TX pin (via divider)
📟
HC-05 Bluetooth Module with 6 Pins and Integrated Button
7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico
HC-05 Bluetooth Module with 6 Pins and Integrated Button - Arduino Uno
HC-05 Bluetooth Module with 6 Pins and Integrated Button - Arduino Nano
HC-05 Bluetooth Module with 6 Pins and Integrated Button - Arduino Mega
HC-05 Bluetooth Module with 6 Pins and Integrated Button - ESP32
HC-05 Bluetooth Module with 6 Pins and Integrated Button - ESP8266
HC-05 Bluetooth Module with 6 Pins and Integrated Button - STM32
HC-05 Bluetooth Module with 6 Pins and Integrated Button - Raspberry Pi Pico
📄 File: hc-05_bluetooth_module_with_6_pins_and_integrated_button_-_arduino_uno.inoArduino Uno
668 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=2, TX=3 on Arduino Uno (module TX -> board RX; module RX needs a voltage divider from 5V boards since the module is 3.3V logic)
6#include <SoftwareSerial.h>
7SoftwareSerial LINK_SERIAL(2, 3);
8
9void setup() {
10 Serial.begin(115200);
11 LINK_SERIAL.begin(38400); // 38400 is HC-05's default AT-mode/factory baud - many pre-paired modules run at 9600, check yours
12}
13
14void loop() {
15 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read()); // data from the paired Bluetooth device -> USB serial
16 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // USB serial -> Bluetooth device
17}
📄 File: hc-05_bluetooth_module_with_6_pins_and_integrated_button_-_arduino_nano.inoArduino Nano
669 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=2, TX=3 on Arduino Nano (module TX -> board RX; module RX needs a voltage divider from 5V boards since the module is 3.3V logic)
6#include <SoftwareSerial.h>
7SoftwareSerial LINK_SERIAL(2, 3);
8
9void setup() {
10 Serial.begin(115200);
11 LINK_SERIAL.begin(38400); // 38400 is HC-05's default AT-mode/factory baud - many pre-paired modules run at 9600, check yours
12}
13
14void loop() {
15 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read()); // data from the paired Bluetooth device -> USB serial
16 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // USB serial -> Bluetooth device
17}
📄 File: hc-05_bluetooth_module_with_6_pins_and_integrated_button_-_arduino_mega.inoArduino Mega
637 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=19, TX=18 on Arduino Mega (module TX -> board RX; module RX needs a voltage divider from 5V boards since the module is 3.3V logic)
6#define LINK_SERIAL Serial1
7
8void setup() {
9 Serial.begin(115200);
10 LINK_SERIAL.begin(38400); // 38400 is HC-05's default AT-mode/factory baud - many pre-paired modules run at 9600, check yours
11}
12
13void loop() {
14 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read()); // data from the paired Bluetooth device -> USB serial
15 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // USB serial -> Bluetooth device
16}
📄 File: hc-05_bluetooth_module_with_6_pins_and_integrated_button_-_esp32.inoESP32
630 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=16, TX=17 on ESP32 (module TX -> board RX; module RX needs a voltage divider from 5V boards since the module is 3.3V logic)
6#define LINK_SERIAL Serial1
7
8void setup() {
9 Serial.begin(115200);
10 LINK_SERIAL.begin(38400); // 38400 is HC-05's default AT-mode/factory baud - many pre-paired modules run at 9600, check yours
11}
12
13void loop() {
14 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read()); // data from the paired Bluetooth device -> USB serial
15 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // USB serial -> Bluetooth device
16}
📄 File: hc-05_bluetooth_module_with_6_pins_and_integrated_button_-_esp8266.inoESP8266
668 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=D7, TX=D8 on ESP8266 (module TX -> board RX; module RX needs a voltage divider from 5V boards since the module is 3.3V logic)
6#include <SoftwareSerial.h>
7SoftwareSerial LINK_SERIAL(D7, D8);
8
9void setup() {
10 Serial.begin(115200);
11 LINK_SERIAL.begin(38400); // 38400 is HC-05's default AT-mode/factory baud - many pre-paired modules run at 9600, check yours
12}
13
14void loop() {
15 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read()); // data from the paired Bluetooth device -> USB serial
16 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // USB serial -> Bluetooth device
17}
📄 File: hc-05_bluetooth_module_with_6_pins_and_integrated_button_-_stm32.inoSTM32
633 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=PA10, TX=PA9 on STM32 (module TX -> board RX; module RX needs a voltage divider from 5V boards since the module is 3.3V logic)
6#define LINK_SERIAL Serial1
7
8void setup() {
9 Serial.begin(115200);
10 LINK_SERIAL.begin(38400); // 38400 is HC-05's default AT-mode/factory baud - many pre-paired modules run at 9600, check yours
11}
12
13void loop() {
14 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read()); // data from the paired Bluetooth device -> USB serial
15 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // USB serial -> Bluetooth device
16}
📄 File: hc-05_bluetooth_module_with_6_pins_and_integrated_button_-_raspberry_pi_pico.inoRaspberry Pi Pico
640 characters
1//ekostra.com
2//electronics store in egypt
3//+201008896258
4
5// RX=1, TX=0 on Raspberry Pi Pico (module TX -> board RX; module RX needs a voltage divider from 5V boards since the module is 3.3V logic)
6#define LINK_SERIAL Serial1
7
8void setup() {
9 Serial.begin(115200);
10 LINK_SERIAL.begin(38400); // 38400 is HC-05's default AT-mode/factory baud - many pre-paired modules run at 9600, check yours
11}
12
13void loop() {
14 if (LINK_SERIAL.available()) Serial.write(LINK_SERIAL.read()); // data from the paired Bluetooth device -> USB serial
15 if (Serial.available()) LINK_SERIAL.write(Serial.read()); // USB serial -> Bluetooth device
16}
Classic Bluetooth (SPP) UART bridge module.
All copy right for ekostra.com

نظرة عامة ومواصفات المنتج — بالعربية

HC-05 Bluetooth Module with 6 Pins and Integrated Button متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Bluetooth and NRF Modules وIoT and Wireless، بسعر 225,00 EGP. كود المنتج لدينا: EK327. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

  • Input Supply Voltage V: 3.6 ~ 6
  • Input Current Ma: 50
  • Maximum Operating Range M: 10
  • Operating Frequency: 2.4GHz ISM band
  • Modulation: GFSK (Gaussian Frequency Shift Keying)
  • Emission Power: 4dBm, Class 2
  • Sensitivity: -84dBm at 0.1% BER
  • Operating Temperature %E2%84%83: -20 ~ +75

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Bluetooth and NRF Modules في إكوسترا.

Specification

Specification

WeightWeight5,0000 g
Dimensions43 × 16,5 × 7 cm
input-supply-voltage-v3.6 ~ 6
input-current-ma50
maximum-operating-range-m10
operating-frequency2.4GHz ISM band
modulationGFSK (Gaussian Frequency Shift Keying)
emission-power4dBm, Class 2
sensitivity-84dBm at 0.1% BER
operating-temperature-%e2%84%83-20 ~ +75
