FTDI FT232RL USB to TTL Converter Module TYPE-C USB
- FT232RL chipset – reliable USB-to-serial communication
- USB Type-C connector – reversible, modern design
- Supports 3.3V / 5V logic (selectable)
- Breakout pins: TX, RX, VCC, GND, CTS, DTR
- Plug-and-play on Windows, macOS, Linux
- Ideal for Arduino, ESP8266/ESP32, STM32
- Perfect for firmware flashing, serial debugging
Apple Shopping Event
150,00 EGP
Payment Methods:
Description

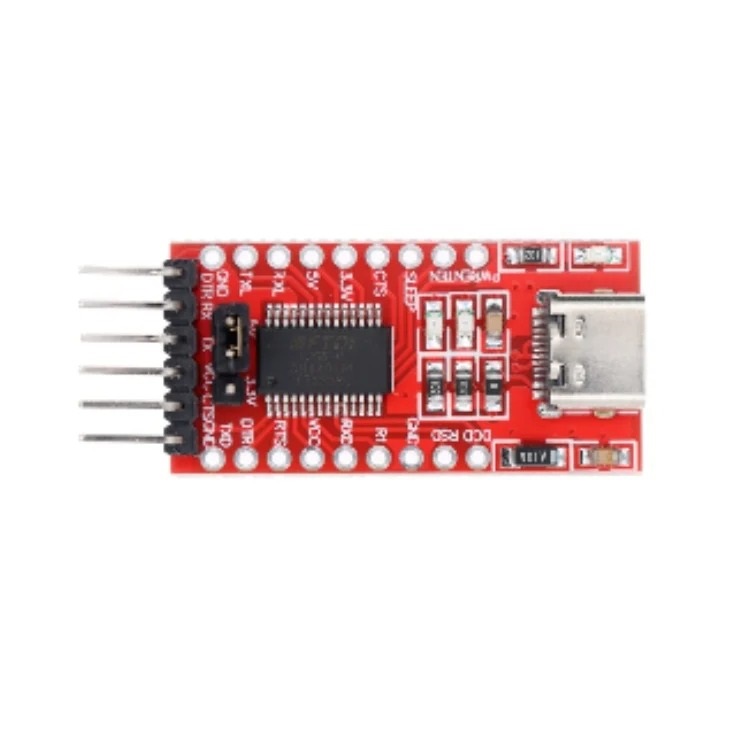

The FTDI FT232RL USB to TTL Converter Module (Type-C USB) is a compact and reliable serial communication interface that allows seamless data transfer between a computer and microcontroller or serial-enabled device. Built around the FT232RL chipset, it provides high-performance USB to UART (TTL) conversion with full support for modern operating systems.
Featuring a Type-C USB connector, this module ensures reversible plug orientation, durability, and future compatibility. It supports 3.3V and 5V logic levels, making it ideal for use with Arduino boards, ESP8266, ESP32, STM32, and other development platforms.
Key Features
-
Based on FTDI FT232RL chipset for reliable USB-to-serial communication
-
USB Type-C connector for modern connectivity and reversible plug
-
Supports both 3.3V and 5V logic levels (selectable via jumper or onboard switch)
-
Standard TX, RX, VCC, GND, CTS, DTR breakout pins
-
Compatible with Windows, macOS, Linux drivers (plug-and-play)
-
Ideal for programming microcontrollers, flashing firmware, debugging serial data
Specifications
| Parameter | Value |
|---|---|
| Chipset | FTDI FT232RL |
| USB Connector | USB Type-C |
| Logic Level Support | 3.3V / 5V (selectable) |
| Output Pins | TX, RX, VCC, GND, CTS, DTR |
| Driver Support | Windows, Linux, macOS |
| Baud Rate | Up to 3 Mbps |
| Board Dimensions | Compact, breadboard-friendly |
| Applications | UART communication, microcontroller programming, serial debugging |
Package Includes
-
1 × FTDI FT232RL USB to TTL Converter Module (Type-C USB)
نظرة عامة ومواصفات المنتج — بالعربية
FTDI FT232RL USB to TTL Converter Module TYPE-C USB متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Electronic Modules وUSB Interface Module، بسعر 150,00 EGP. كود المنتج لدينا: EK1737. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.
أهم المواصفات الفنية:
- الموديل: FT232RL
- واجهة الاتصال: USB to TTL Serial Converter
- Usb Type: USB Type-C
- Operating Voltage: 3.3V / 5V Selectable
- Logic Level: TTL
- Baud Rate: Up to 3 Mbps
- Data Format: 8N1 (8 Data bits, No parity, 1 Stop bit)
- Flow Control: None / Optional RTS/CTS
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Electronic Modules في إكوسترا.
Specification
Specification
| WeightWeight | 8 g |
|---|---|
| Dimensions | 3,3 × 1,8 × 0,7 cm |
| Model | FT232RL |
| Interface | USB to TTL Serial Converter |
| USB Type | USB Type-C |
| Operating Voltage | 3.3V / 5V Selectable |
| Logic Level | TTL |
| Baud Rate | Up to 3 Mbps |
| Data Format | 8N1 (8 Data bits, No parity, 1 Stop bit) |
| Flow Control | None / Optional RTS/CTS |
| Driver Support | Windows / Linux / Mac OS |
| Chipset | FT232RL |
| LED Indicators | Power (VCC) and TX/RX Data |
| Mounting Type | Module / Breadboard Compatible |
| Applications | Arduino Programming, Serial Communication, Microcontroller Debugging, DIY Electronics |
| Package Contents | 1× FTDI FT232RL USB to TTL Converter Module (Type-C) |
