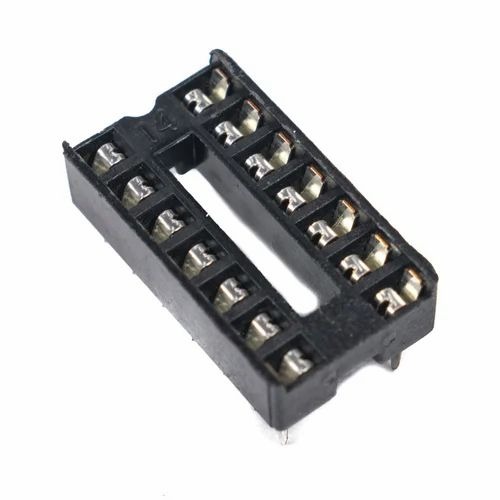

IC SOCKET Base 14 PIN DIP
IC Socket Base 14 Pin DIP
1. Pin Count: 14 Pins
2. Package Type: DIP-14
3. Pitch: 2.54mm
4. Row Spacing: 7.62mm
5. Mounting Type: Through-Hole
Apple Shopping Event
2,50 EGP
Payment Methods:
Description
This IC Socket is a 14-pin DIP (Dual In-Line Package) socket base, letting a 14-pin DIP IC be inserted and removed without soldering the chip directly to a board — useful for prototyping, chip replacement, and programmable IC applications.
It mounts via through-hole soldering at the standard 2.54mm (0.1″) pin pitch with 7.62mm (0.3″) row spacing, matching standard DIP-14 footprint dimensions. Contacts are typically phosphor bronze leaf-spring or turned-pin type, plated in tin or gold flash depending on the model.
Built with a PBT/PA66 nylon insulator body carrying a UL94V-0 flammability rating, the socket operates across -40°C to +105°C, suited to both hobbyist prototyping and more demanding production environments.
Features:
- 14-pin DIP-14 socket
- Standard 2.54mm pitch, 7.62mm row spacing
- Through-hole mounting
- Phosphor bronze contacts (leaf spring or turned pin)
- Tin or gold flash plating
- UL94V-0 flame-retardant insulator
- Operating temperature: -40°C to +105°C
نظرة عامة ومواصفات المنتج — بالعربية
IC SOCKET Base 14 PIN DIP متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم IC Base، بسعر 2,50 EGP. كود المنتج لدينا: EK1437. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.
أهم المواصفات الفنية:
- Product Type: IC Socket / DIP Socket
- Pin Count: 14 Pins
- Package Type: DIP-14
- طريقة التثبيت: Through-Hole
- Pitch: 2.54mm (0.1")
- Row Spacing: 7.62mm (0.3")
- Contact Type: Leaf Spring / Turned Pin
- Contact Material: Phosphor Bronze
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من IC Base في إكوسترا.
Specification
Specification
| WeightWeight | 10 g |
|---|---|
| Dimensions | 5 × 4 × 2 cm |
| Product Type | IC Socket / DIP Socket |
| Pin Count | 14 Pins |
| Package Type | DIP-14 |
| Mounting Type | Through-Hole |
| Pitch | 2.54mm (0.1″) |
| Row Spacing | 7.62mm (0.3″) |
| Contact Type | Leaf Spring, Turned Pin |
| Contact Material | Phosphor Bronze |
| Plating | Tin, Gold Flash |
| Insulator Material | PBT, PA66 (Nylon) |
| Operating Temperature | -40°C to +105°C |
| Flammability Rating | UL94V-0 |
| Color | Black |
