INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface

Name: INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface
SKU: EK1994
Price: 156.00 EGP
Availability: InStock

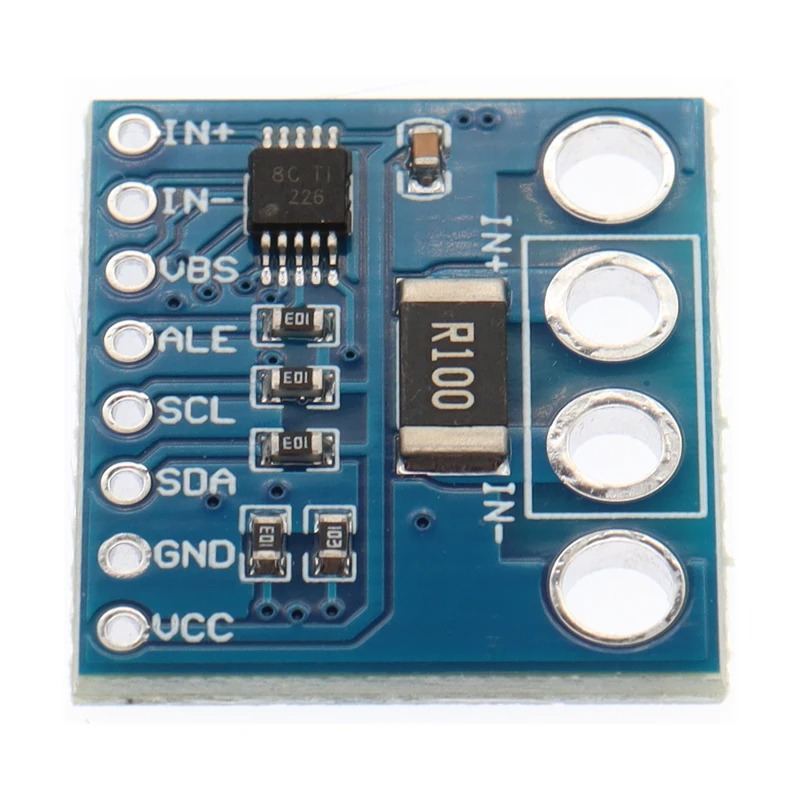

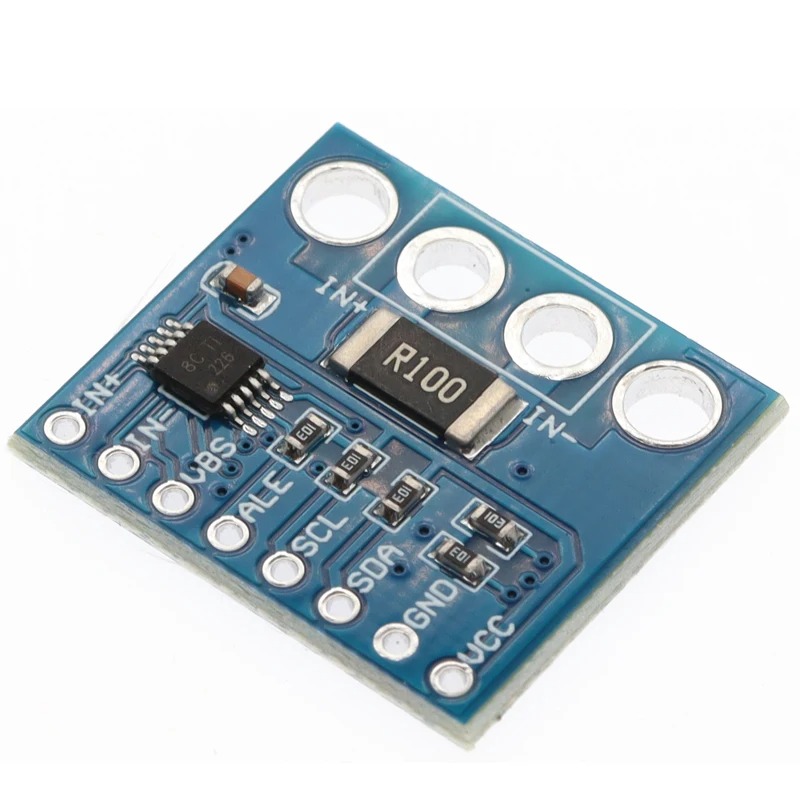

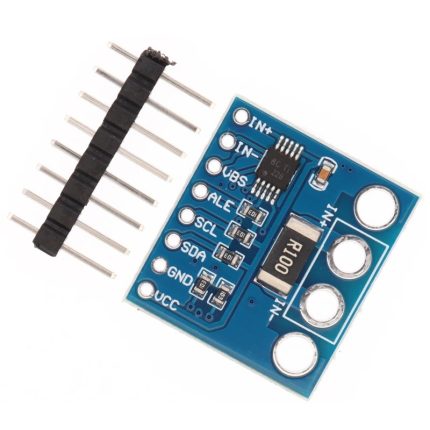

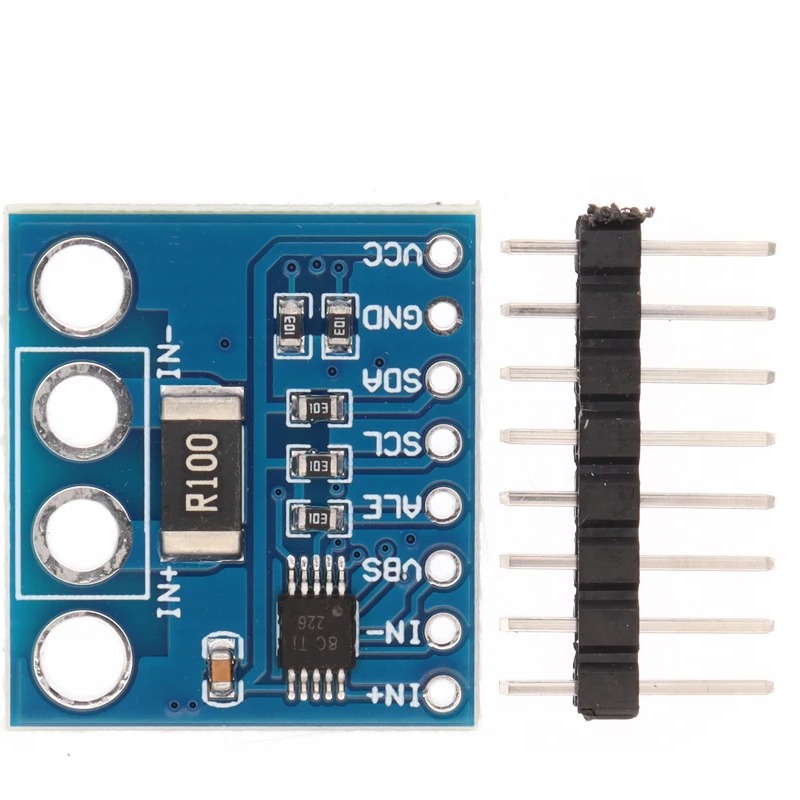

INA226 Bi-Directional Current/Power Monitoring Sensor Module (CJMCU-226)
1. Interface: I2C
2. Voltage Measurement Range: 0V–36V
3. Operating Voltage: 2.7V–5.5V
4. Resolution: 16-bit
5. Current Sensing: High-side or Low-side

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

156,00 EGP

Compare

9 People watching this product now!

Payment Methods:

Description

The INA226 Bi-Directional Current/Power Monitoring Sensor Module (CJMCU-226) is an I2C-interfaced sensor that measures bus voltage, current, and power draw in a circuit, supporting both high-side and low-side current sensing configurations.

It operates from 2.7V to 5.5V and measures bus voltages up to 36V, with 16-bit resolution for precise current and voltage readings. Because it’s bi-directional, it can measure current flow in either direction, useful for monitoring charge/discharge cycles in battery systems.

The module includes programmable alert thresholds for over-current, under-voltage, over-voltage, and power limits, allowing a connected microcontroller to react automatically when readings exceed set boundaries.

Features:

I2C interface for easy microcontroller integration
Bi-directional current sensing (high-side or low-side)
16-bit resolution for precise measurements
Bus voltage measurement range: 0V–36V
Operating voltage: 2.7V–5.5V
Programmable alerts for over-current, under/over-voltage, and power thresholds
Compatible with Arduino and other microcontrollers

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
INA226	VCC/GND/SDA/SCL	3.3-5V / GND / board SDA / board SCL

📟

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface - Arduino Uno

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface - Arduino Nano

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface - Arduino Mega

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface - ESP32

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface - ESP8266

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface - STM32

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface - Raspberry Pi Pico

📄 File: ina226_bi-directional_current/power_monitoring_sensor_module_for_arduino_(cjmcu-226)_i2c_interface_-_arduino_uno.inoArduino Uno

641 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Uno: A4=SDA, A5=SCL

6#include <Wire.h>

7#include <INA226.h>

9INA226 ina226(0x40);

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 ina226.begin();

15 ina226.setMaxCurrentShunt(1.0, 0.1); // adjust to your expected max current + shunt resistance

16}

18void loop() {

19 Serial.print("Bus: "); Serial.print(ina226.getBusVoltage()); Serial.print(" V ");

20 Serial.print("Current: "); Serial.print(ina226.getCurrent() * 1000); Serial.print(" mA ");

21 Serial.print("Power: "); Serial.print(ina226.getPower() * 1000); Serial.println(" mW");

23 delay(500);

24}

📄 File: ina226_bi-directional_current/power_monitoring_sensor_module_for_arduino_(cjmcu-226)_i2c_interface_-_arduino_nano.inoArduino Nano

642 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Nano: A4=SDA, A5=SCL

6#include <Wire.h>

7#include <INA226.h>

9INA226 ina226(0x40);

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 ina226.begin();

15 ina226.setMaxCurrentShunt(1.0, 0.1); // adjust to your expected max current + shunt resistance

16}

18void loop() {

19 Serial.print("Bus: "); Serial.print(ina226.getBusVoltage()); Serial.print(" V ");

20 Serial.print("Current: "); Serial.print(ina226.getCurrent() * 1000); Serial.print(" mA ");

21 Serial.print("Power: "); Serial.print(ina226.getPower() * 1000); Serial.println(" mW");

23 delay(500);

24}

📄 File: ina226_bi-directional_current/power_monitoring_sensor_module_for_arduino_(cjmcu-226)_i2c_interface_-_arduino_mega.inoArduino Mega

644 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Mega: D20=SDA, D21=SCL

6#include <Wire.h>

7#include <INA226.h>

9INA226 ina226(0x40);

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 ina226.begin();

15 ina226.setMaxCurrentShunt(1.0, 0.1); // adjust to your expected max current + shunt resistance

16}

18void loop() {

19 Serial.print("Bus: "); Serial.print(ina226.getBusVoltage()); Serial.print(" V ");

20 Serial.print("Current: "); Serial.print(ina226.getCurrent() * 1000); Serial.print(" mA ");

21 Serial.print("Power: "); Serial.print(ina226.getPower() * 1000); Serial.println(" mW");

23 delay(500);

24}

📄 File: ina226_bi-directional_current/power_monitoring_sensor_module_for_arduino_(cjmcu-226)_i2c_interface_-_esp32.inoESP32

643 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for ESP32: GPIO21=SDA, GPIO22=SCL

6#include <Wire.h>

7#include <INA226.h>

9INA226 ina226(0x40);

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 ina226.begin();

15 ina226.setMaxCurrentShunt(1.0, 0.1); // adjust to your expected max current + shunt resistance

16}

18void loop() {

19 Serial.print("Bus: "); Serial.print(ina226.getBusVoltage()); Serial.print(" V ");

20 Serial.print("Current: "); Serial.print(ina226.getCurrent() * 1000); Serial.print(" mA ");

21 Serial.print("Power: "); Serial.print(ina226.getPower() * 1000); Serial.println(" mW");

23 delay(500);

24}

📄 File: ina226_bi-directional_current/power_monitoring_sensor_module_for_arduino_(cjmcu-226)_i2c_interface_-_esp8266.inoESP8266

637 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for ESP8266: D2=SDA, D1=SCL

6#include <Wire.h>

7#include <INA226.h>

9INA226 ina226(0x40);

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 ina226.begin();

15 ina226.setMaxCurrentShunt(1.0, 0.1); // adjust to your expected max current + shunt resistance

16}

18void loop() {

19 Serial.print("Bus: "); Serial.print(ina226.getBusVoltage()); Serial.print(" V ");

20 Serial.print("Current: "); Serial.print(ina226.getCurrent() * 1000); Serial.print(" mA ");

21 Serial.print("Power: "); Serial.print(ina226.getPower() * 1000); Serial.println(" mW");

23 delay(500);

24}

📄 File: ina226_bi-directional_current/power_monitoring_sensor_module_for_arduino_(cjmcu-226)_i2c_interface_-_stm32.inoSTM32

637 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for STM32: PB7=SDA, PB6=SCL

6#include <Wire.h>

7#include <INA226.h>

9INA226 ina226(0x40);

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 ina226.begin();

15 ina226.setMaxCurrentShunt(1.0, 0.1); // adjust to your expected max current + shunt resistance

16}

18void loop() {

19 Serial.print("Bus: "); Serial.print(ina226.getBusVoltage()); Serial.print(" V ");

20 Serial.print("Current: "); Serial.print(ina226.getCurrent() * 1000); Serial.print(" mA ");

21 Serial.print("Power: "); Serial.print(ina226.getPower() * 1000); Serial.println(" mW");

23 delay(500);

24}

📄 File: ina226_bi-directional_current/power_monitoring_sensor_module_for_arduino_(cjmcu-226)_i2c_interface_-_raspberry_pi_pico.inoRaspberry Pi Pico

653 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Raspberry Pi Pico: GPIO4=SDA, GPIO5=SCL

6#include <Wire.h>

7#include <INA226.h>

9INA226 ina226(0x40);

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 ina226.begin();

15 ina226.setMaxCurrentShunt(1.0, 0.1); // adjust to your expected max current + shunt resistance

16}

18void loop() {

19 Serial.print("Bus: "); Serial.print(ina226.getBusVoltage()); Serial.print(" V ");

20 Serial.print("Current: "); Serial.print(ina226.getCurrent() * 1000); Serial.print(" mA ");

21 Serial.print("Power: "); Serial.print(ina226.getPower() * 1000); Serial.println(" mW");

23 delay(500);

24}

Project Notes:

I2C current/power/voltage monitor with more precision than INA219.

Required Libraries:

INA226 (RobTillaart)GitHub

نظرة عامة ومواصفات المنتج — بالعربية

INA226 Bi-Directional Current/Power Monitoring Sensor Module For Arduino (CJMCU-226) I2C Interface متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Current and Voltage، بسعر 156,00 EGP. كود المنتج لدينا: EK1994. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Module Type: Bi-directional Current/Power Monitor
واجهة الاتصال: I2C
Operating Voltage: 2.7V – 5.5V
Voltage Measurement Range: 0V to 36V (Bus Voltage)
Current Sensing: High-side or Low-side monitoring
Accuracy: 16-bit resolution
Programmable Alerts: Over-current / Under-voltage / Over-voltage / Power thresholds
الوزن: 1 g

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Current and Voltage في إكوسترا.

Specification

WeightWeight	10 g
Dimensions	5 × 4 × 2 cm
Module Type	Bi-directional Current/Power Monitor
Interface	I2C
Operating Voltage	2.7V – 5.5V
Voltage Measurement Range	0V to 36V (Bus Voltage)
Current Sensing	High-side or Low-side monitoring
Accuracy	16-bit resolution
Programmable Alerts	Over-current, Under-voltage, Over-voltage, Power thresholds
