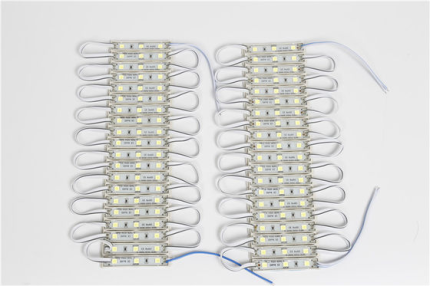

LED Module 5054 12V IP65 Red

Name: LED Module 5054 12V IP65 Red
SKU: EK2035
Price: 3.50 EGP
Availability: InStock

LED Module 5054 12V IP65 Red
1. LED Chip: SMD 5054, 3 LEDs/module
2. Color: Red
3. Operating Voltage: 12V DC
4. Protection Rating: IP65
5. Beam Angle: 120°
6. Lifespan: ≥50,000 Hours

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

3,50 EGP

Compare

15 People watching this product now!

Payment Methods:

Description

This LED module uses a single SMD 5054 high-brightness LED chip package containing 3 LEDs per module, emitting red light through a 120° beam angle. It runs on 12V DC and draws between 0.72W and 1.0W per module.

The module is housed in an injection-molded PVC casing with a clear epoxy cover, giving it an IP65 protection rating suitable for outdoor and weather-exposed installations. Mounting is handled via pre-applied 3M adhesive tape, backed up by a mounting screw hole for more secure fixing.

Rated for continuous operation between -20°C and 60°C with a lifespan of 50,000+ hours, these modules are supplied 20 per string, making them suited to channel-letter signage and storefront lighting runs.

Features:

SMD 5054 high-brightness LED chip, 3 LEDs per module
Red emitting color
120° beam angle for wide light spread
IP65 waterproof/weather-resistant rating
Power draw: 0.72W–1.0W per module at 12V DC
Operating temperature: -20°C to 60°C
Lifespan: 50,000+ hours
Supplied 20 modules per string

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Module	to MOSFET switch	+12V direct; GND through a MOSFET gated by a board PWM pin

📟

LED Module 5054 12V IP65

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

LED Module 5054 12V IP65 - Arduino Uno

LED Module 5054 12V IP65 - Arduino Nano

LED Module 5054 12V IP65 - Arduino Mega

LED Module 5054 12V IP65 - ESP32

LED Module 5054 12V IP65 - ESP8266

LED Module 5054 12V IP65 - STM32

LED Module 5054 12V IP65 - Raspberry Pi Pico

📄 File: led_module_5054_12v_ip65_-_arduino_uno.inoArduino Uno

366 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Fixed-color 12V LED module - switch/dim through a logic-level MOSFET, gated by PWM pin 9 on Arduino Uno.

6#define MOSFET_GATE_PIN 9

8void setup() {

9 pinMode(MOSFET_GATE_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(MOSFET_GATE_PIN, 200);

14 delay(2000);

15 analogWrite(MOSFET_GATE_PIN, 0);

16 delay(1000);

17}

📄 File: led_module_5054_12v_ip65_-_arduino_nano.inoArduino Nano

367 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Fixed-color 12V LED module - switch/dim through a logic-level MOSFET, gated by PWM pin 9 on Arduino Nano.

6#define MOSFET_GATE_PIN 9

8void setup() {

9 pinMode(MOSFET_GATE_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(MOSFET_GATE_PIN, 200);

14 delay(2000);

15 analogWrite(MOSFET_GATE_PIN, 0);

16 delay(1000);

17}

📄 File: led_module_5054_12v_ip65_-_arduino_mega.inoArduino Mega

367 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Fixed-color 12V LED module - switch/dim through a logic-level MOSFET, gated by PWM pin 9 on Arduino Mega.

6#define MOSFET_GATE_PIN 9

8void setup() {

9 pinMode(MOSFET_GATE_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(MOSFET_GATE_PIN, 200);

14 delay(2000);

15 analogWrite(MOSFET_GATE_PIN, 0);

16 delay(1000);

17}

📄 File: led_module_5054_12v_ip65_-_esp32.inoESP32

362 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Fixed-color 12V LED module - switch/dim through a logic-level MOSFET, gated by PWM pin 25 on ESP32.

6#define MOSFET_GATE_PIN 25

8void setup() {

9 pinMode(MOSFET_GATE_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(MOSFET_GATE_PIN, 200);

14 delay(2000);

15 analogWrite(MOSFET_GATE_PIN, 0);

16 delay(1000);

17}

📄 File: led_module_5054_12v_ip65_-_esp8266.inoESP8266

364 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Fixed-color 12V LED module - switch/dim through a logic-level MOSFET, gated by PWM pin D1 on ESP8266.

6#define MOSFET_GATE_PIN D1

8void setup() {

9 pinMode(MOSFET_GATE_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(MOSFET_GATE_PIN, 200);

14 delay(2000);

15 analogWrite(MOSFET_GATE_PIN, 0);

16 delay(1000);

17}

📄 File: led_module_5054_12v_ip65_-_stm32.inoSTM32

364 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Fixed-color 12V LED module - switch/dim through a logic-level MOSFET, gated by PWM pin PA8 on STM32.

6#define MOSFET_GATE_PIN PA8

8void setup() {

9 pinMode(MOSFET_GATE_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(MOSFET_GATE_PIN, 200);

14 delay(2000);

15 analogWrite(MOSFET_GATE_PIN, 0);

16 delay(1000);

17}

📄 File: led_module_5054_12v_ip65_-_raspberry_pi_pico.inoRaspberry Pi Pico

374 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Fixed-color 12V LED module - switch/dim through a logic-level MOSFET, gated by PWM pin 15 on Raspberry Pi Pico.

6#define MOSFET_GATE_PIN 15

8void setup() {

9 pinMode(MOSFET_GATE_PIN, OUTPUT);

10}

12void loop() {

13 analogWrite(MOSFET_GATE_PIN, 200);

14 delay(2000);

15 analogWrite(MOSFET_GATE_PIN, 0);

16 delay(1000);

17}

Project Notes:

Fixed-color 12V LED module.

نظرة عامة ومواصفات المنتج — بالعربية

LED Module 5054 12V IP65 Red متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم LED Module، بسعر 3,50 EGP. كود المنتج لدينا: EK2035. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Led Chip Type: SMD 5054 (High Brightness)
Leds Per Module: 3
Emitting Color: Red
Operating Voltage: 12V DC
Power Consumption: 0.72W ~ 1.0W per module
Protection Rating: IP65
Beam Angle: 120°
Casing Material: Injection-Molded PVC / Clear Epoxy Cover

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من LED Module في إكوسترا.

Specification

WeightWeight	10 g
Dimensions	5 × 4 × 2 cm
LED Chip Type	SMD 5054 (High Brightness)
LEDs Per Module	3
Emitting Color	Red
Operating Voltage	12V DC
Power Consumption	0.72W ~ 1.0W per module
Protection Rating	IP65
Beam Angle	120°
Casing Material	Injection-Molded PVC, Clear Epoxy Cover
Mounting Method	3M Adhesive Tape, Mounting Screw Hole
Operating Temperature	-20°C ~ 60°C
Lifespan	≥50,000 Hours
Standard Packaging	20 Modules per string
