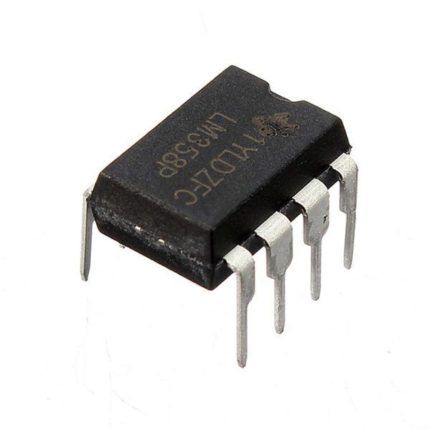

LM358P PDIP-8 High Gain Operational Amplifier
Product Highlights
- Dual Operational Amplifier: Two independent, high-gain op-amps in a single 8-pin package.
- Single Supply Range: Operates reliably from a wide range of 3V to 32V (or ±1.5V to ±16V).
- Low Power Consumption: Minimal drain current makes it ideal for battery-operated portable devices.
- Internal Frequency Compensation: Built-in stability features reduce the need for external components.
- Large DC Voltage Gain: High gain of up to 100dB for precise signal amplification.
- Industry Standard PDIP-8: Easy-to-solder through-hole package, perfect for breadboards and DIY PCBs.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
10,00 EGP
10
People watching this product now!
Payment Methods:
Description
LM358P PDIP-8 High Gain Operational Amplifier
نظرة عامة ومواصفات المنتج — بالعربية
LM358P PDIP-8 High Gain Operational Amplifier متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Operational Amplifier ICs، بسعر 10,00 EGP. كود المنتج لدينا: EK1416. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Type: Operational Amplifier (Op-Amp)
- الموديل: LM358P
- Amplifier Type: General Purpose • High Gain • Dual Op-Amp
- Number Of Channels: 2 (Dual)
- Package: PDIP-8 (Through-Hole)
- Pin Count: 8
- Supply Voltage (Single): 3 V to 32 V
- Supply Voltage (Dual): ±1.5 V to ±16 V
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Operational Amplifier ICs في إكوسترا.
Specification
Specification
| WeightWeight | 10 g |
|---|---|
| Dimensions | 5 × 4 × 2 cm |
| Product Type | Operational Amplifier (Op-Amp) |
| Model | LM358P |
| Amplifier Type | General Purpose • High Gain • Dual Op-Amp |
| Number of Channels | 2 (Dual) |
| Package | PDIP-8 (Through-Hole) |
| Pin Count | 8 |
| Supply Voltage (Single) | 3 V to 32 V |
| Supply Voltage (Dual) | ±1.5 V to ±16 V |
| Input Offset Voltage | 2 mV (typical) • 7 mV (max typical) |
| Input Bias Current | 20 nA (typical) |
| Gain Bandwidth Product | 1 MHz (typical) |
| Slew Rate | 0.3 V/µs (typical) |
| Common-Mode Input Range | Includes ground (typical) |
| Output Swing | Close to ground (not rail-to-rail high side) |
| Operating Temperature | 0°C to +70°C (LM358P typical grade) |
| Applications | Signal conditioning, sensor amplification, active filters, comparators (basic) |
