MAX30100 Black Heart Rate

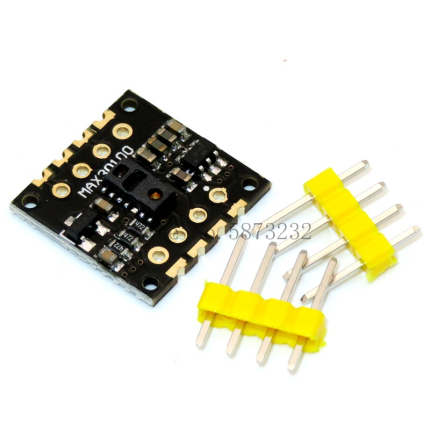

💓 MAX30100 heart-rate & pulse oximeter sensor module (Black)
🩸 Measures heart rate and SpO2 (blood oxygen) signals
🔴🔵 Integrated red + IR LEDs with photodetector
🚌 I2C interface—easy connection to Arduino/ESP32/STM32
⚡ Low power—great for wearable and portable devices
🧩 Ideal for fitness tracking and basic health-monitoring projects
🛠️ Compact breakout board for quick prototyping
✅ Common module for DIY biomedical and IoT applications

SKU: EK1624 Categories: Biometric/ECG/EMG Sensor, Sensors Tags: Biometric/ECG/EMG Sensor, Sensors

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

150,00 EGP

Compare

15 People watching this product now!

Payment Methods:

Description

The MAX30100 Black Heart Rate Sensor is a highly integrated and compact module designed for measuring heart rate and oxygen saturation (SpO2). Based on the MAX30100 IC from Maxim Integrated, this sensor provides accurate and reliable readings for a wide range of health-related applications, including wearables, fitness trackers, medical monitoring devices, and other health-tracking systems. The sensor uses optical photoplethysmography (PPG) to detect changes in blood volume and provides real-time heart rate and SpO2 measurements. Its small form factor and low power consumption make it perfect for portable and battery-powered devices.

Key Features:

Heart Rate Measurement: Uses optical sensors to detect changes in blood volume, providing heart rate readings.
SpO2 Measurement: Also measures oxygen saturation in the blood (SpO2), a critical parameter for health monitoring.
Integrated LED Lights: Features red and IR (infrared) LEDs, which are essential for taking accurate measurements of heart rate and blood oxygen levels.
Low Power Consumption: Designed for low energy consumption, making it suitable for battery-powered devices.
Small Form Factor: The compact design allows it to be used in wearable devices and small electronics applications.
I2C Interface: Uses an I2C interface, making it easy to integrate with various microcontrollers like Arduino, Raspberry Pi, and others.
Adjustable Sensitivity: The module allows you to adjust the sensitivity for different skin tones and ambient lighting conditions.
Easy to Use: Ready-to-use module with a breakout board, making it simple for developers to integrate into projects.

Specifications:

Heart Rate Measurement Range: Typically 30 BPM to 240 BPM (beats per minute).
SpO2 Measurement Range: Typically 0% to 100% oxygen saturation.
Power Supply: Typically 1.8V to 3.3V (depending on the specific model and application).
Interface: I2C communication protocol.
LEDs: Integrated red LED (660 nm) and IR LED (940 nm) for optical measurement.
Operating Temperature Range: Typically -40°C to +85°C.
Module Size: Compact size of ~20mm x 12mm for easy integration into small devices.
Power Consumption: Low current consumption (typically 0.5mA during measurement).

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
MAX30100	VCC/GND/SDA/SCL	3.3V / GND / board SDA / board SCL

📟

MAX30100 Black Heart Rate (2)

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

MAX30100 Black Heart Rate (2) - Arduino Uno

MAX30100 Black Heart Rate (2) - Arduino Nano

MAX30100 Black Heart Rate (2) - Arduino Mega

MAX30100 Black Heart Rate (2) - ESP32

MAX30100 Black Heart Rate (2) - ESP8266

MAX30100 Black Heart Rate (2) - STM32

MAX30100 Black Heart Rate (2) - Raspberry Pi Pico

📄 File: max30100_black_heart_rate_(2)_-_arduino_uno.inoArduino Uno

915 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Uno: A4=SDA, A5=SCL

6#include <Wire.h>

7#include "MAX30105.h" // SparkFun library - also covers MAX30100/30102 register-compatible reads

9MAX30105 particleSensor;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 if (!particleSensor.begin(Wire, I2C_SPEED_STANDARD)) {

15 Serial.println("MAX3010x not found - check wiring!");

16 while (1) delay(10);

17 }

18 particleSensor.setup(); // default sensor settings (LED brightness, sample rate...)

19}

21void loop() {

22 long irValue = particleSensor.getIR();

24 if (irValue < 50000) {

25 Serial.println("No finger detected");

26 } else {

27 Serial.print("IR: "); Serial.print(irValue);

28 Serial.print(" Red: "); Serial.println(particleSensor.getRed());

29 // Real BPM/SpO2 needs the library's beat-detection / SpO2 algorithm on top of these raw readings.

30 }

32 delay(20);

33}

📄 File: max30100_black_heart_rate_(2)_-_arduino_nano.inoArduino Nano

916 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Nano: A4=SDA, A5=SCL

6#include <Wire.h>

7#include "MAX30105.h" // SparkFun library - also covers MAX30100/30102 register-compatible reads

9MAX30105 particleSensor;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 if (!particleSensor.begin(Wire, I2C_SPEED_STANDARD)) {

15 Serial.println("MAX3010x not found - check wiring!");

16 while (1) delay(10);

17 }

18 particleSensor.setup(); // default sensor settings (LED brightness, sample rate...)

19}

21void loop() {

22 long irValue = particleSensor.getIR();

24 if (irValue < 50000) {

25 Serial.println("No finger detected");

26 } else {

27 Serial.print("IR: "); Serial.print(irValue);

28 Serial.print(" Red: "); Serial.println(particleSensor.getRed());

29 // Real BPM/SpO2 needs the library's beat-detection / SpO2 algorithm on top of these raw readings.

30 }

32 delay(20);

33}

📄 File: max30100_black_heart_rate_(2)_-_arduino_mega.inoArduino Mega

918 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Arduino Mega: D20=SDA, D21=SCL

6#include <Wire.h>

7#include "MAX30105.h" // SparkFun library - also covers MAX30100/30102 register-compatible reads

9MAX30105 particleSensor;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 if (!particleSensor.begin(Wire, I2C_SPEED_STANDARD)) {

15 Serial.println("MAX3010x not found - check wiring!");

16 while (1) delay(10);

17 }

18 particleSensor.setup(); // default sensor settings (LED brightness, sample rate...)

19}

21void loop() {

22 long irValue = particleSensor.getIR();

24 if (irValue < 50000) {

25 Serial.println("No finger detected");

26 } else {

27 Serial.print("IR: "); Serial.print(irValue);

28 Serial.print(" Red: "); Serial.println(particleSensor.getRed());

29 // Real BPM/SpO2 needs the library's beat-detection / SpO2 algorithm on top of these raw readings.

30 }

32 delay(20);

33}

📄 File: max30100_black_heart_rate_(2)_-_esp32.inoESP32

917 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for ESP32: GPIO21=SDA, GPIO22=SCL

6#include <Wire.h>

7#include "MAX30105.h" // SparkFun library - also covers MAX30100/30102 register-compatible reads

9MAX30105 particleSensor;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 if (!particleSensor.begin(Wire, I2C_SPEED_STANDARD)) {

15 Serial.println("MAX3010x not found - check wiring!");

16 while (1) delay(10);

17 }

18 particleSensor.setup(); // default sensor settings (LED brightness, sample rate...)

19}

21void loop() {

22 long irValue = particleSensor.getIR();

24 if (irValue < 50000) {

25 Serial.println("No finger detected");

26 } else {

27 Serial.print("IR: "); Serial.print(irValue);

28 Serial.print(" Red: "); Serial.println(particleSensor.getRed());

29 // Real BPM/SpO2 needs the library's beat-detection / SpO2 algorithm on top of these raw readings.

30 }

32 delay(20);

33}

📄 File: max30100_black_heart_rate_(2)_-_esp8266.inoESP8266

911 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for ESP8266: D2=SDA, D1=SCL

6#include <Wire.h>

7#include "MAX30105.h" // SparkFun library - also covers MAX30100/30102 register-compatible reads

9MAX30105 particleSensor;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 if (!particleSensor.begin(Wire, I2C_SPEED_STANDARD)) {

15 Serial.println("MAX3010x not found - check wiring!");

16 while (1) delay(10);

17 }

18 particleSensor.setup(); // default sensor settings (LED brightness, sample rate...)

19}

21void loop() {

22 long irValue = particleSensor.getIR();

24 if (irValue < 50000) {

25 Serial.println("No finger detected");

26 } else {

27 Serial.print("IR: "); Serial.print(irValue);

28 Serial.print(" Red: "); Serial.println(particleSensor.getRed());

29 // Real BPM/SpO2 needs the library's beat-detection / SpO2 algorithm on top of these raw readings.

30 }

32 delay(20);

33}

📄 File: max30100_black_heart_rate_(2)_-_stm32.inoSTM32

911 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for STM32: PB7=SDA, PB6=SCL

6#include <Wire.h>

7#include "MAX30105.h" // SparkFun library - also covers MAX30100/30102 register-compatible reads

9MAX30105 particleSensor;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 if (!particleSensor.begin(Wire, I2C_SPEED_STANDARD)) {

15 Serial.println("MAX3010x not found - check wiring!");

16 while (1) delay(10);

17 }

18 particleSensor.setup(); // default sensor settings (LED brightness, sample rate...)

19}

21void loop() {

22 long irValue = particleSensor.getIR();

24 if (irValue < 50000) {

25 Serial.println("No finger detected");

26 } else {

27 Serial.print("IR: "); Serial.print(irValue);

28 Serial.print(" Red: "); Serial.println(particleSensor.getRed());

29 // Real BPM/SpO2 needs the library's beat-detection / SpO2 algorithm on top of these raw readings.

30 }

32 delay(20);

33}

📄 File: max30100_black_heart_rate_(2)_-_raspberry_pi_pico.inoRaspberry Pi Pico

927 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// I2C wiring for Raspberry Pi Pico: GPIO4=SDA, GPIO5=SCL

6#include <Wire.h>

7#include "MAX30105.h" // SparkFun library - also covers MAX30100/30102 register-compatible reads

9MAX30105 particleSensor;

11void setup() {

12 Serial.begin(115200);

13 Wire.begin();

14 if (!particleSensor.begin(Wire, I2C_SPEED_STANDARD)) {

15 Serial.println("MAX3010x not found - check wiring!");

16 while (1) delay(10);

17 }

18 particleSensor.setup(); // default sensor settings (LED brightness, sample rate...)

19}

21void loop() {

22 long irValue = particleSensor.getIR();

24 if (irValue < 50000) {

25 Serial.println("No finger detected");

26 } else {

27 Serial.print("IR: "); Serial.print(irValue);

28 Serial.print(" Red: "); Serial.println(particleSensor.getRed());

29 // Real BPM/SpO2 needs the library's beat-detection / SpO2 algorithm on top of these raw readings.

30 }

32 delay(20);

33}

Project Notes:

I2C optical heart-rate/SpO2 sensor.

Required Libraries:

SparkFun MAX3010xGitHub

نظرة عامة ومواصفات المنتج — بالعربية

MAX30100 Black Heart Rate متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Biometric/ECG/EMG Sensor وSensors، بسعر 150,00 EGP. كود المنتج لدينا: EK1624. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

Product Name: MAX30100 – Black Heart Rate Sensor
Type: Optical Heart Rate and Pulse Oximeter Sensor
الموديل: MAX30100
Sensing Method: Reflective Optical Sensor (IR + Red LEDs)
Operating Voltage: 1.8–3.3 V DC
Communication Interface: I²C
Sampling Rate: 50–100 Hz (typical)
Measurement: Heart Rate, Blood Oxygen Saturation (SpO₂)

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Biometric/ECG/EMG Sensor في إكوسترا.

Specification

WeightWeight	6 g
Dimensions	1,5 × 2 × 0,5 cm
Product Name	MAX30100 – Black Heart Rate Sensor
Type	Optical Heart Rate and Pulse Oximeter Sensor
Model	MAX30100
Sensing Method	Reflective Optical Sensor (IR + Red LEDs)
Operating Voltage	1.8–3.3 V DC
Communication Interface	I²C
Sampling Rate	50–100 Hz (typical)
Measurement	Heart Rate, Blood Oxygen Saturation (SpO₂)
Operating Temperature	-40°C to +85°C
Package Type	Module with Sensor and PCB
Color	Black
Applications	Heart Rate Monitoring, Fitness Projects, Arduino / Raspberry Pi Projects, Wearable Health Devices
Package Contents	1× MAX30100 Black Heart Rate Sensor Module
