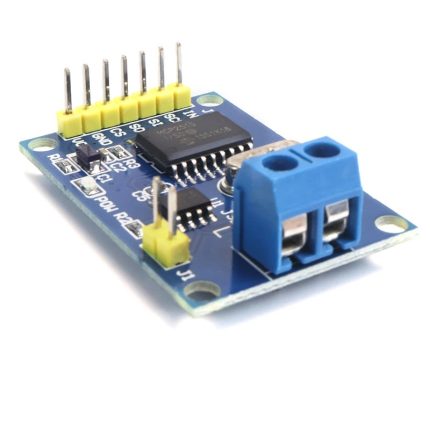

MCP2515 CAN Bus Module with TJA1050 Receiver – SPI Interface for Arduino, ESP32 & Microcontrollers
- 🚗 MCP2515 CAN bus controller module with TJA1050 transceiver
- 🚌 SPI interface—easy connection to Arduino, ESP32, STM32
- ⚡ Supports standard CAN 2.0A/B communication
- 🔌 Provides CANH/CANL terminals for bus wiring
- 🧩 Ideal for automotive CAN projects and industrial networks
- 🛡️ Reliable differential signaling for long cable runs
- 🛠️ Works with common CAN libraries for quick setup
- ✅ Perfect for vehicle diagnostics, sensors, and automation
Apple Shopping Event
180,00 EGP
Payment Methods:
Description
The MCP2515 CAN Bus Module with TJA1050 provides a simple solution for adding CAN Bus communication to your microcontroller projects. The MCP2515 handles the CAN protocol, while the TJA1050 transceiver ensures reliable signal transmission and reception on the CAN network.
Ideal for automotive diagnostics, robotics, industrial automation, and IoT applications, this module allows your Arduino, ESP32, or STM32 to communicate with other CAN-enabled devices or sensors.
The module uses an SPI interface for fast and easy integration, and it supports standard and extended CAN frames at speeds up to 1 Mbps.
⚙️ Features
-
🚗 MCP2515 CAN controller with SPI interface
-
🔄 TJA1050 CAN transceiver for reliable communication
-
📡 Supports CAN 2.0A (standard) and CAN 2.0B (extended) frames
-
⚡ High-speed CAN communication up to 1 Mbps
-
🧩 Compatible with Arduino, ESP32, STM32, and other microcontrollers
-
💡 Compact module with ready-to-use pins for easy integration
-
🏭 Ideal for automotive, industrial, and robotics projects
📊 Specifications
| Parameter | Description |
|---|---|
| Controller IC | MCP2515 |
| Transceiver IC | TJA1050 |
| Interface | SPI |
| CAN Version | CAN 2.0A / 2.0B |
| Communication Speed | Up to 1 Mbps |
| Operating Voltage | 5V |
| Logic Voltage | 3.3V / 5V compatible |
| Current Consumption | ~35 mA (typical) |
| Dimensions | Approx. 45mm × 30mm × 15mm |
نظرة عامة ومواصفات المنتج — بالعربية
MCP2515 CAN Bus Module with TJA1050 Receiver – SPI Interface for Arduino, ESP32 & Microcontrollers متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Development Boards، بسعر 180,00 EGP. كود المنتج لدينا: EK1853. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Module Type: CAN Bus Controller Module
- Controller: MCP2515
- Transceiver: TJA1050
- واجهة الاتصال: SPI (Serial Peripheral Interface)
- Operating Voltage: 5V DC
- Communication Speed: Up to 1 Mbps
- Compatible Microcontrollers: Arduino, ESP32, Raspberry Pi, and others
- الخامة: PCB with electronic components
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Development Boards في إكوسترا.
Specification
Specification
| WeightWeight | 10 g |
|---|---|
| Dimensions | 5,5 × 2,8 × 1,2 cm |
| Module Type | CAN Bus Controller Module |
| Controller | MCP2515 |
| Transceiver | TJA1050 |
| Interface | SPI (Serial Peripheral Interface) |
| Operating Voltage | 5V DC |
| Communication Speed | Up to 1 Mbps |
| Compatible Microcontrollers | Arduino, ESP32, Raspberry Pi, and others |
| Material | PCB with electronic components |
| Usage | Automotive communication, industrial automation, robotics, and CAN Bus projects |
