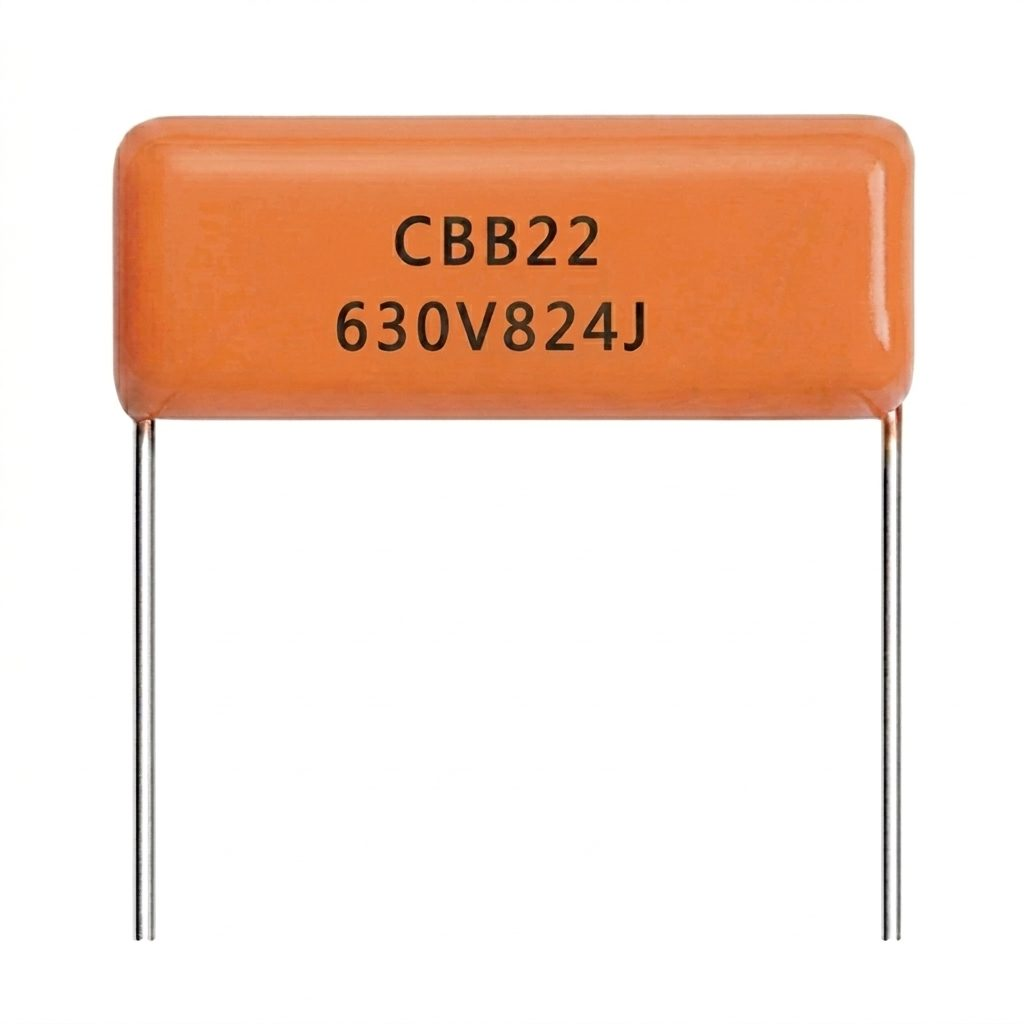

Polyester Capacitor 820nF 630V Pitch=28mm

This Polyester Capacitor is a metallized polypropylene film capacitor (CBB22 type) with a capacitance of 820nF (0.82µF), marked with the code 824, and rated for 630V DC.

The polypropylene film dielectric gives it good stability and low losses at high frequencies, making it well suited to demanding applications like switching power supplies and high-frequency pulse circuits. Tolerance is ±5% (J grade), and it’s built as a through-hole radial component with a 28mm lead pitch.

Rated for operation across -40°C to 85°C, this capacitor also suits motor snubber circuits, audio crossovers, and general noise suppression tasks where a robust, high-voltage film capacitor is needed.

Features:

1. Metallized polypropylene film dielectric (CBB22)
2. Capacitance: 820nF (0.82µF), code 824
3. Voltage rating: 630V DC
4. Tolerance: ±5% (J)
5. Lead pitch: 28mm, through-hole radial mounting
6. Wide operating temperature: -40°C to 85°C
7. Suited to SMPS, pulse circuits, and snubber applications
