Power Supply 24V 10A
Power Supply 24V 10A
1. Power: 240W
2. Output Voltage: 24V DC
3. Output Current: 10A (Max)
4. Input Voltage: 110V/220V AC (Selectable)
5. Cooling: Active (Built-in Fan)
6. Certifications: CE | RoHS
Apple Shopping Event
1,30 EGP
Payment Methods:
Description

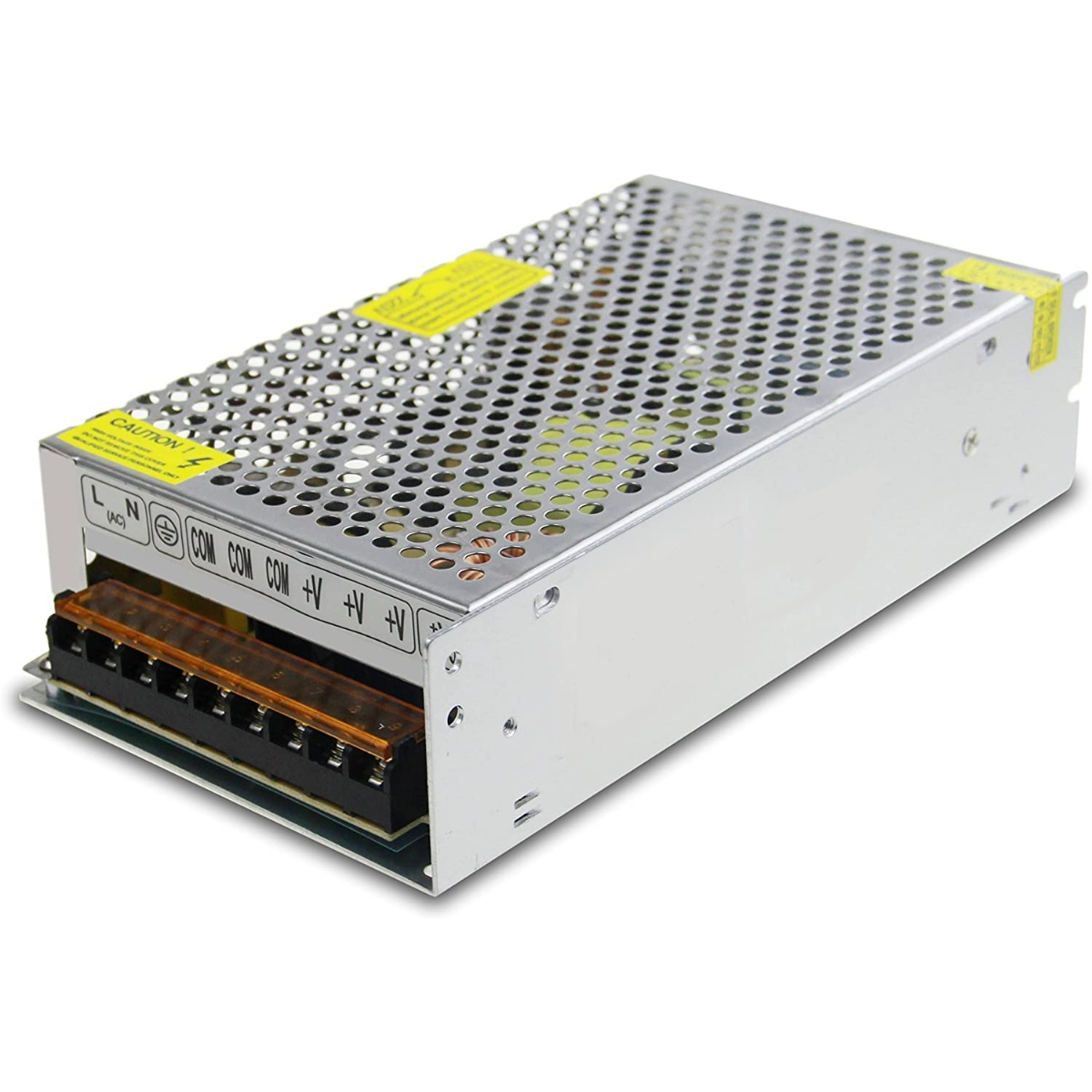

This Power Supply 24V 10A is a 240W switching mode power supply (SMPS) delivering a fixed 24V DC output at up to 10A. Input accepts either 110V AC or 220V AC, selectable via a side switch.
Output voltage can be adjusted within ±10% (approximately 21.6V–26.4V) using an onboard +V ADJ potentiometer. Protection covers short circuit, overload, overvoltage, and overtemperature conditions, with active cooling provided by a built-in fan given the higher power output.
Housed in an aluminum, vented metal case, it connects via a screw terminal block with a safety cover (L, N, GND, dual -V, dual +V), and carries CE and RoHS certification.
Features:
- Fixed 24V DC output, up to 10A (240W)
- Dual input voltage: 110V AC / 220V AC selectable
- ±10% adjustable output via onboard potentiometer
- Short circuit, overload, overvoltage, and overtemperature protection
- Active cooling with built-in fan
- Aluminum vented metal case
- CE and RoHS certified
- Suited for CNC routers, large 3D printers, and stepper/servo motor power
نظرة عامة ومواصفات المنتج — بالعربية
Power Supply 24V 10A متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Power Supply وSwitch Mode Power Supply، بسعر 1,30 EGP. كود المنتج لدينا: EK2021. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.
أهم المواصفات الفنية:
- Power: 240W
- جهد الخرج: 24V DC
- Output Current: 10A (Max)
- Input Voltage: 110V AC / 220V AC (Selectable)
- Supply Type: Switching Mode Power Supply (SMPS)
- Shell Material: Aluminum / Vented Metal Case
- Cooling Type: Built-in Cooling Fan
- Key Protections: Short Circuit / Overload / Overvoltage / Overtemperature
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Power Supply في إكوسترا.
Specification
Specification
| WeightWeight | 60 g |
|---|---|
| Dimensions | 7 × 5 × 3 cm |
| Power | 240W |
| Output Voltage | 24V DC |
| Output Current | 10A (Max) |
| Input Voltage | 110V AC, 220V AC (Selectable) |
| Supply Type | Switching Mode Power Supply (SMPS) |
| Shell Material | Aluminum, Vented Metal Case |
| Cooling Type | Built-in Cooling Fan |
| Key Protections | Short Circuit, Overload, Overvoltage, Overtemperature |
| Adjustable Output Voltage Range | ±10% (approx. 21.6V~26.4V) |
| Terminal Type | Screw Terminal Block with Safety Cover (L, N, GND, -V, -V, +V, +V) |
| Certifications | CE, RoHS |
