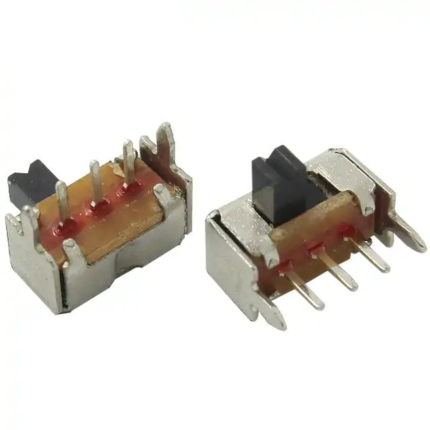

SK12D07VG3 Slide Switch Right-Angle SPDT 50V 0.5A Plugin for PCB

The SK12D07VG3 is a right-angle SPDT slide switch designed to mount flat against a PCB edge rather than standing upright, letting the actuator lever be accessed from the side of an enclosure while the switch body itself sits low and flush on the board – a common requirement for compact handheld devices and instruments where panel space is at a premium. Like any SPDT slide switch, moving the actuator connects the common pin to one of two output positions, giving a simple, latching two-state selection with no electronics or power needed to operate it.

Rated for 50V at 0.5A, it’s suited to low-voltage signal and small-load switching duties typical of hobby electronics and instrumentation – well beyond what’s needed for logic-level signal routing, with enough headroom for small indicator LEDs or low-current control lines.

1. Model: SK12D07VG3
2. Circuit: SPDT (Single Pole, Double Throw)
3. Mounting: Right-angle PCB plug-in
4. Rated Voltage: 50V
5. Rated Current: 0.5A
6. Compact, low-profile footprint for panel-space-constrained builds
