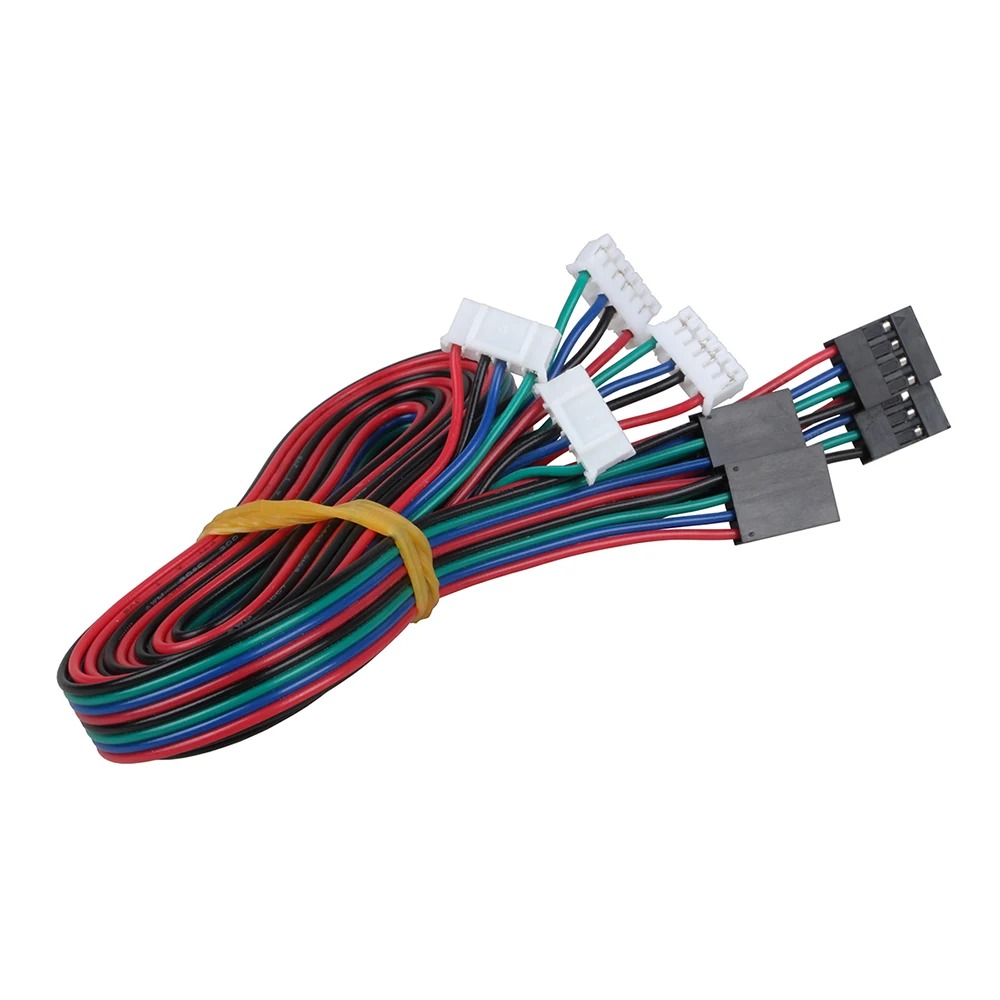

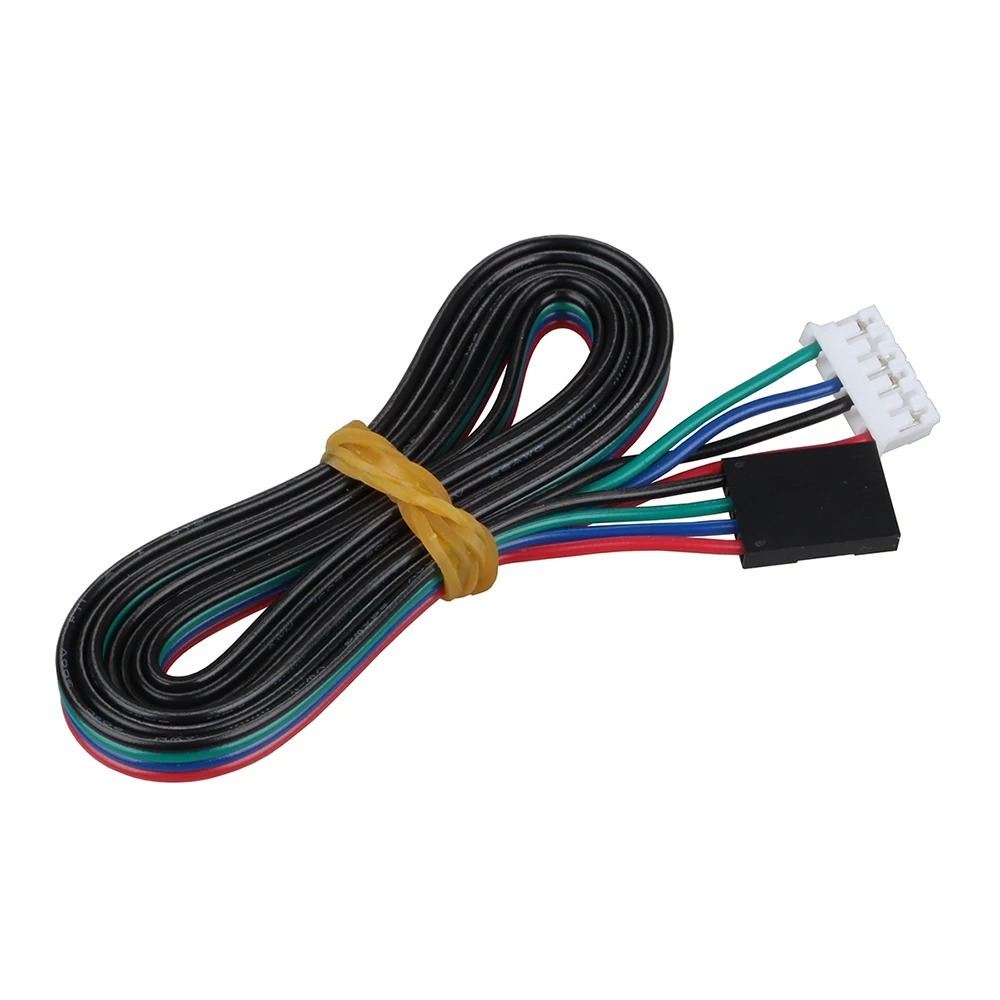

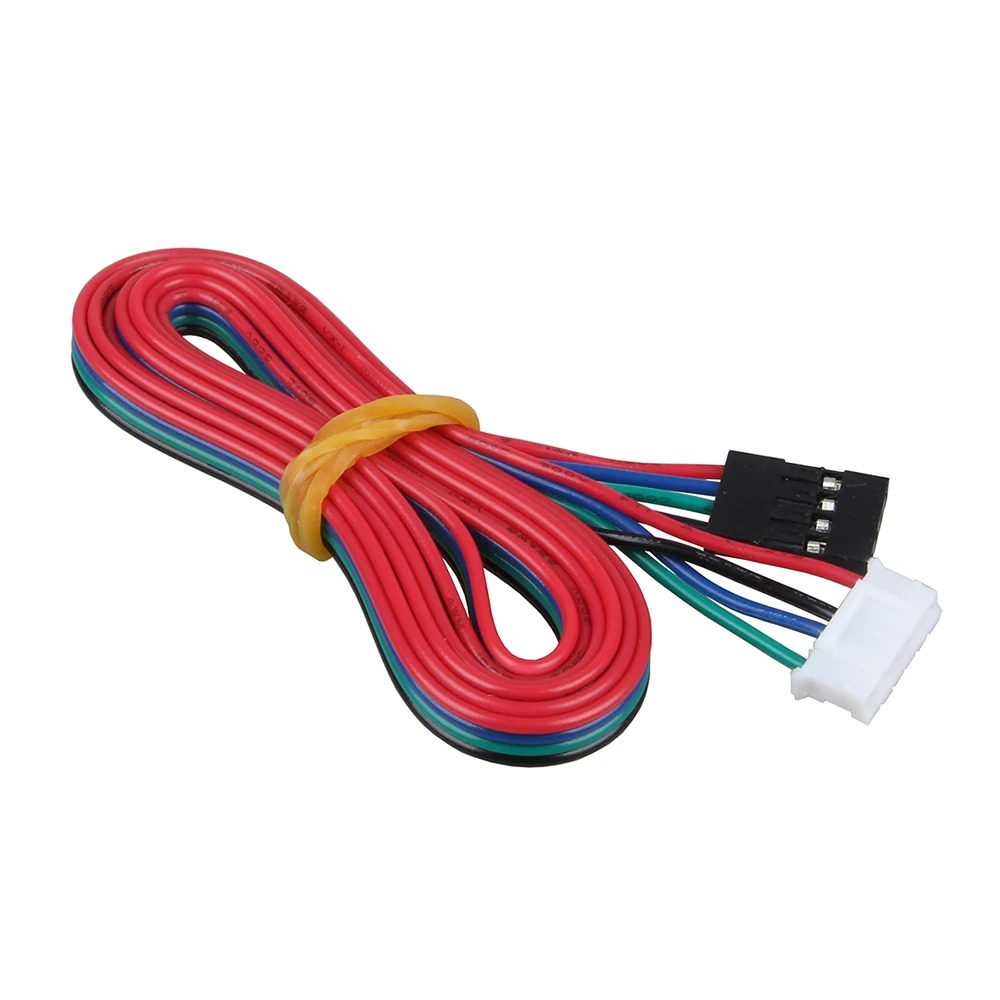

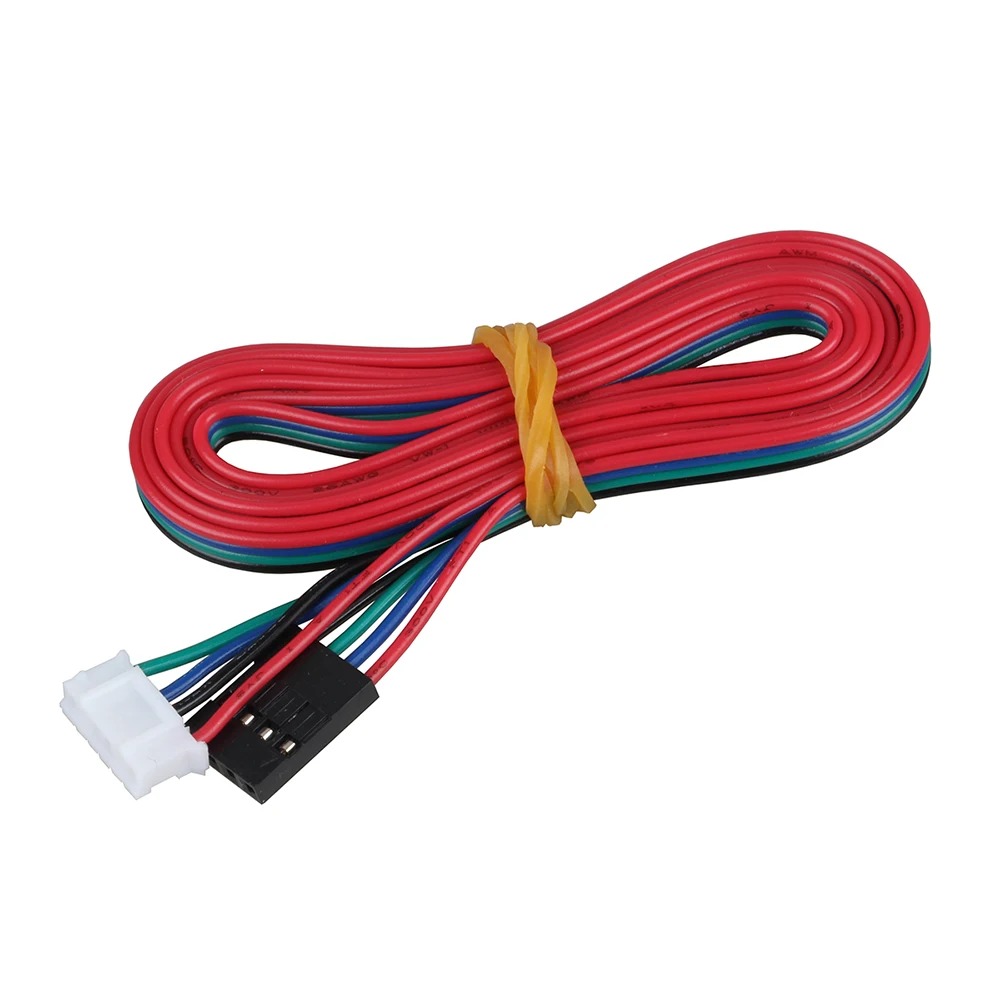

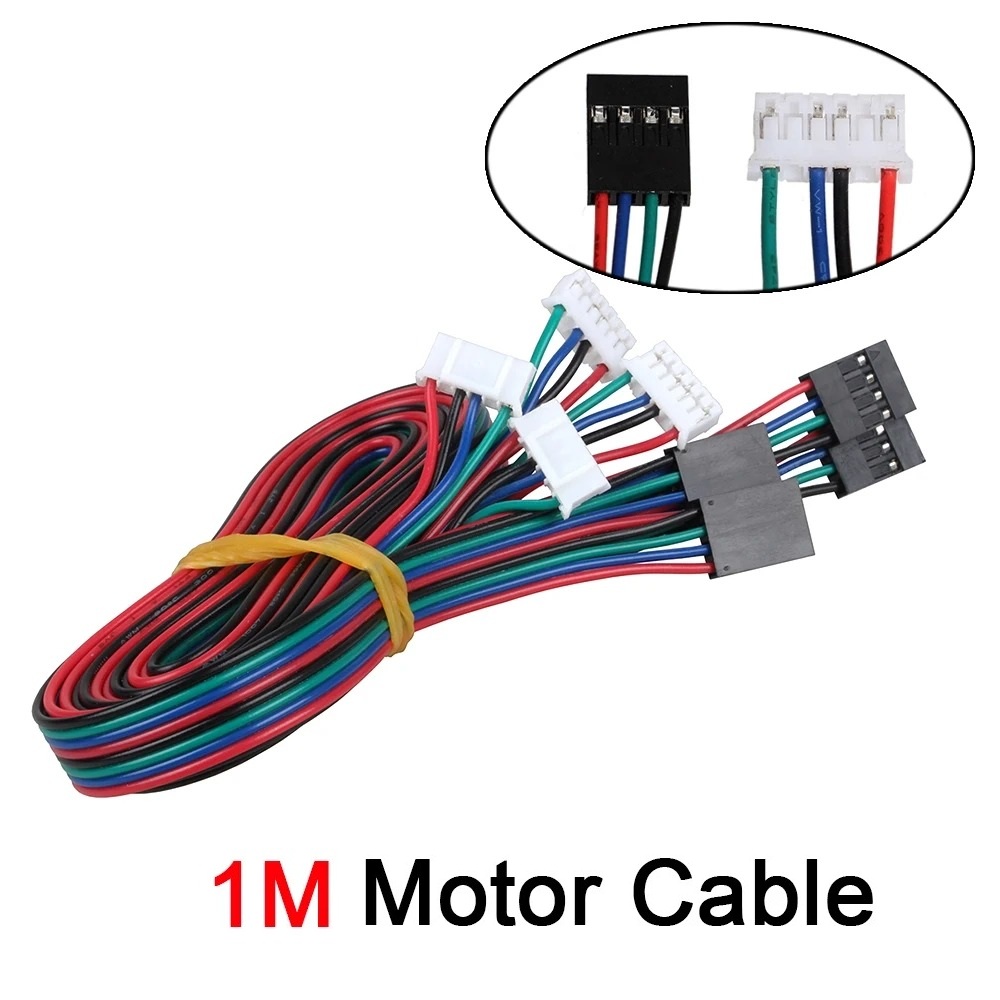

Stepper Motor Cable (6pin to 4pin ) 1m
Stepper Motor Cable (6pin to 4pin) 1m
1. Connector A: 6-Pin (Motor side, JST-PH 2.0mm)
2. Connector B: 4-Pin (Driver side, Dupont 2.54mm)
3. Cable Length: 1 meter
4. Compatibility: Standard NEMA 17 Steppers (4-wire)
5. Conductor Material: Stranded Copper
Apple Shopping Event
40,00 EGP
Payment Methods:
Description
This Stepper Motor Cable is an adapter cable that converts a stepper motor’s 6-pin JST-PH connector into a 4-pin Dupont connector suited for driver boards, letting standard NEMA 17 stepper motors connect to drivers expecting a 4-wire bipolar input.
Connector A, on the motor side, is a 6-pin JST-PH connector (2.0mm pitch), while Connector B, on the driver side, is a 4-pin Dupont connector (2.54mm pitch) — matching the pin spacing used by most stepper driver headers.
The 1-meter cable uses stranded copper conductors for flexibility, making it practical for routing between a motor and driver board across typical enclosure or gantry distances.
Features:
- 6-pin JST-PH to 4-pin Dupont adapter cable
- Compatible with standard NEMA 17 4-wire bipolar steppers
- 1-meter cable length
- Stranded copper conductors for flexibility
- 2.0mm motor-side pitch, 2.54mm driver-side pitch
نظرة عامة ومواصفات المنتج — بالعربية
Stepper Motor Cable (6pin to 4pin ) 1m متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Wires and Cables، بسعر 40,00 EGP. كود المنتج لدينا: EK1996. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Type: Stepper Motor Cable (JST-XH/PH adapter)
- Connector A: 6-pin (Motor side, JST-PH 2.0mm pitch)
- Connector B: 4-pin (Driver side, Dupont 2.54mm pitch)
- Cable Length: 1 meter
- Conductor Material: Stranded Copper (High flexibility)
- Compatibility: Standard NEMA 17 Stepper Motors (4-wire bipolar)
- الوزن: 2 g
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Wires and Cables في إكوسترا.
Specification
Specification
| WeightWeight | 20 g |
|---|---|
| Dimensions | 10 × 8 × 2 cm |
| Product Type | Stepper Motor Cable (JST-XH/PH adapter) |
| Connector A | 6-pin (Motor side, JST-PH 2.0mm pitch) |
| Connector B | 4-pin (Driver side, Dupont 2.54mm pitch) |
| Cable Length | 1 meter |
| Conductor Material | Stranded Copper (High flexibility) |
| Compatibility | Standard NEMA 17 Stepper Motors (4-wire bipolar) |
