DC Gear Motor JGA25-370 (130RPM – 12V)

Name: DC Gear Motor JGA25-370 (130RPM - 12V)
SKU: EK1997
Price: 350.00 EGP
Availability: InStock

DC Gear Motor JGA25-370 (130RPM – 12V)
1. Model: JGA25-370
2. Operating Voltage: 12V DC
3. No-Load Speed: 130 RPM
4. Gearbox Type: Metal Spur Gear
5. Motor Diameter: 25mm
6. Shaft Type: D-cut (typically 4mm)

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

350,00 EGP

Compare

20 People watching this product now!

Payment Methods:

Description

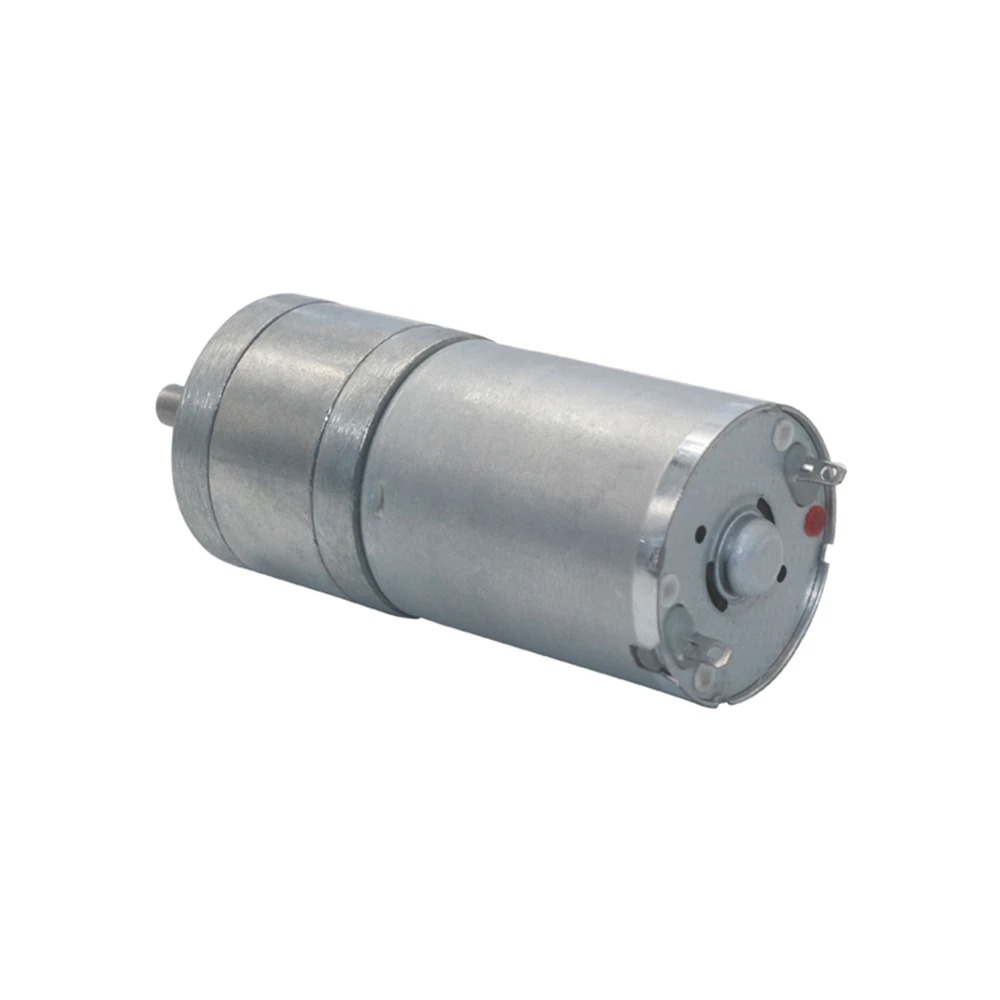

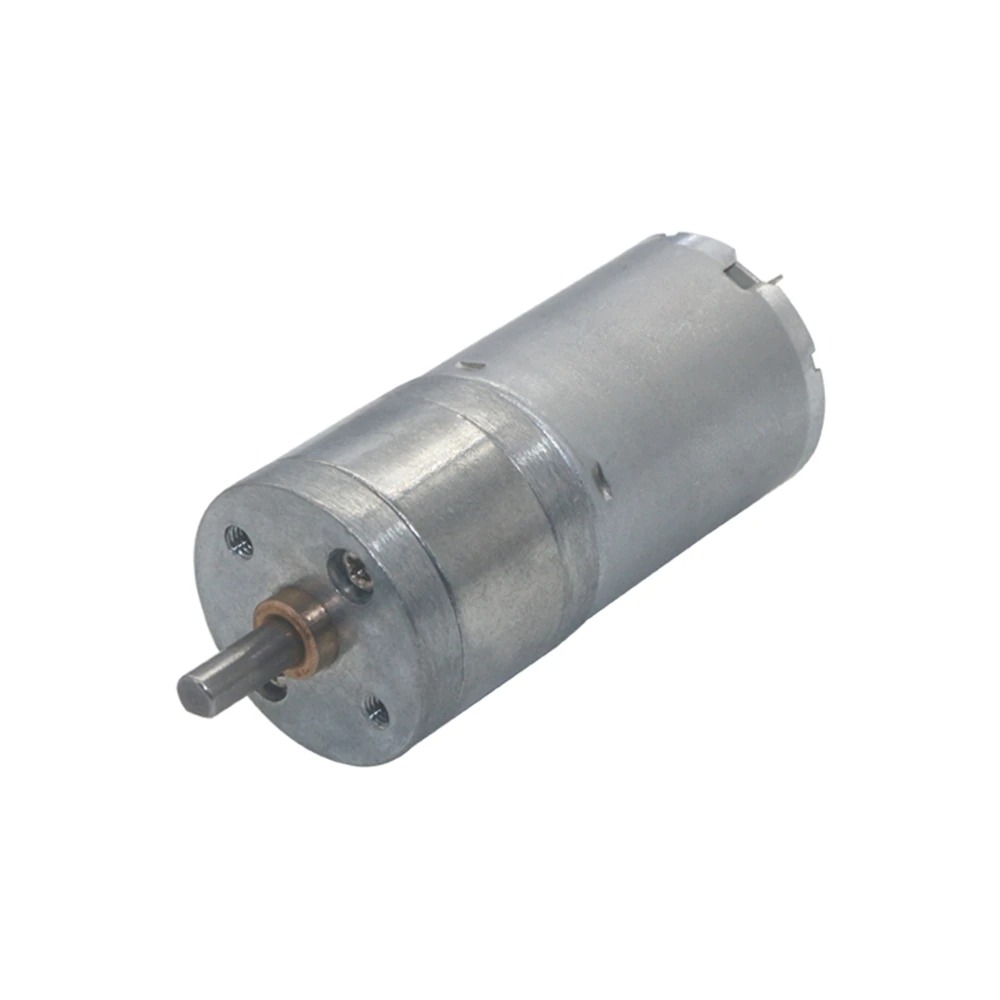

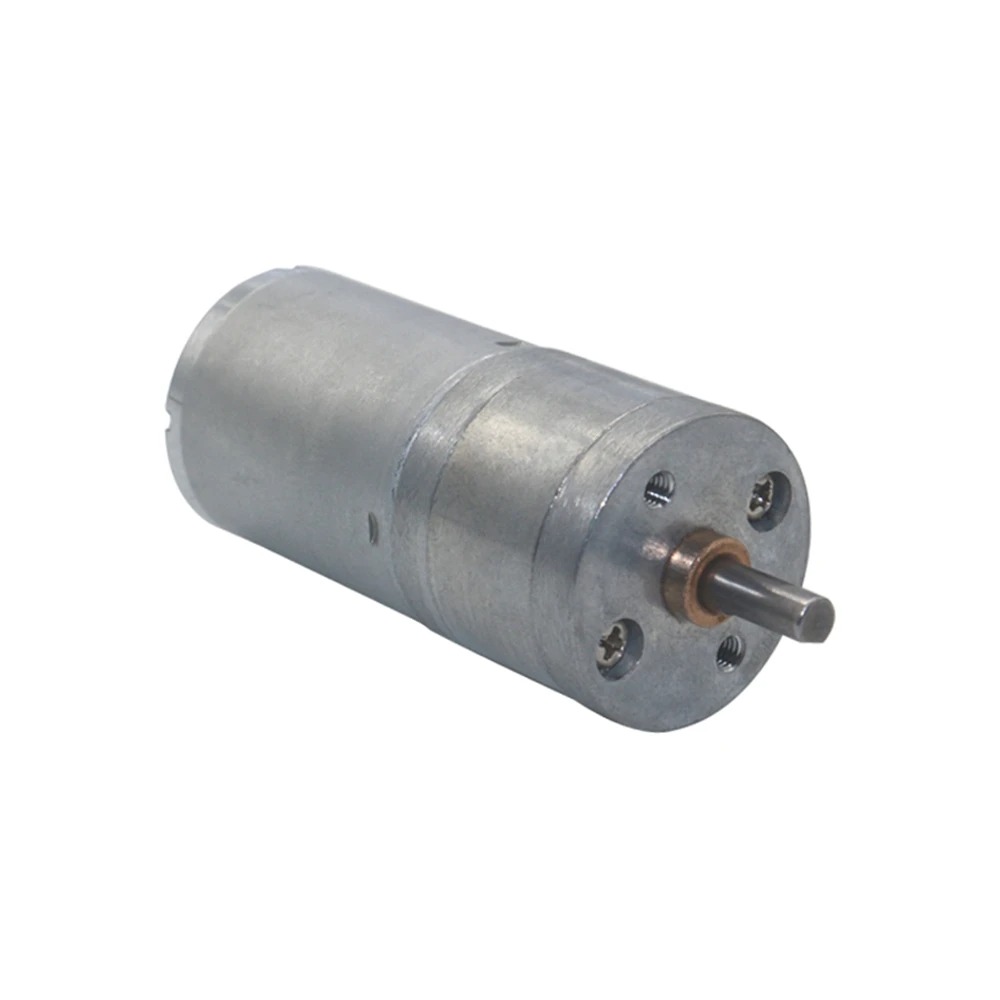

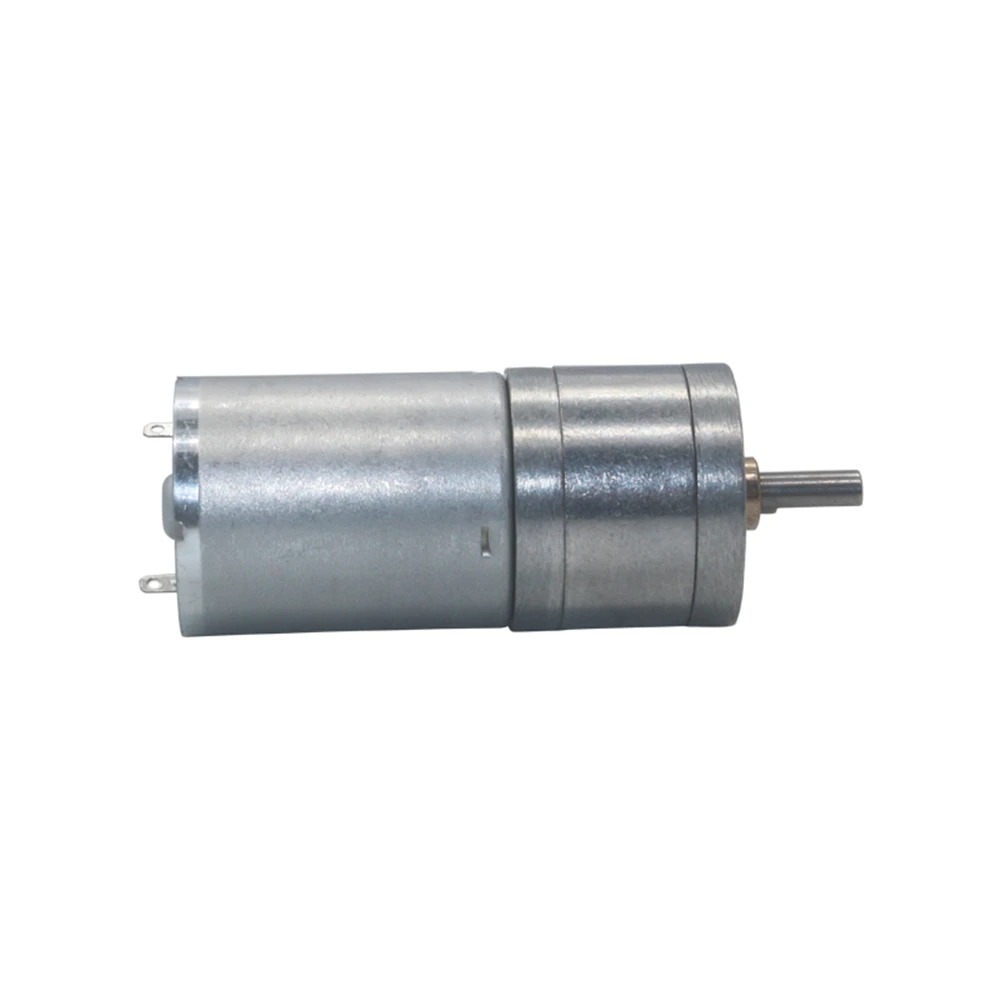

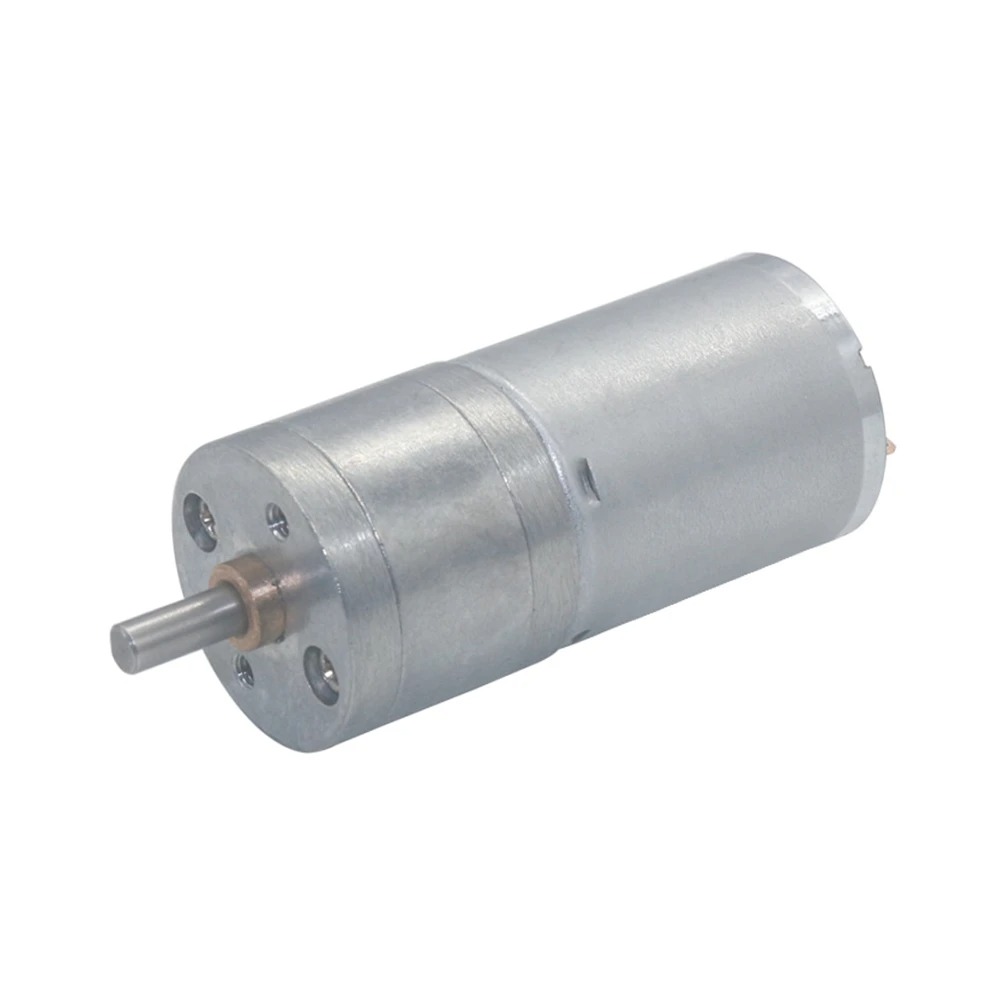

The DC Gear Motor JGA25-370 is a 12V DC motor paired with a metal spur gearbox, producing a no-load output speed of 130 RPM. The gearbox reduces the motor’s high native RPM down to a usable output speed while increasing torque.

The motor housing measures 25mm in diameter, and output is delivered through a D-cut shaft, typically 4mm in diameter, which mates with wheel hubs, couplers, and other D-shaft-compatible mounting hardware without slipping.

Built with metal gears rather than plastic, this motor is aimed at applications needing sustained torque delivery, such as robotics, electric locks, and other DIY motorized mechanisms.

Features:

Model: JGA25-370
Operating voltage: 12V DC
No-load speed: 130 RPM
Metal spur gearbox for durability
25mm motor diameter, compact form factor
D-cut output shaft (typically 4mm)
Suited for robotics, electric locks, and motorized mechanisms

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
Motor	to H-bridge OUT	motor leads into an H-bridge driver's output terminals

📟

DC Gear Motor JGA25-370 (130RPM - 12V)

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

DC Gear Motor JGA25-370 (130RPM - 12V) - Arduino Uno

DC Gear Motor JGA25-370 (130RPM - 12V) - Arduino Nano

DC Gear Motor JGA25-370 (130RPM - 12V) - Arduino Mega

DC Gear Motor JGA25-370 (130RPM - 12V) - ESP32

DC Gear Motor JGA25-370 (130RPM - 12V) - ESP8266

DC Gear Motor JGA25-370 (130RPM - 12V) - STM32

DC Gear Motor JGA25-370 (130RPM - 12V) - Raspberry Pi Pico

📄 File: dc_gear_motor_jga25-370_(130rpm_-_12v)_-_arduino_uno.inoArduino Uno

643 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Gear Motor JGA25-370 (130RPM - 12V) needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=8, IN2=9, ENA(speed)=10 on Arduino Uno.

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_gear_motor_jga25-370_(130rpm_-_12v)_-_arduino_nano.inoArduino Nano

644 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_gear_motor_jga25-370_(130rpm_-_12v)_-_arduino_mega.inoArduino Mega

644 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

6#define IN1 8

7#define IN2 9

8#define ENA 10

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_gear_motor_jga25-370_(130rpm_-_12v)_-_esp32.inoESP32

641 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Gear Motor JGA25-370 (130RPM - 12V) needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=26, IN2=27, ENA(speed)=25 on ESP32.

6#define IN1 26

7#define IN2 27

8#define ENA 25

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_gear_motor_jga25-370_(130rpm_-_12v)_-_esp8266.inoESP8266

643 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Gear Motor JGA25-370 (130RPM - 12V) needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=D5, IN2=D6, ENA(speed)=D7 on ESP8266.

6#define IN1 D5

7#define IN2 D6

8#define ENA D7

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_gear_motor_jga25-370_(130rpm_-_12v)_-_stm32.inoSTM32

647 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Gear Motor JGA25-370 (130RPM - 12V) needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=PB0, IN2=PB1, ENA(speed)=PA8 on STM32.

6#define IN1 PB0

7#define IN2 PB1

8#define ENA PA8

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

📄 File: dc_gear_motor_jga25-370_(130rpm_-_12v)_-_raspberry_pi_pico.inoRaspberry Pi Pico

653 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// DC Gear Motor JGA25-370 (130RPM - 12V) needs an H-bridge driver (e.g. L298N/L293D/L9110S) between it and the board - a GPIO pin alone can't supply a motor's current. IN1=14, IN2=15, ENA(speed)=16 on Raspberry Pi Pico.

6#define IN1 14

7#define IN2 15

8#define ENA 16

10void setup() {

11 Serial.begin(115200);

12 pinMode(IN1, OUTPUT);

13 pinMode(IN2, OUTPUT);

14 pinMode(ENA, OUTPUT);

15}

17void loop() {

18 digitalWrite(IN1, HIGH); digitalWrite(IN2, LOW);

19 analogWrite(ENA, 200); // run forward at ~78% speed

20 delay(2000);

21 digitalWrite(IN1, LOW); digitalWrite(IN2, LOW); // stop

22 delay(1000);

23}

Project Notes:

Bare DC motor - needs an H-bridge driver module (L298N/L293D/L9110S) wired between it and the microcontroller.

نظرة عامة ومواصفات المنتج — بالعربية

DC Gear Motor JGA25-370 (130RPM - 12V) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم DC Motor with Gearbox وMotors | Drivers | Pumps | Actuators، بسعر 350,00 EGP. كود المنتج لدينا: EK1997. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.

أهم المواصفات الفنية:

الموديل: JGA25-370
Operating Voltage: 12V DC
No Load Speed: 130 RPM
Gearbox Type: Spur Gear (Metal Gears)
Motor Diameter: 25mm
Shaft Type: D-cut (typically 4mm diameter)
الوزن: 4 g

منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.

تصفّح المزيد من DC Motor with Gearbox في إكوسترا.

Specification

WeightWeight	40 g
Dimensions	4 × 3 × 3 cm
Model	JGA25-370
Operating Voltage	12V DC
No-Load Speed	130 RPM
Gearbox Type	Spur Gear (Metal Gears)

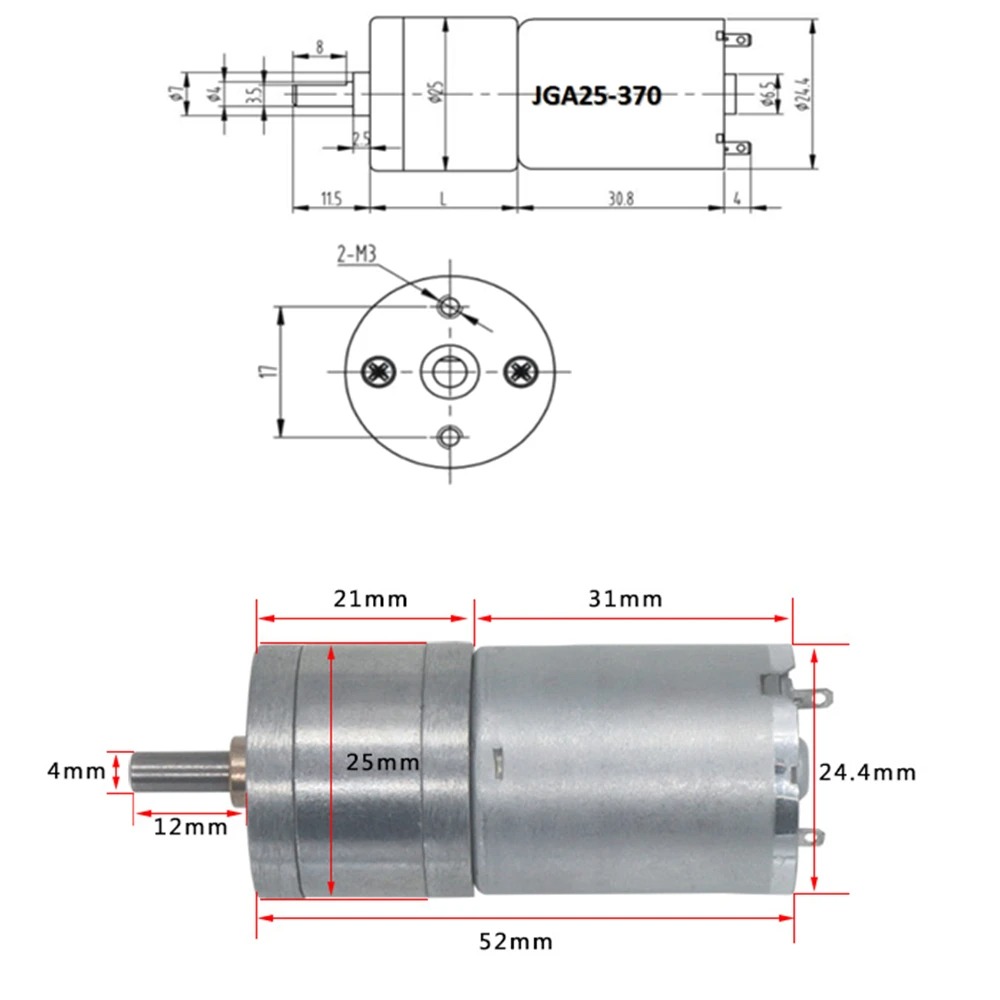

Motor Diameter	25mm
Shaft Type	D-cut (typically 4mm diameter)
