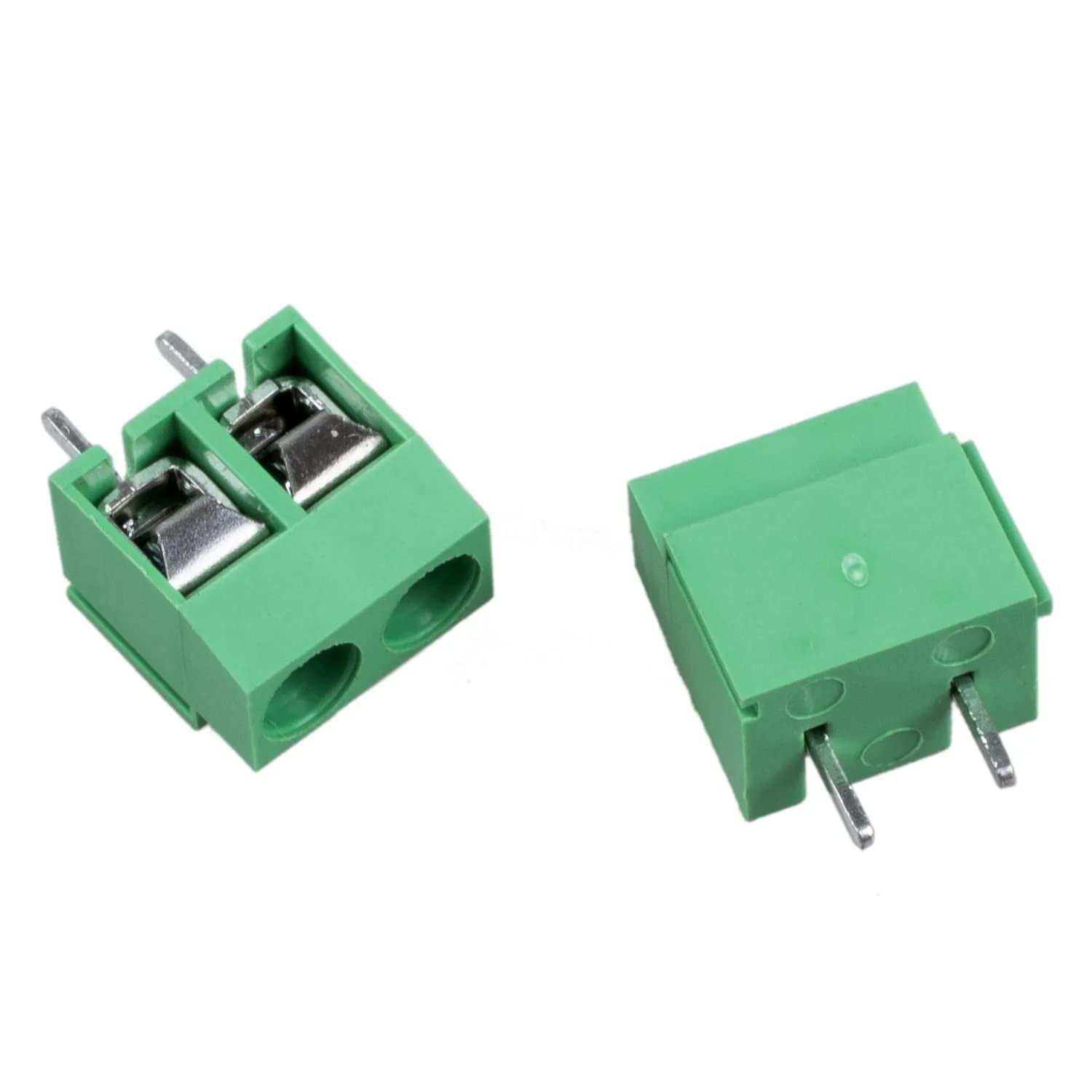

Terminal Block 2Pin 3.5mm Pitch
- Compact 2-pin terminal block – Ideal for saving space on PCBs
- Side-entry screw terminals – Easy wire insertion and secure connections
- Wide Compatibility – Accepts 24–18 AWG wire sizes
- Reliable Power Handling – Supports up to 300V and 10A
- 3.5mm Pitch – Standard spacing for common PCB layouts
- Safe Design – Plastic-coated conductors prevent accidental contact
- Durable Build – Withstands temperatures from -40ºC to +150ºC
- Easy to Solder – Through-hole mounting for strong PCB connection
Apple Shopping Event
3,50 EGP
Payment Methods:
Description
The CY350-3.5 2-pin terminal block, due to its easy way to solder, is used in PCB’s as points to quickly connect cables with external signals to the circuit. This terminal block has a very compact design that helps save space in our projects.
Features
| Description | |
| Model | CY350-3.5 |
| Maximum voltage | 300V |
| Maximum Current | 10A |
| Range of cables accepted | 24-18AWG |
| Connection Input | 2 |
| Pitch | 3.5mm |
| Temperature range | -40ºC ~ +150ºC |
| Mount Type | through hole |
| Color | Green |
| Material | Plastic-coated metal conductors to prevent electrical contact with the user |
This product is 3.5mm-pitch, two-pin, side-entry terminal blocks. The more general dimension diagram for an XX-pin version of this screw terminal block is shown below.
 |
| SCREW TERMINAL BLOCK: 3.5 MM PITCH, SIDE ENTRY DIMENSIONS. |
|---|
نظرة عامة ومواصفات المنتج — بالعربية
Terminal Block 2Pin 3.5mm Pitch متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Basic Electronic Components، بسعر 3,50 EGP. كود المنتج لدينا: EK1396. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Name: Terminal Block 2Pin 3.5mm Pitch
- Type: Screw Terminal Block Connector
- Number Of Pins: 2
- Pitch: 3.5 mm
- Current Rating: 10A (typical)
- Voltage Rating: 250V AC / 300V DC (typical)
- Wire Gauge: 28–12 AWG
- طريقة التثبيت: Through-Hole
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Basic Electronic Components في إكوسترا.
Specification
Specification
| WeightWeight | 2 g |
|---|---|
| Dimensions | 0,9 × 0,8 × 0,7 cm |
| Product Name | Terminal Block 2Pin 3.5mm Pitch |
| Type | Screw Terminal Block Connector |
| Number of Pins | 2 |
| Pitch | 3.5 mm |
| Current Rating | 10A (typical) |
| Voltage Rating | 250V AC / 300V DC (typical) |
| Wire Gauge | 28–12 AWG |
| Mounting Type | Through-Hole |
| Material | Nylon / Plastic Body with Metal Contacts |
| Operating Temperature Range | -40°C – +105°C |
| Color | Green |
| Applications | PCB Connections, Power Supply, Arduino / DIY Electronics |
| Package Contents | 1× 2Pin 3.5mm Pitch Terminal Block |
