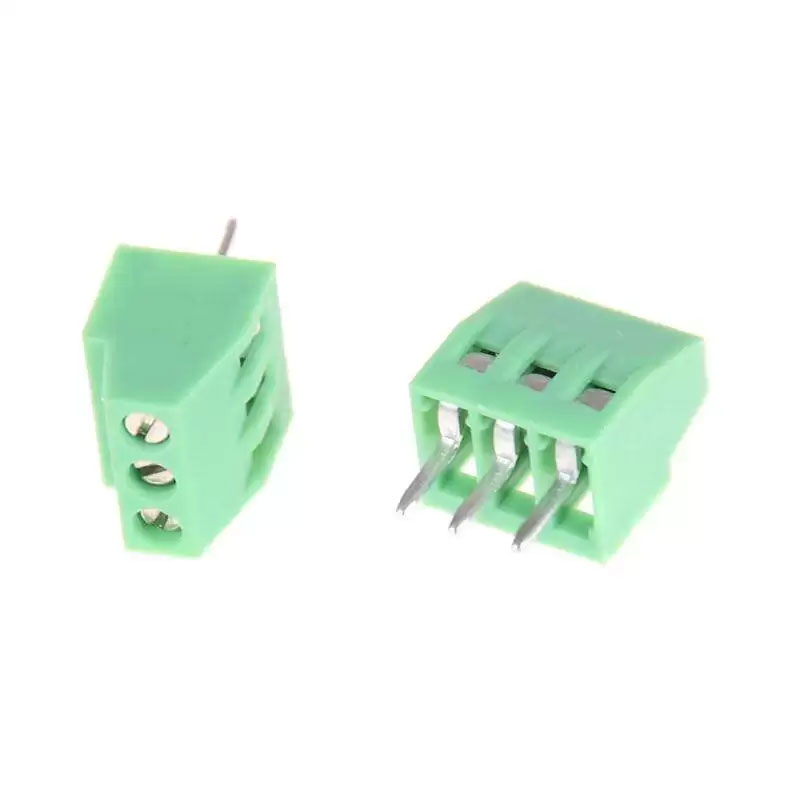

Terminal Block 3Pin 3.96mm Pitch
- 3.96mm pitch, 3-pin screw terminal
- Rated for 10A / 300V
- Accepts 18–24 AWG wires
- Through-hole, straight pin mount
- -40℃ to +105℃ temperature range
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
5,00 EGP
15
People watching this product now!
Payment Methods:
Description
| Manufacturer | Cixi Kefa Elec |
| Mfr. Part # | KF396-3.96-3P |
| Package | Straight,P=3.96mm |
| Datasheet | KF396-3-96-3P Datasheet |
| Description | 10A 0.75 -40℃~+105℃ 300V Green Straight pin 3.96mm 1 18~24 3 Straight,P=3.96mm Screw terminal ROHS |
Specifications
| Attribute | Value |
| Category | Connectors/Screw terminal |
| Datasheet | KF396-3-96-3P Datasheet |
| RoHS | |
| Current Rating (Max) | 10A |
| Wire Gauge – mm? | 0.75 |
| Operating Temperature Range | -40℃~+105℃ |
| Voltage Rating (Max) | 300V |
| Color | Green |
| Mounting Style | Straight pin |
| Pitch | 3.96mm |
| Number of Rows | 1 |
| Wire Gauge – AWG | 18~24 |
| Number of PINs Per Row | 3 |
نظرة عامة ومواصفات المنتج — بالعربية
Terminal Block 3Pin 3.96mm Pitch متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Basic Electronic Components، بسعر 5,00 EGP. كود المنتج لدينا: EK1395. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Name: Terminal Block 3Pin 3.96mm Pitch
- Type: Screw Terminal Block Connector
- Number Of Pins: 3
- Pitch: 3.96 mm
- Current Rating: 10A (typical)
- Voltage Rating: 250V AC / 300V DC (typical)
- Wire Gauge: 28–12 AWG
- طريقة التثبيت: Through-Hole
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Basic Electronic Components في إكوسترا.
Specification
Specification
| WeightWeight | 2 g |
|---|---|
| Dimensions | 1,2 × 1 × 0,8 cm |
| Product Name | Terminal Block 3Pin 3.96mm Pitch |
| Type | Screw Terminal Block Connector |
| Number of Pins | 3 |
| Pitch | 3.96 mm |
| Current Rating | 10A (typical) |
| Voltage Rating | 250V AC / 300V DC (typical) |
| Wire Gauge | 28–12 AWG |
| Mounting Type | Through-Hole |
| Material | Nylon / Plastic Body with Metal Contacts |
| Operating Temperature Range | -40°C – +105°C |
| Color | Green |
| Applications | PCB Connections, Power Supply, Arduino / DIY Electronics |
| Package Contents | 1× 3Pin 3.96mm Pitch Terminal Block |
