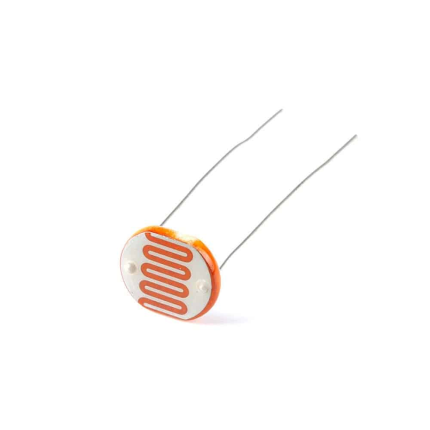

12mm 12528 LDR，10-20K
✅ 12mm CdS photoresistor
✅ 10k–20k Ω resistance in dark
✅ Sensitive to visible light (peak ~520 nm)
✅ Fast response time (~10 ms)
✅ Ideal for light sensing and automation
Apple Shopping Event
15,00 EGP
Payment Methods:
Description
The resistance of 12mm GL12528 Light Sensitive Photoresistor LDR changes with the change in the ambient light exposed on the surface of the sensor. As the light on the sensor increases then the resistance across the two leads decreases. Light Dependent Resistor is a type of photocell which finds excellent use in light sensing device application, whether it is automatic outdoor light ON/OFF switch or indoor automatic light switch; moreover, the 12mm LDR or photoresistor sensor works best in both light and dark regions. The photo-resistors are a staple of electronics. If you need a way to sense the level of ambient light then there is no easier way to do it without an LDR/photo-resistor.
Two Cadmium Sulphide PhotoConductive Cells with spectral responses similar to that of the human eye. Cell resistance falls with increasing light intensity. Applications of this product include smoke detection, automatic lighting control, batch counting, and burglar alarm systems. Furthermore, some of the applications are given below.
Analog Applications:
- Camera exposure control
- Auto slide focus – dual cell
- Photocopy machines – the density of the toner
- Colorimetric test Equipment
- Densitometer
- Electronics scales – dual cell
- Automatic gain control – modulated light source
- Automated rearview mirror
Digital Applications:
- Automatic headlight dimmer
- Nightlight control
- Oil burner flame out
- Streetlight control
- Absence/presence (beam breaker)
- Position sensor
Other applications:
- Annunciator
- Camera automatic photometry
- Electronic toy
- Industrial control
- Light control
- Light control lamp
- Photoelectric control
- Switch
Features:
- Spectral peak: 560nm
- Maximum voltage: 250 VDC
- Maximum wattage: 200 mW
- Operating temperature: -30˚C ~ +70˚C
- Light resistance (10 Lux): 10-20 KΩ
- Dark resistance: 2 MΩ
- Resistance illumination: 3
- Response time: 20ms (Rise), 30ms (Down)
Package Includes :
نظرة عامة ومواصفات المنتج — بالعربية
12mm 12528 LDR，10-20K متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Light/Color Sensor وSensors، بسعر 15,00 EGP. كود المنتج لدينا: EK865. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Diameter Mm: 12
- No Of Pins: 2
- Dark Resistance: max. 20MΩ
- Spectral Peak: 560 nm
- Light Resistance 10 Lux: 10 – 20 kΩ
- Maximum Voltagev: 250 VDC
- Maximum Power W: 0.2
- Operating Temperature C: -30˚C to 70˚C
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Light/Color Sensor في إكوسترا.
Specification
Specification
| WeightWeight | 3,0000 g |
|---|---|
| Dimensions | 3 × 2 × 1 cm |
| diameter-mm | 12 |
| no-of-pins | 2 |
| dark-resistance | max. 20MΩ |
| spectral-peak | 560 nm |
| light-resistance-10-lux | 10 – 20 kΩ |
| maximum-voltagev | 250 VDC |
| maximum-power-w | 0.2 |
| operating-temperature-c | -30˚C to 70˚C |
| resistance-illumination | 3 |
| response-time-%ce%bcs | 20(Rise), 30 (Down) |
