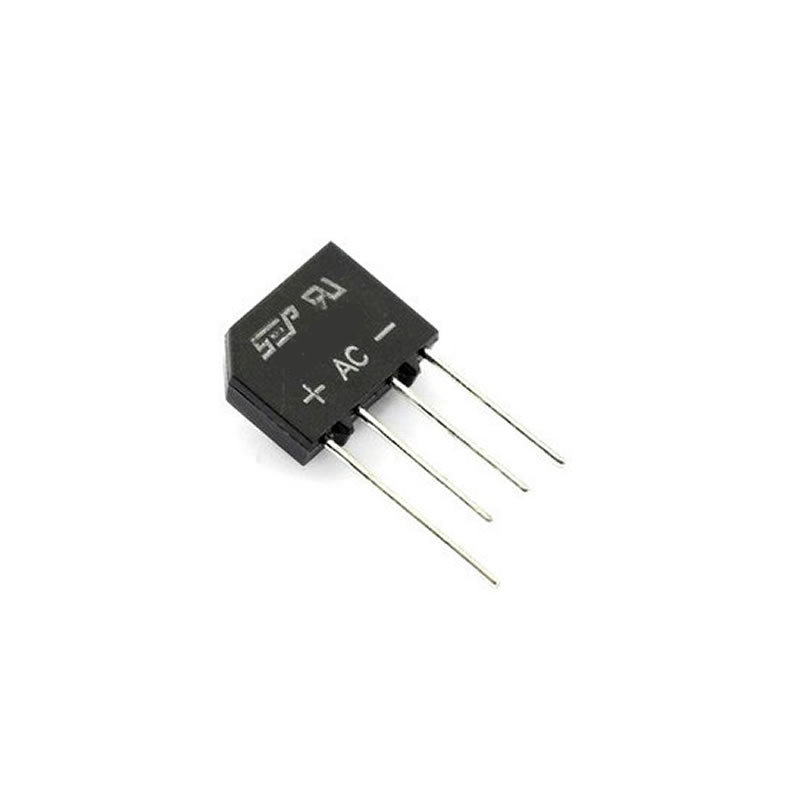

4A Single-Phase Diode Bridge Rectifier (1000V, Through-Hole)
- 4A Current Rating: Suitable for moderate power AC to DC conversion
- Wide Voltage Range: Typically supports up to 1000V reverse voltage
- Full-Wave Rectification: Converts AC input to smooth DC output
- Compact & Reliable: Ideal for power supplies and DIY electronics
- Easy to Mount: Standard 4-pin configuration for simple PCB integration
Apple Shopping Event
9,00 EGP
Payment Methods:
Description
A 4A bridge rectifier is an essential component for converting AC to DC in power supply circuits. Here’s a detailed overview:
Specifications:
- Current Rating: 4A
- Voltage Rating: Typically available in 50V, 100V, 200V, 400V, 600V, or higher versions
- Configuration: Full-wave bridge rectifier (four diodes in a bridge arrangement)
- Package Type: Usually DIP (Through-hole) or SMD (Surface Mount)
- Forward Voltage Drop: ~1.1V per diode
- Operating Temperature: -40°C to +150°C
- Common Part Numbers: KBL406, MB6S, DB107, etc.
How It Works:
A bridge rectifier converts AC voltage into DC by allowing current to flow in one direction, smoothing out the waveform.
Pinout:
- AC Input (AC1 & AC2): Connects to the AC power source.
- Positive Output (+): Connects to the DC circuit’s positive rail.
- Negative Output (-): Connects to the DC circuit’s ground.
Applications:
✅ Power supplies for electronics
✅ Battery chargers
✅ LED drivers
✅ DC motor control
Additional Components Needed:
- Capacitor (e.g., 1000µF or higher) for smoothing
- Voltage regulator (e.g., 7805 for 5V output) if precise voltage is required
نظرة عامة ومواصفات المنتج — بالعربية
4A Single-Phase Diode Bridge Rectifier (1000V, Through-Hole) متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Diode وElectronic Components، بسعر 9,00 EGP. كود المنتج لدينا: EK1772. المنتج متوفر في المخزون وجاهز للشحن الفوري لكل محافظات مصر مع إمكانية الدفع عند الاستلام.
أهم المواصفات الفنية:
- Product Name: Bridge Rectifier 4A
- Type: Bridge Rectifier (Diode Bridge)
- Maximum Current: 4A
- Maximum Reverse Voltage: 400V – 600V (model-dependent)
- Package Type: KBPC / KBPCxxxx standard (varies by manufacturer)
- الخامة: Epoxy resin / plastic case with metal pins
- اللون: Black body with silver leads
- الأبعاد: Approx. 22 × 20 × 10 mm
منتج أصلي بجودة مضمونة من إكوسترا، مع دعم فني ومتابعة بعد البيع لكل عملائنا في مصر.
تصفّح المزيد من Diode في إكوسترا.
Specification
Specification
| WeightWeight | 1 g |
|---|---|
| Dimensions | 0,5 × 0,2 × 0,2 cm |
| Product Name | Bridge Rectifier 4A |
| Type | Bridge Rectifier (Diode Bridge) |
| Maximum Current | 4A |
| Maximum Reverse Voltage | 400V – 600V (model-dependent) |
| Package Type | KBPC / KBPCxxxx standard (varies by manufacturer) |
| Material | Epoxy resin / plastic case with metal pins |
| Color | Black body with silver leads |
| Dimensions | Approx. 22 × 20 × 10 mm |
| Weight | ~15 g |
