Charging Module Board Power Bank 5V 2.4A Dual USB Micro/Type-C USB With LED Display
Charging Module Board Power Bank 5V 2.4A Dual USB Micro/Type-C With LED Display
1. Input Interfaces: Micro USB and USB Type-C
2. Output Interface: Dual USB Type-A
3. Max Output: 5V / 2.4A (Combined)
4. Compatibility: 3.7V Li-ion/Li-Po batteries
5. Display: LED Battery Percentage
Apple Shopping Event
145,00 EGP
Payment Methods:
Description

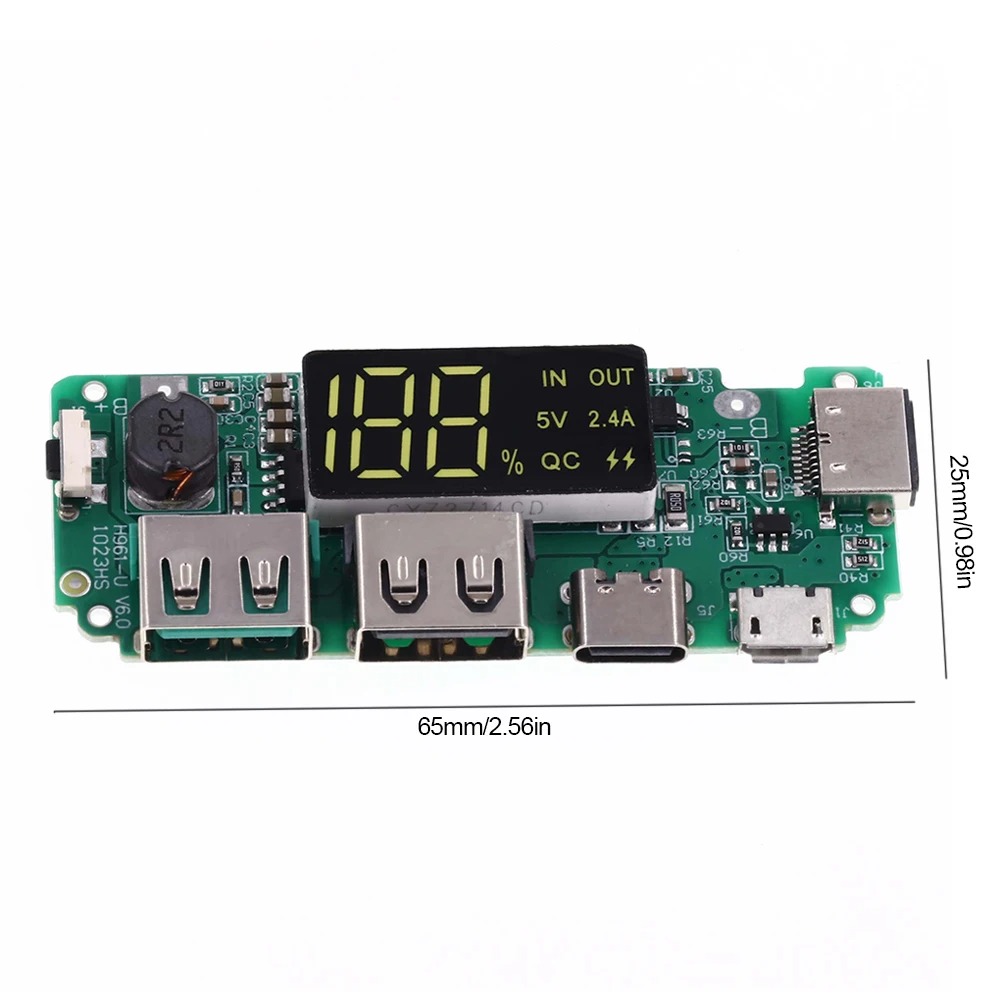

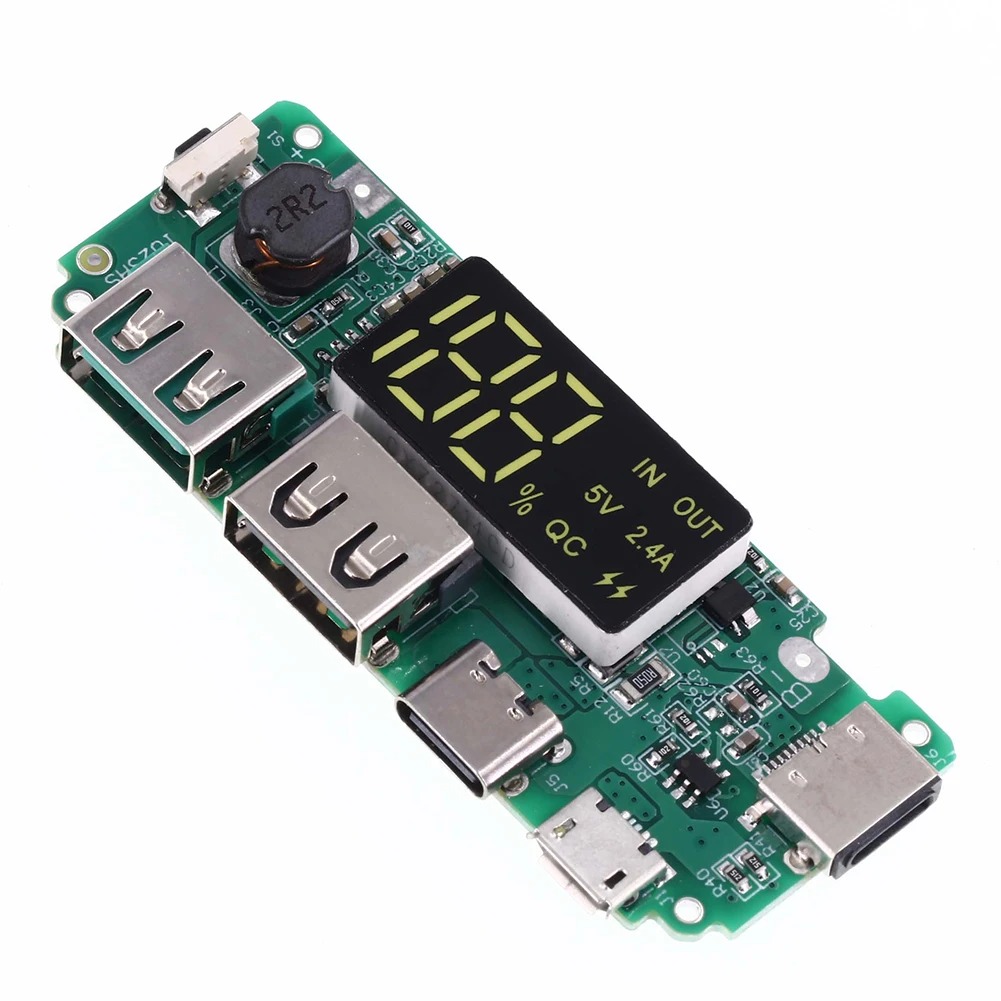

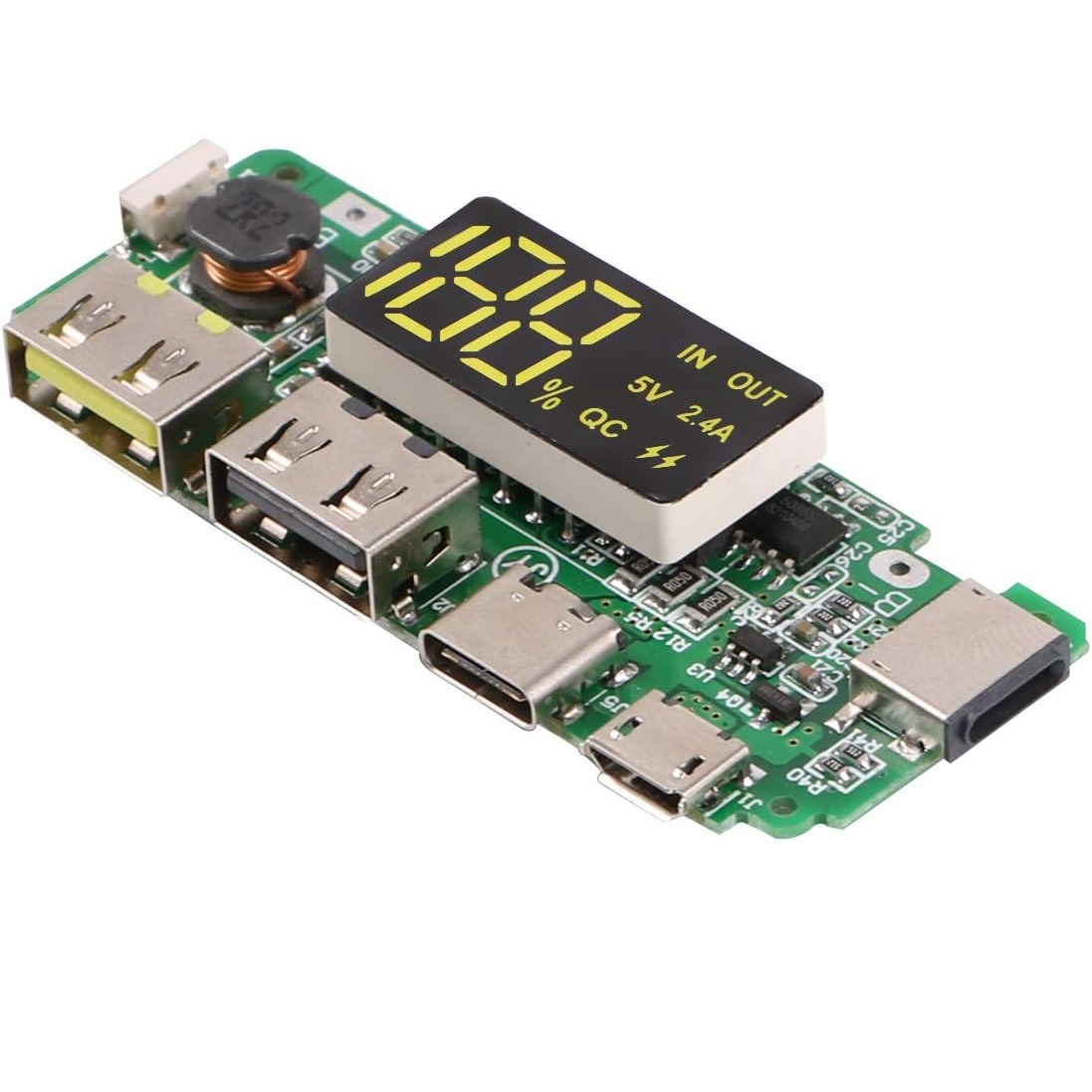

This Charging Module Board is a power bank management circuit that handles both charging a Li-ion/LiPo battery and boosting its voltage to a regulated 5V USB output for connected devices.
Input charging is supported through either Micro USB or USB Type-C, with fast-charging input support, while output is delivered through two USB Type-A ports rated at a combined 5V/2.4A maximum.
An integrated LED digital display shows battery percentage in real time, and the board includes over-charge, over-discharge, and short-circuit protection, making it a complete management solution for building a custom power bank around 3.7V Li-ion/LiPo cells such as 18650s.
Features:
- Dual charging input: Micro USB or USB Type-C
- Dual USB Type-A output, 5V/2.4A combined max
- Integrated LED battery percentage display
- Compatible with 3.7V Li-ion/LiPo cells (e.g. 18650)
- Over-charge, over-discharge, and short-circuit protection
- Complete power bank management circuit in one board
نظرة عامة ومواصفات المنتج — بالعربية
Charging Module Board Power Bank 5V 2.4A Dual USB Micro/Type-C USB With LED Display متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Transistor، بسعر 145,00 EGP. كود المنتج لدينا: EK1988. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.
أهم المواصفات الفنية:
- Product Type: Power Bank Management / Charging Module
- Input Interfaces: Micro USB / USB Type-C (Fast charging input supported)
- Output Interface: Dual USB Type-A (5V)
- Max Output: 5V / 2.4A (Combined)
- Display: Integrated LED Digital Display (Battery %)
- Compatibility: 3.7V Li-ion/Li-Po batteries (e.g. 18650)
- Protection: Over-charge / Over-discharge / Short-circuit
- الوزن: 1 g
هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.
تصفّح المزيد من Transistor في إكوسترا.
Specification
Specification
| WeightWeight | 10 g |
|---|---|
| Dimensions | 5 × 4 × 2 cm |
| Product Type | Power Bank Management / Charging Module |
| Input Interfaces | Micro USB, USB Type-C (Fast charging input supported) |
| Output Interface | Dual USB Type-A (5V) |
| Max Output | 5V / 2.4A (Combined) |
| Display | Integrated LED Digital Display (Battery %) |
| Compatibility | 3.7V Li-ion/Li-Po batteries (e.g. 18650) |
| Protection | Over-charge, Over-discharge, Short-circuit |
