Description

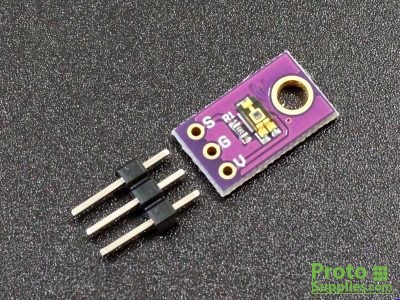

This CJMCU-TEMT6000 An Ambient Light Sensor module uses a special ambient light detector（TMET6000） with a spectral response that closely emulates the human eye. It helps you to detect the light density and reflect the analog voltage signal back to the Arduino controller. You can set the threshold of a voltage level to trig another unit on the Arduino project.

CJMCU-TEMT6000 is an ambient light sensor is a silicon NPN epitaxial planar phototransistor in a miniature transparent 1206 package for surface mounting. It is sensitive to visible light much like the human eye and has peak sensitivity at 570 nm. While this device is very sensitive to ambient light, but which inhibit infrared (IR) spectrum, which can provide similar “to the human eye, ” the visible spectrum greater responsiveness.

APPLICATIONS:

Ambient light sensor for control of display backlight dimming in LCD displays and keypad backlighting of mobile devices and in industrial on/off-lighting operation.

Automotive sensors
Mobile phones
Notebook computers
PDA’s
Cameras
Dashboards

Sample Code:

void setup()
{
Serial.begin(9600); // open serial port, set the baud rate to 9600 bps
}
void loop()
{
int val;
val=analogRead(0); //connect sensor to Analog 0
Serial.println(val); //print the value to serial
delay(100);
}

Pinout:

Cable	Color Description
Black	GND
Red	VCC
Other	output

Features:

AEC-Q101 qualified
High photosensitivity
Near-Human Eye Spectral Response
Scalable Output Voltage
Adapted to human eye responsivity
Lead (Pb)-free reflow soldering
Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC

Package Includes:

1 x CJMCU-TEMT6000 An Ambient Light Sensor

1 x 3*1 Burg Pin (Straight)

🔌

Pin Connections

1 Table

Pin Connections Table 1

Board	Sensor Pin	Connection
TEMT6000	VCC/GND/AOUT	3.3-5V / GND / board analog pin

📟

CJMCU-TEMT6000 An Ambient Light Sensor (3)

7 Examples • C/C++ | Boards: Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico

Wrap

CJMCU-TEMT6000 An Ambient Light Sensor (3) - Arduino Uno

CJMCU-TEMT6000 An Ambient Light Sensor (3) - Arduino Nano

CJMCU-TEMT6000 An Ambient Light Sensor (3) - Arduino Mega

CJMCU-TEMT6000 An Ambient Light Sensor (3) - ESP32

CJMCU-TEMT6000 An Ambient Light Sensor (3) - ESP8266

CJMCU-TEMT6000 An Ambient Light Sensor (3) - STM32

CJMCU-TEMT6000 An Ambient Light Sensor (3) - Raspberry Pi Pico

📄 File: cjmcu-temt6000_an_ambient_light_sensor_(3)_-_arduino_uno.inoArduino Uno

389 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Uno

6#define LIGHT_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LIGHT_PIN);

14 float voltage = raw * 5.0 / 1023.0;

16 Serial.print("Light raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.println(voltage); // higher = brighter

19 delay(300);

20}

📄 File: cjmcu-temt6000_an_ambient_light_sensor_(3)_-_arduino_nano.inoArduino Nano

390 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Nano

6#define LIGHT_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LIGHT_PIN);

14 float voltage = raw * 5.0 / 1023.0;

16 Serial.print("Light raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.println(voltage); // higher = brighter

19 delay(300);

20}

📄 File: cjmcu-temt6000_an_ambient_light_sensor_(3)_-_arduino_mega.inoArduino Mega

390 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on Arduino Mega

6#define LIGHT_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LIGHT_PIN);

14 float voltage = raw * 5.0 / 1023.0;

16 Serial.print("Light raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.println(voltage); // higher = brighter

19 delay(300);

20}

📄 File: cjmcu-temt6000_an_ambient_light_sensor_(3)_-_esp32.inoESP32

383 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 34 on ESP32

6#define LIGHT_PIN 34

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LIGHT_PIN);

14 float voltage = raw * 3.3 / 4095.0;

16 Serial.print("Light raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.println(voltage); // higher = brighter

19 delay(300);

20}

📄 File: cjmcu-temt6000_an_ambient_light_sensor_(3)_-_esp8266.inoESP8266

385 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin A0 on ESP8266

6#define LIGHT_PIN A0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LIGHT_PIN);

14 float voltage = raw * 3.3 / 1023.0;

16 Serial.print("Light raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.println(voltage); // higher = brighter

19 delay(300);

20}

📄 File: cjmcu-temt6000_an_ambient_light_sensor_(3)_-_stm32.inoSTM32

385 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin PA0 on STM32

6#define LIGHT_PIN PA0

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LIGHT_PIN);

14 float voltage = raw * 3.3 / 4095.0;

16 Serial.print("Light raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.println(voltage); // higher = brighter

19 delay(300);

20}

📄 File: cjmcu-temt6000_an_ambient_light_sensor_(3)_-_raspberry_pi_pico.inoRaspberry Pi Pico

395 characters

1//ekostra.com

2//electronics store in egypt

3//+201008896258

5// Analog pin 26 on Raspberry Pi Pico

6#define LIGHT_PIN 26

8void setup() {

9 Serial.begin(115200);

10}

12void loop() {

13 int raw = analogRead(LIGHT_PIN);

14 float voltage = raw * 3.3 / 4095.0;

16 Serial.print("Light raw: "); Serial.print(raw);

17 Serial.print(" Voltage: "); Serial.println(voltage); // higher = brighter

19 delay(300);

20}

Project Notes:

Analog ambient light sensor (phototransistor).

نظرة عامة ومواصفات المنتج — بالعربية

CJMCU-TEMT6000 An Ambient Light Sensor متوفر الآن في متجر إكوسترا للإلكترونيات، ضمن قسم Sensors، بسعر 115,00 EGP. كود المنتج لدينا: EK802. المنتج غير متوفر حالياً — تواصل معنا عبر واتساب لمعرفة موعد توفره القادم.

أهم المواصفات الفنية:

Product Name: CJMCU-TEMT6000 Ambient Light Sensor Module
Sensor Type: Ambient Light Sensor
Sensor Element: TEMT6000 Phototransistor
Light Measurement: Analog Output (Luminance Proportional)
Spectral Response: Visible Light (Human Eye Similar)
Operating Voltage: 3.3V – 5V
Output Type: Analog Voltage
Sensitivity: High Sensitivity

هذا المنتج مناسب لمشاريع الأردوينو (Arduino) و ESP32 و Raspberry Pi، ومشاريع الروبوتات وإنترنت الأشياء والتعليم الهندسي. جميع القطع مفحوصة قبل الشحن.

تصفّح المزيد من Sensors في إكوسترا.

Specification

WeightWeight	0,002 g
Dimensions	2 × 1,5 × 0,3 cm
Product Name	CJMCU-TEMT6000 Ambient Light Sensor Module
Sensor Type	Ambient Light Sensor
Sensor Element	TEMT6000 Phototransistor
Light Measurement	Analog Output (Luminance Proportional)
Spectral Response	Visible Light (Human Eye Similar)
Operating Voltage	3.3V – 5V
Output Type	Analog Voltage
Sensitivity	High Sensitivity
Response Time	Fast
Current Consumption	Low
PCB Type	CJMCU Module
Application	Light Detection, Brightness Control, IoT, Arduino Projects
